120mm 전자음 경보기
BK

BK 시리즈에는 32가지의 재생음이 내장되어 있으며, 소음이 심한 공장에서도 잘 들리는 스피커입니다.

  • 접점제어
  • □120
  • 전자음 경보기
  • 알람
  • 멜로디
  • 95dB이상
  • 실내
  • 실외
  • IP54
  • 120mm 전자음 경보기 BK
  • 다양한 용도에 사용할 수 있도록 본체에 32개의 사운드가 미리 녹음되어 있습니다.
  • 1m에서 최대 출력 레벨은 95dB로, 소음이 있는 공장에서 사용하기에 적합합니다.
  • 설치 후, 전면 패널의 안쪽에 위치한 회전식 스위치로 음량과 사운드 그룹을 쉽게 변경할 수 있습니다.
  • A에서 H중 하나의 사운드 그룹을 선택하여 미리 녹음된 8가지 사운드를 재생할 수 있습니다. (비트 입력 제어 시)
  • 옵션품인 SD 카드(별도 판매)를 사용하여 32개의 사운드에서 새로운 사운드 그룹을 만들 수 있습니다.
  • RoHS 규정을 준수합니다.
  • 기능 또는 음량을 테스트하려면 “ I ”부터 “ O ” 로 스위치를 설정합니다.
  • 비트 입력(8개 채널) 또는 바이너리 입력(32개 채널)로 재생할 수 있습니다.

※PATLITE Corporation은 일본 외에서 BK-A, C 및 D 유형으로 녹음된 일부 저작권이 있는 음악 또는 노래에 대한 사용 허가를 신청하지 않았습니다. 이 문제에 관한 추가적인 정보는 한국페트라이트에 문의하시기 바랍니다.





크기 - 정면 120mm 정사각형
- 후면 110mm 정사각형
정격 전압 - 12-24V DC
- 100V AC
- 220V AC
음원 종류 - 공장에서 사전 녹음된 경보음 및 멜로디
취부 형식 - 패널 취부, 수평, 수직 상향, 수직 하향
- 실내 전용
본체 색상 - 본체: 라이트 그레이
- 본체: 블랙
음압 - 최대 95dB (1m 기준)
- 볼륨 0부터 조절 가능
음원 - 총 32개 음원이 저장되어 있음 (사양서 참조)
- 8개의 음원 그룹중에서 선택 가능
- 각 그룹 별로 8개의 사전 등록된 음원이 있음
채널 선택 - 로터리 스위치로 8개 음원 그룹 중 하나를 선택
- 신호 입력으로 선택된 그룹 내 8개 음원 중 하나를 선택
- 본체에 저장된 사운드 중에서 마지막 사운드 그룹은 재프로그래밍 가능 (옵션품 SD카드 필요)
음색 일람표 - 사양서 내 BD-E 타입 부분에서 설치된 음원 전체 목록 확인 가능
- 상단의 "사운드 샘플" 링크에서 BD-E 타입 음원만 재생 가능
취득 인증 - CE
- RoHS
보호 등급 - IP54 (전면 수직 패널 취부만)
비고 - 무전압 접점 입력 (예: 스위치나 릴레이 접점)
- 오픈 컬렉터 트랜지스터 (NPN)
기능 - 접점 연결중에만 음원 재생
- 접점 미연결 시 재생 정지

(*)이 사이트의 데이터 다운로드 서비스는 다음 ""에 동의 한 것으로 간주됩니다.

(*)이 사이트의 데이터 다운로드 서비스는 다음 ""에 동의 한 것으로 간주됩니다.

BK  

BK  

보수 부품

구분 No. 품명 품번 수량 사양 교체 시기의 기준
슬롯 방수 커버
C25110015-F1 1

-

-

단자 커버
C15140004-F1 2

-

-

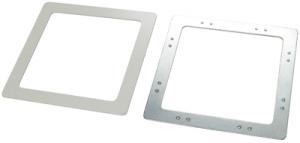

장착 브래킷 (2 개)
V82100001-F1 2

-

-
