MP3 파일 재생 보드

오디오 메시지는 최대 127개의 채널에 등록할 수 있습니다. 오디오 메시지 지원이 필요한 다양한 장비나 시설 내 설치에 적절하며, 현장 프로그래밍이 필요한 경우에도 적절합니다.

  • 접점제어

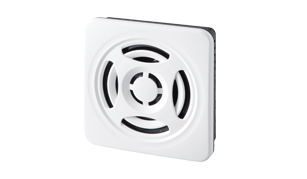

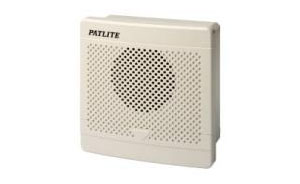

  • MP3 음성 합성 경보기
  • 음성합성
  • 105dB

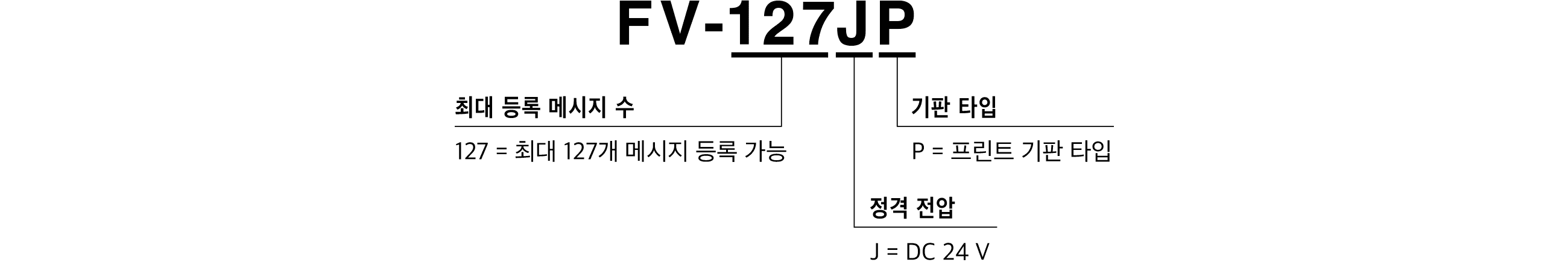

  • MP3 파일 재생 보드 FV-127JP
  • 고품질의 사운드와 긴 재생 시간
    • MP3 압축 오디오 파일 형식으로 긴 재생 시간과 고품질의 사운드 출력이 가능합니다.
    • 약 8분 길이의 오디오 메시지 데이터를 내장 메모리에 저장할 수 있습니다.
    • SD 카드를 사용할 경우, 240분의 긴 재생이 가능합니다. (2GB SD카드로 64kbits/s의 MP3 데이터)

  • 오디오 메시지 추출 및 덮어쓰기
    • 오디오 메시지는 플레이리스트에디터(포함됨)와 옵션품인 SD 카드로 다시 프로그래밍하여 쉽게 덮어쓸 수 있습니다. 또한, 본체에 저장된 오디오 메시지 데이터는 SD 카드로 추출할 수 있습니다.

  • 3단계 음량 감음 기능
    • 외부 신호 입력으로 음량을 3단계로 줄일 수 있습니다. (1m에서 -10dB, -20dB, -30dB)

  • 다양한 재생 모드
    • 다섯 가지 재생 모드를 사용할 수 있습니다.

  • 높은 신뢰성의 작동
    • 입력 로딩 시간을 선택할 수 있습니다. (10 또는 50msec)
    • 입력 로딩 시간을 연장하여 내잡음성을 높일 수 있습니다.
    • 소음 대책 핀 설정으로 사용 환경에 따라 소음에 대한 조치를 취할 수 있습니다.

  • 그 외 특징
    • 터미널 블록으로 안전하고 안정적인 배선 연결이 가능합니다.
    • 스피커 출력(2W 또는 4W 선택 가능), AUX 출력 및 BUSY 출력이 탑재되어 있습니다.
    • 정격 전압: DC 24V (작동 전압 범위: DC 19 ~ 29V)


정격 전압 - 24V DC
음원 종류 - MP3
음원 - 음원 패턴 : 480초 내 127개 메시지
채널 선택 - 딥 스위치 설정으로 바이너리 입력 모드 선택 가능
취득 인증 - RoHS
- Fraunhofer IIS와 Thompson Licensing으로부터 라이선스 받은 MPEG Layer-3 오디오 코딩 기술
옵션 - SPL-5E
