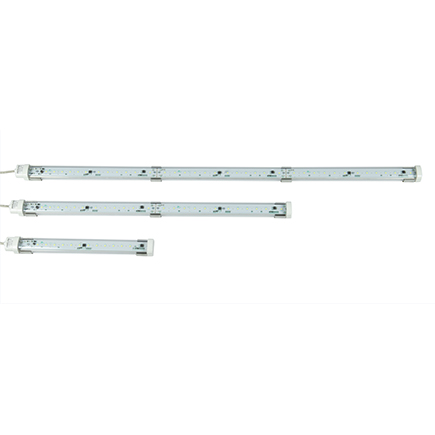

LED Light Bar
저렴한 비용으로 교체가 가능한 슬림 LED Light Bar는 기존의 형광등보다 성능이 뛰어납니다. IP65 보호등급은 대부분의 환경에서 설치가 가능합니다.
- LED 조명
- DC 24V
- 내구성이 강한 LED로 유지 보수 비용 절감

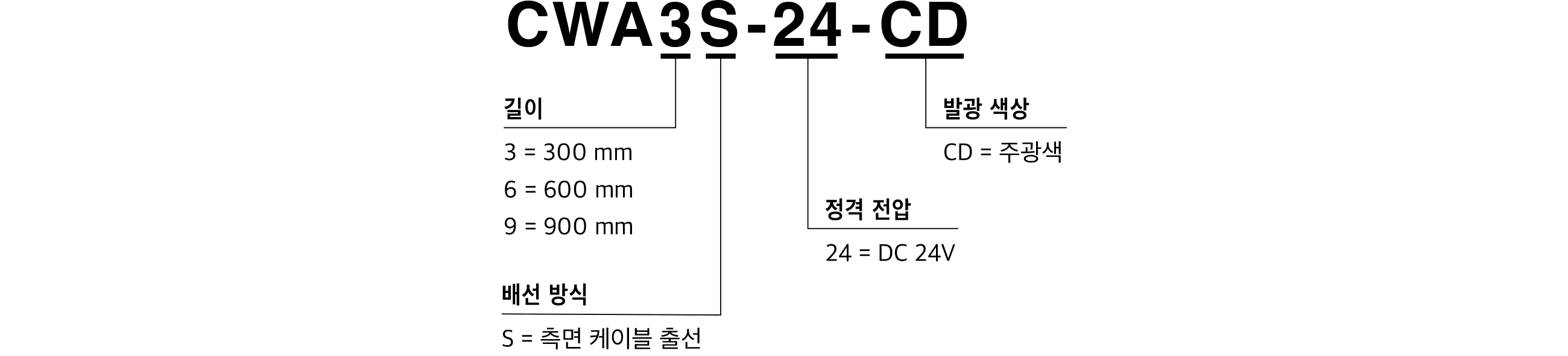

- 총광속 385lm, 1m거리에서 110lx (DC 24V)［CWA3-24-CD］
- 2개의 스테인리스 스틸 장착 브래킷이 표준 액세서리
- 사용 온도 범위 -30 ~ +60℃
- LED 색온도 6500K
취급 설명서/사양/외관 치수
