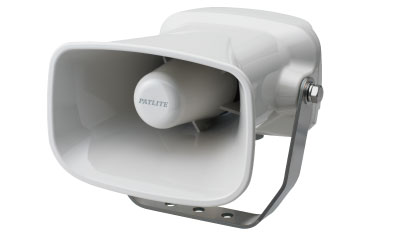

Horn형 MP3 재생 경보기

63개 재생음이 내장된 Horn MP3 음성 합성 경보기입니다.

  • 접점제어
  • MP3 음성 합성 경보기
  • 알람
  • 멜로디
  • 음성합성
  • 110dB
  • 실내
  • 실외
  • IP65(똑바로)
  • Horn형 MP3 재생 경보기 EHV
  • 이전 제품(EWH:단종)에 비해 크기가 30% 감소하여 보다 콤팩트한 디자인으로 설계됨
  • 최대 4.5G의 힘을 견딜 수 있는 강한 진동 저항성을 가지고 있음
  • 작은 사이즈임에도 불구하고 최대 110dB(1m)의 큰소리를 냄
  • 케이블 연결 방식과 터미널 연결 방식 사이에서 선택할 수 있음
  • 재생 모드는 적합한 애플리케이션에 맞게 설정할 수 있는 일반 재생, 입력 우선순위 재생, 보류 재생, 메모리 재생의 4가지의 모드가 있음. 명령 모드: 사운드 감소;공장; 확성 장치; 비트/바이너리; 강제 재생; 그룹 선택 터미널 할당 모드: 재생; 정지; 클리어; 사운드 감소
  • PNP 또는 NPN 트랜지스터 구동 입력과 함께 사용할 수 있음
  • 이 제품은 RoHS 지침을 준수함
  • IP65 보호 등급(자세한 내용은 매뉴얼 참조)
  • SD카드 사용으로 현장에 나가있는 동안에 바로 메시지를 변경할 수 있음
  • UL 규격 취득 완료
  • CE 인증 취득 완료(DC 유형)

(*)이 사이트의 데이터 다운로드 서비스는 다음 ""에 동의 한 것으로 간주됩니다.

(*)이 사이트의 데이터 다운로드 서비스는 다음 ""에 동의 한 것으로 간주됩니다.



보수 부품

구분 No. 품명 품번 수량 사양 교체 시기의 기준

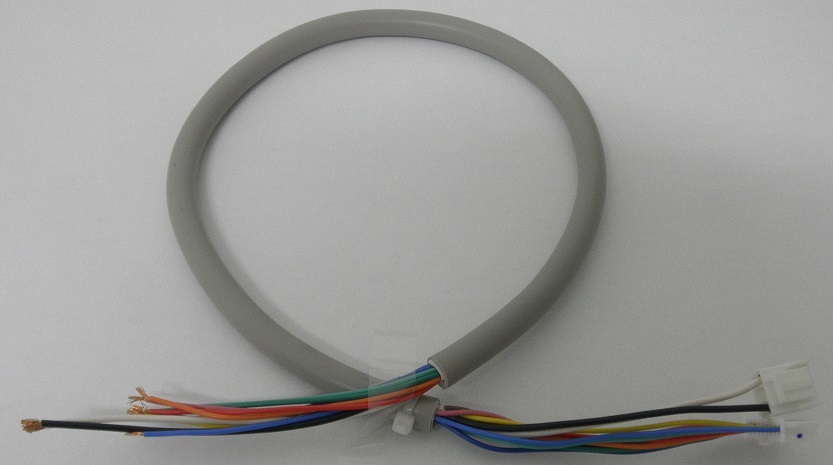

																캡 타이어 코드
V13100076-F1 1

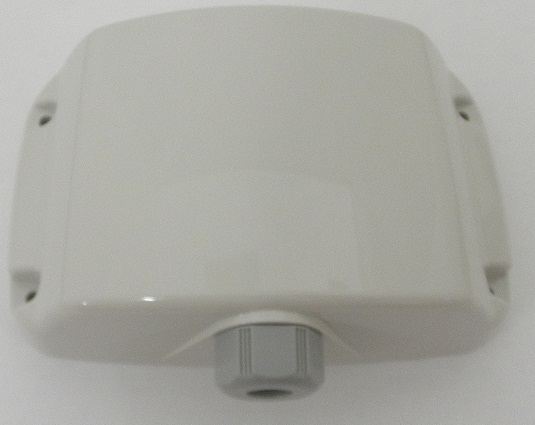

V21100522-F1 1

플랫 스프링 와셔가 있는 팬 헤드 기계 나사 4 × 14 포함.
