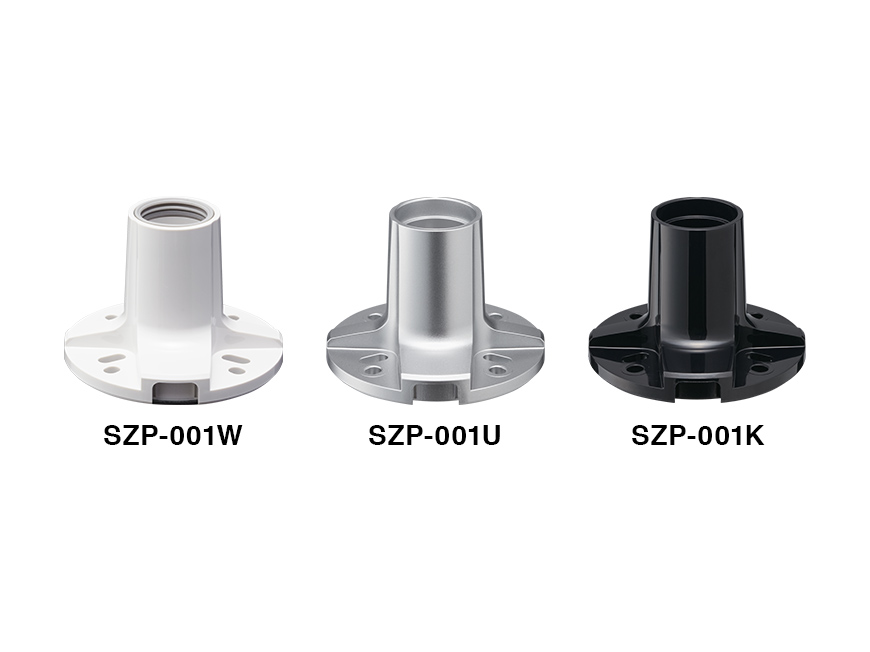

원형 멀티 피치 브래킷
전체 LR 시리즈용 원형 멀티 피치 브래킷. POLE22-N와 호환됨
|장착 장소||실내 전용|
|보호 등급||IP65(제품이 부착된 상태)|
●폴 방수 링
●바인딩 헤드 탭핑 나사(2개)
|비고||RoHS 지침의 기준을 초과하는 규제 물질이 함유되어 있지 않습니다.|
케이블을 측면에서 꺼낼 수 있습니다.
취급 설명서/사양/외관 치수
(*)이 사이트의 데이터 다운로드 서비스는 다음 ""에 동의 한 것으로 간주됩니다.
(*)이 사이트의 데이터 다운로드 서비스는 다음 ""에 동의 한 것으로 간주됩니다.
2D CAD / 3D CAD
