Manual Control Signal Tower(LR5)

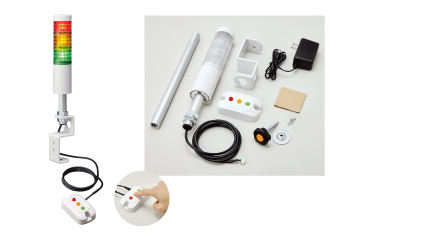

HSST 키트는 차세대 LR5 LED 시그널타워를 수동으로 제어하기 위한 합리적인 비용의 턴키 솔루션입니다. 이 키트에는 3단 LR5, 2 가지 길이의 폴, 제어 박스, 브래킷, AC 어댑터가 들어 있습니다. 수동 조립 작업용으로 적합합니다.

  • 시그널 타워
  • Φ50
  • 점등
  • 실내
  • IP54(신호견인:똑바로)
  • IP20(스위치박스)
  • 적색
  • 황색
  • 녹색

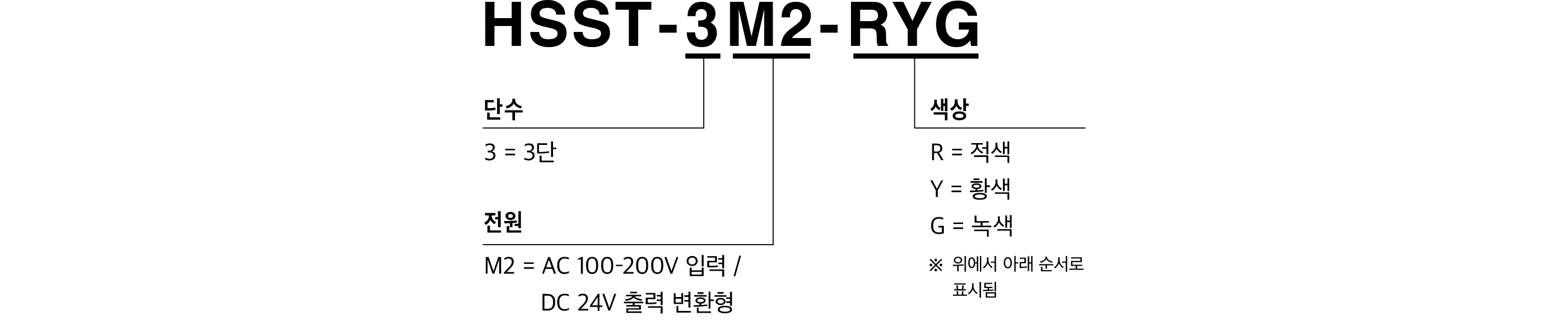

  • Manual Control Signal Tower(LR5) HSST-3M2

유지보수가 필요 없고 장착용 나사가 있는 LED 조명 3 버튼 스위치 박스. 5 피트 길이 케이블이 있는 AC 전원 어댑터(100-240VAC). 키트에는 4피트 길이 케이블이 있는 3단 50mm 직경 LED 신호 타워, 표준 칸막이 파티션에 맞는 장착 브래킷, 스위치 박스 및 AC 전원 어댑터가 들어 있습니다. LED 색상: 빨간색, 노란색, 녹색. 특장점


Dimensions - Φ50mm x 307 (short pole)
- Φ50mm x 507 (long pole)
Rated Voltage - 100-240VAC
Body Color Off-white
Functions - Continuous Lighting
- Manual Control
Mounting - Bracket-clamp Mount
- Wall Mount
- Cubicle-edge Mount
Stackable Tiers - Available only as a three-tier tower
Module Colors - LED Color: Add (Only Red/Amber/Green are available)
- Lens Color: Clear (Shows color when activated)
Conformity Standards - RoHS
- UL48
-*EN61000-6-4, EN61000-6-2 EN61000-3-2, EN61000-3-3
Protection Rating - IP20 (Switch Box)
- IP54 (Signal Tower)

(*)이 사이트의 데이터 다운로드 서비스는 다음 ""에 동의 한 것으로 간주됩니다.

(*)이 사이트의 데이터 다운로드 서비스는 다음 ""에 동의 한 것으로 간주됩니다.



보수 부품

구분 No. 품명 품번 수량 사양 교체 시기의 기준

																헤드 커버: 오프 화이트 색상
B32310071-7F1 1

																LED 유닛 : 적색 (클리어 렌즈 타입)
B72100248-1F1 1

LED 유닛 및 O-링 세트

																LED 유닛 : 황색 (클리어 렌즈 타입)
B72100248-2F1 1

LED 유닛 및 O-링 세트

																LED 유닛 : 녹색 (클리어 렌즈 타입)
B72100248-3F1 1

LED 유닛 및 O-링 세트

																차광 시트 (5 장)
B25310067-5F1 3

1세트당 5개가 포함되어 있습니다.

																O-링 (5 개)
B25110066-F1 5

1세트당 5개가 포함되어 있습니다

																Pole용 브래킷: 오프 화이트 색상
B22210160-7F1 1

O- 링, Pole 방수 링 및 바인드 태핑 스크류 (2개)로 구성

																명 Pole 방수 링
B25110047-F1 1

																스위치 박스 조립품
T16000002-F2 1

																 양면 접착 테이프 (5 개)
B96110002-F1 1

1세트당 5개가 포함되어 있습니다

T85130016-F1 1

																명 부속 조립품
T81800030-F1 1

제품 본체에 부속되어 있는 부속 조립품.
고정 나사, 고정 쇠장식, 양면 테이프, 태핑 나사 (3× 18)(2 개)
