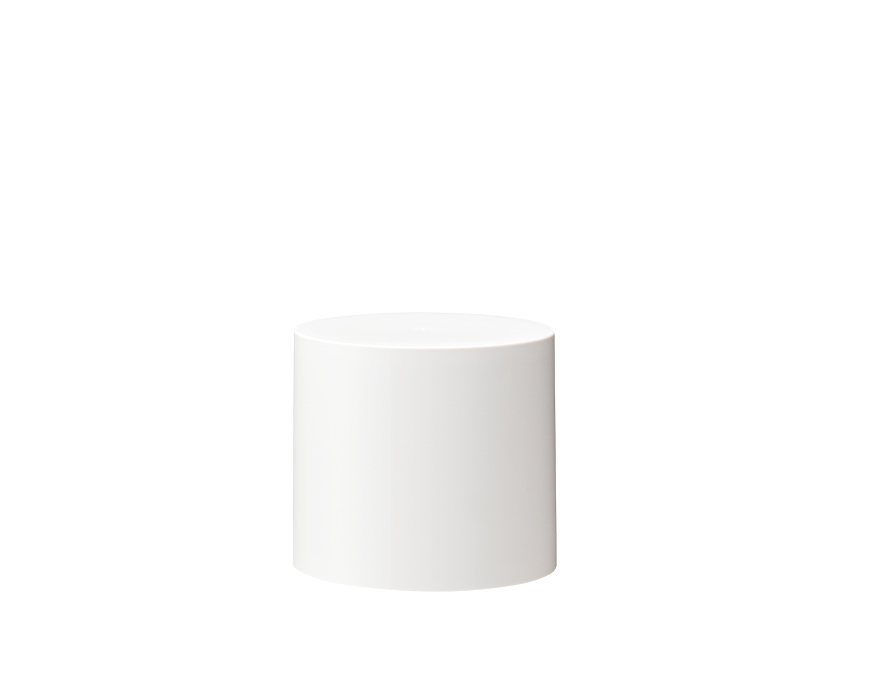

Audible Alarm Unit for LR6 Series (Signal line 2 sound control specifications)

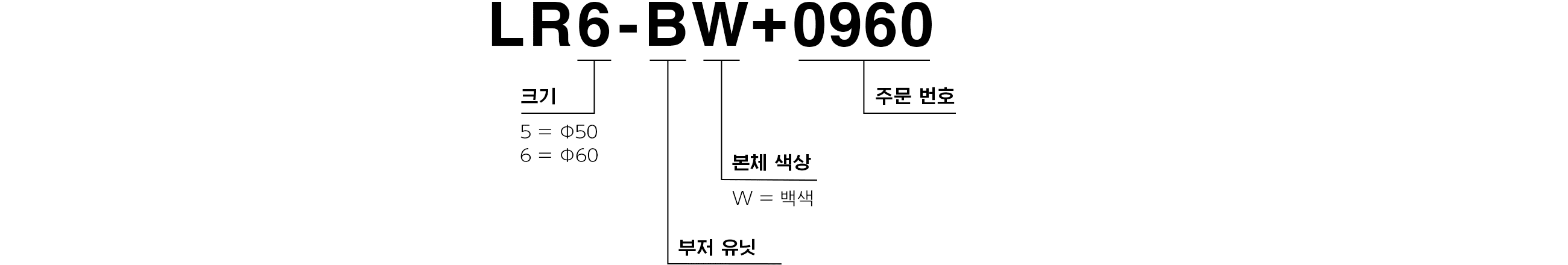

LR6-BW+B0960
Audible Alarm Unit for LR6 Series (Signal line 2 sound control specifications)

제품 특징


LR Unit




LR_spec



■Buzzer Sound / Typical Frequency



Buzzer Sound /
Typical Frequency

※Depending
on DIP Switch
Buzzer Input 1Buzzer Input 2Buzzer Input 1+2
No.1Rapid intermittent beep 1
3378Hz
Rapid intermittent beep 2
3378Hz
Rapid intermittent beep 1
3378Hz
No.2Continuous beep sound
3378Hz
Rapid intermittent beep 1
3378Hz
Rapid Hi-Lo
2016Hz&3012Hz
No.3Rapid Hi-Lo
2016Hz&3012Hz
Rapid intermittent beep 1
3378Hz
Sweep sound
1000Hz-4032Hz
No.4Sweep sound
1000Hz-4032Hz
Rapid intermittent beep 1
3378Hz
Rapid intermittent beep 2
3378Hz
