무선 데이터 수집 시스템 WD PRO 수신기
WDR-LE-Z2-PRO

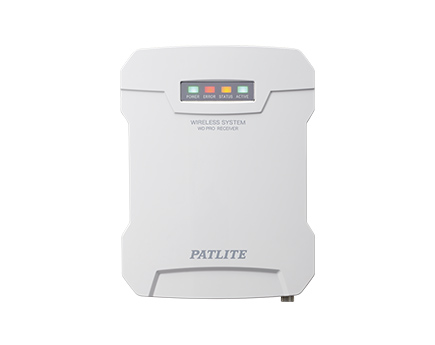

WDR-LE-Z2-PRO (WD PRO 수신기)는 PATLITE 무선 데이터 수집 시스템의 일부입니다. 이 무선 데이터 수집 시스템을 활용하여 연결된 시그널 타워의 LED 유닛 (및 부저) 상태를 무선으로 실시간 수집 가능하며 이를 CSV 파일로 출력, 분석하여 OEE 및 생산성을 향상시킬 수 있습니다. WD PRO 수신기는 이전 수신기의 향상된 버전으로 다양한 프로토콜을 지원하여 작업 현장의 호스트 시스템 및 기타 장치와 쉽게 통신할 수 있습니다.

  • 무선 제품
  • 무선 (Zigbee)
  • 실내
  • IP20
  • 무선 데이터 수집 시스템 WD PRO 수신기 WDR-LE-Z2-PRO
  • PoE 기능
    WD PRO 수신기는 단일 이더넷 케이블을 통해 전원 공급 및 데이터 통신이 가능하여, 배선 공간 및 비용을 최소화할 수 있습니다.
  • 마운트 브래킷
    WD PRO 수신기의 배면부가 브래킷 구조로 되어 있어 쉽게 탈⋅부착할 수 있으며,
    다양한 각도로 취부 가능합니다.
  • 무선 연결 진단
    WD PRO 수신기는 수신기와 연결된 송신기 간의 무선 연결 품질을 추적할 수 있습니다.
    10 분 간격으로 최대 72 시간의 진단 결과를 수집할 수 있습니다.
    5 단계의 진단 결과가 있어 사용자가 설치 환경 수정이 필요한 시기를 확인할 수 있습니다.
    수집된 데이터는 설정 브라우저를 통해 컴퓨터에서 쉽게 볼 수 있습니다.
  • 안돈 시스템
    연결된 모든 시그널 타워의 실시간 점등 및 부저 상태를 컴퓨터 화면에서 표시할 수 있습니다. 이는 CSV 데이터 수집과 동시에 수행할 수 있습니다.
  • 협업 기능
    WD PRO 수신기는 간단한 SOCKET 프로토콜 외에도 Modbus / TCP 및 SQL 데이터베이스를 사용하는 협업 기능이 있습니다. 이러한 프로토콜은 네트워크에 있는 장치 간의 통신 및 데이터 수집을 단순화합니다.



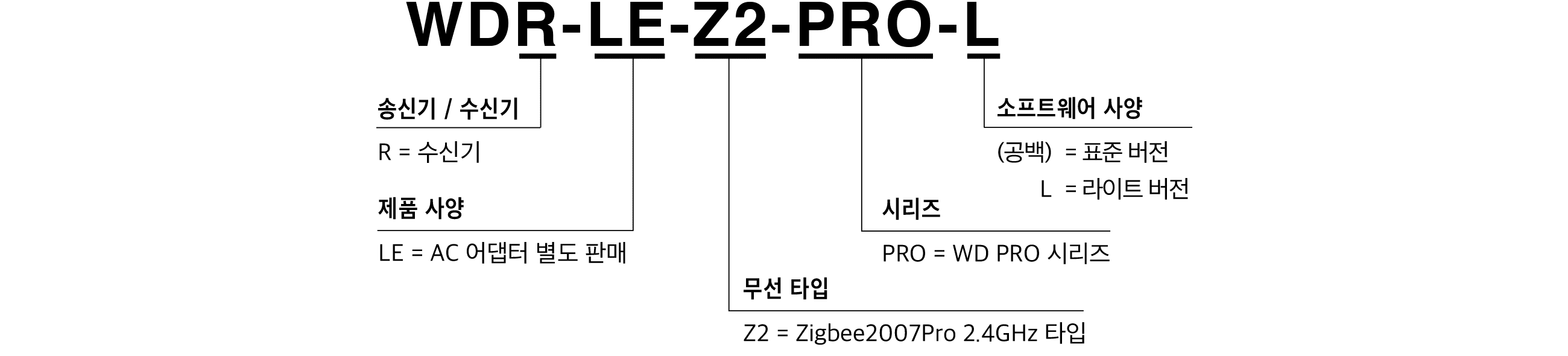

사양

모델 무선 데이터 수집 시스템
WD PRO 수신기
WDR-LE-Z2-PRO
무선 데이터 수집 시스템
WD PRO 수신기〈Lite version〉
WDR-LE-Z2-PRO-L
정격 전압 및 전원 입력 방식 DC 24V / USB / PoE
취부 방법 수평 / 벽 / 천장
네트워크 통신 방법 10BASE-T 트위스트 페어 이더넷 / 100BASE-TX- CAT5 케이블 / 1000BASE-T- CAT5
접속 가능한 송신기 수 최대 30 대
무선 통신 거리 예상, 약 30m * 1
IP 주소 설정 수동 설정 / DHCP 자동 설정
작동 온도 범위 -10℃ ~ +50℃ (AC 어댑터 사용 시 : 0℃ ~ +40℃)
보호 등급 IP20
무선 통신 품질 진단 실시간 진단 / 최대 72시간 연속 진단
송신기 무선 설정 제품 내장 (브라우저 기능) / WDS-WIN01 소프트웨어 WDS-WIN01 사용
호스트 시스템 통신 ・CSV 파일 * WDS-WIN01 사용・SOCKET 통신
 (WDR 프로토콜)・SOCKET 통신
 (WDR PRO 프로토콜)・데이터베이스 연동 (MySQL)・Modbus / TCP 통신
WD-PRO ・CSV 파일 * WDS-WIN01 사용・ SOCKET 통신
 (WDR 프로토콜)
안돈 시스템 ×

※1 이는 참고 값입니다. 실제 값은 전파 속성으로 인해 변경될 수 있습니다.
