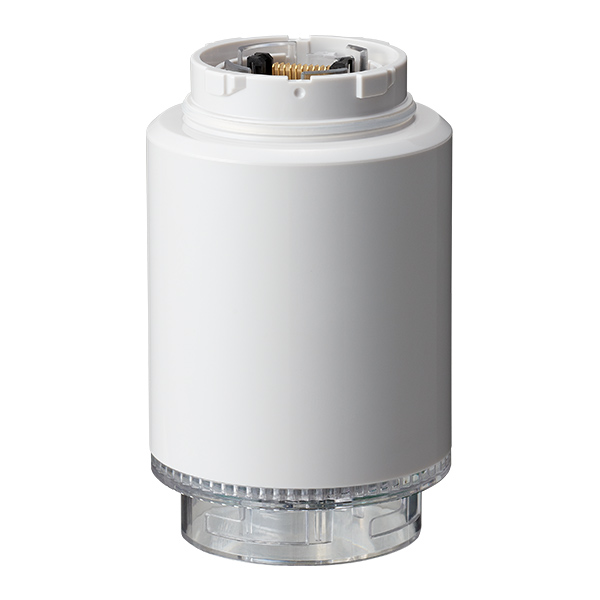

무선 데이터 수집 시스템 LR4 송신기
무선 데이터를 전송할 수 있도록 해주는 LR4 시그널타워용 송신기 부착 장치.
- 무선 제품
- 실내 (똑바로)
|정격 전압||- DC 24V|
|프로토콜||- 통신 프로토콜 : IEEE-802.15.4 (무선 통신)|
|기능||- 연결 모델: LR4 LED 시그널 타워 본체 유닛 상단 취부|
- 통신 주파수 : 2405MHz-2480MHz (16 채널)
- 통신 거리 : 소스로부터 약 30m (참고 값)
- 사용 가능한 연락처 수: 6 점 (적색, 황색, 녹색, 청색, 백색, 부저)
|규정||- 전파법 승인 국가: 일본 (ARIB STD-T66)|
