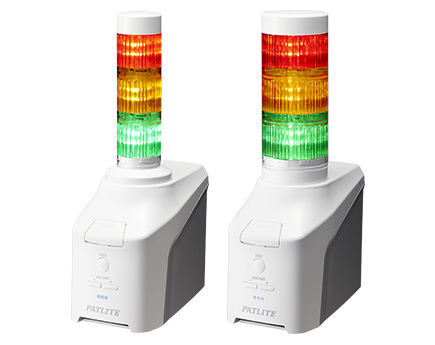

特長
【소프트웨어】
- 다양한 네트워크 프로토콜을 지원합니다.
네트워크 기기나 시스템 등의 알림이나 이상 발생을 빛과 소리로 즉시 알려 드립니다. - HTTPS, SNMPv3, SSH 등 보안 프로토콜을 지원하기 때문에 안심하고 안전하게 통신할 수 있습니다.
- 본 기기는 텍스트 데이터를 음성으로 변환하는 "텍스트 음성 변환(TTS)" 기능을 갖추고 있습니다.
텍스트 데이터를 음성으로 변환하여 등록할 수 있으며, 커맨드 제어를 통해 실시간으로 음성 알림을 수행할 수 있습니다. - Ping 모니터링에 의한 연결 상태 확인을 포함하여 SNMP 디바이스 모니터링 기능을 갖추고 있습니다.
네트워크 기기의 MIB 정보를 능동적으로 획득하고 설정된 조건과 부합하면 관리자에게 즉시 빛과 소리로 알립니다. - 메일 수신을 알려주는 메일 수신 감지 기능을 갖추고 있습니다. (NHV-M 모델만 해당)
NHV-M 모델은 설정한 조건에 부합하는 메일을 수신했을 때, LED를 점등하거나 음성 메시지로 즉시 알려줍니다.
【하드웨어】
- 음성 알림이 가능합니다.
미리 설정해 둔 메시지와 입력 설정을 조합하여 자세한 정보를 전달할 수 있습니다. - PA 시스템, 앰프 또는 외부 스피커와 같은 방송 장비에 연결할 수 있는 LINE OUT 단자를 사용하여 건물 전체에 방송하는 것도 가능합니다.
- 디지털 입력 4점 및 디지털 출력 2점이 탑재되어 있습니다. (NHV-D/NHV-DP만 해당)
- PoE 전원 공급을 지원합니다. (NHV-DP만 해당)
【모델 특징】
NHV |
(기본 모델) |
: |
NHV 시리즈의 기본 모델 시리즈 중에서 가장 심플한 모델이지만, 뛰어난 기본 기능을 가지고 있습니다. |
NHV-D |
(D 모델) |
: |
디지털 입력 4점 및 디지털 출력 2점을 갖춘 모델 다양한 디지털 기기와 쉽게 연결할 수 있습니다. |
NHV-DP |
(DP 모델) |
: |
NHV-D 에 PoE 전원 공급 기능이 추가된 모델 PoE 스위치를 사용하면 간단한 배선 작업만으로도 설치가 가능합니다. (IEEE802.3at 준거) |
NHV-M |
(M 모델) |
: |
기본 모델에 이메일 감지 기능이 탑재된 모델 중요 메일 수신 시 빛과 소리, 음성으로 알려줌으로써 누락을 방지합니다. |
모델 | NHV | NHV-D | NHV-DP | NHV-M |
감광 기능 | 〇 | 〇 | 〇 | 〇 |
클라우드 제어 | 〇 | 〇 | 〇 | 〇 |
HTTP 커맨드 송신 | 〇 | 〇 | 〇 | 〇 |
음성 재생(MP3) | 〇 | 〇 | 〇 | 〇 |
TTS(텍스트 음성 변환) | 〇 | 〇 | 〇 | 〇 |
디지털 I/O(4점 입력/2점 출력) | - | 〇 | 〇 | - |
PoE 전원 ※IEEE802.3at 준거 | - | - | 〇 | - |
메일 감지 기능 | - | - | - | 〇 |
【다양한 설치 방법들】
옵션품으로 「벽면 취부 브래킷」도 있습니다.

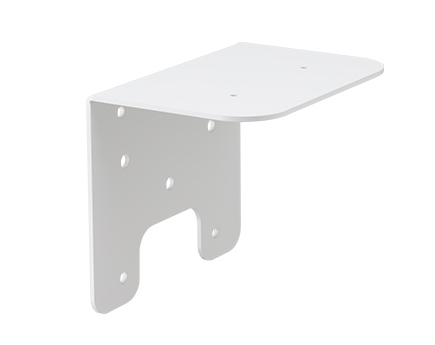

벽면 취부 브래킷 :NH-001

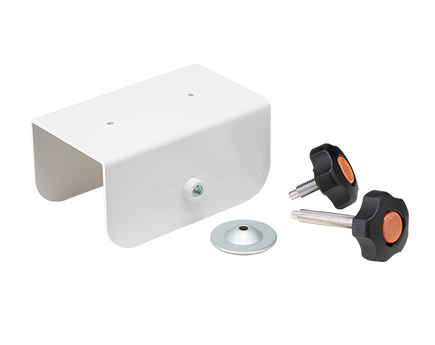

파티션 취부 브래킷:NH-002

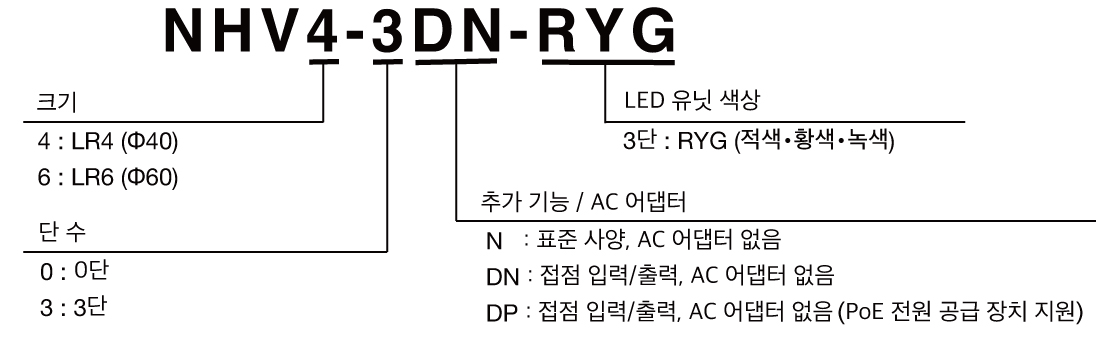

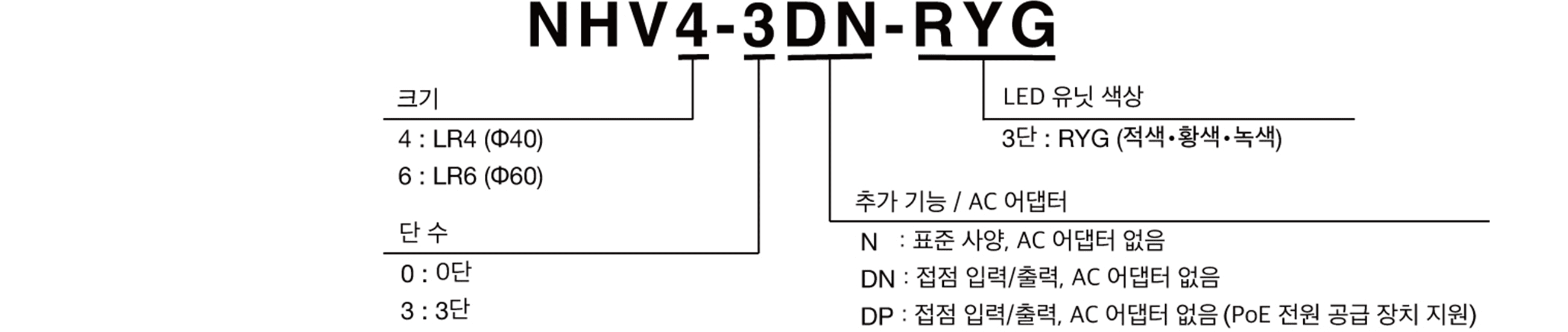

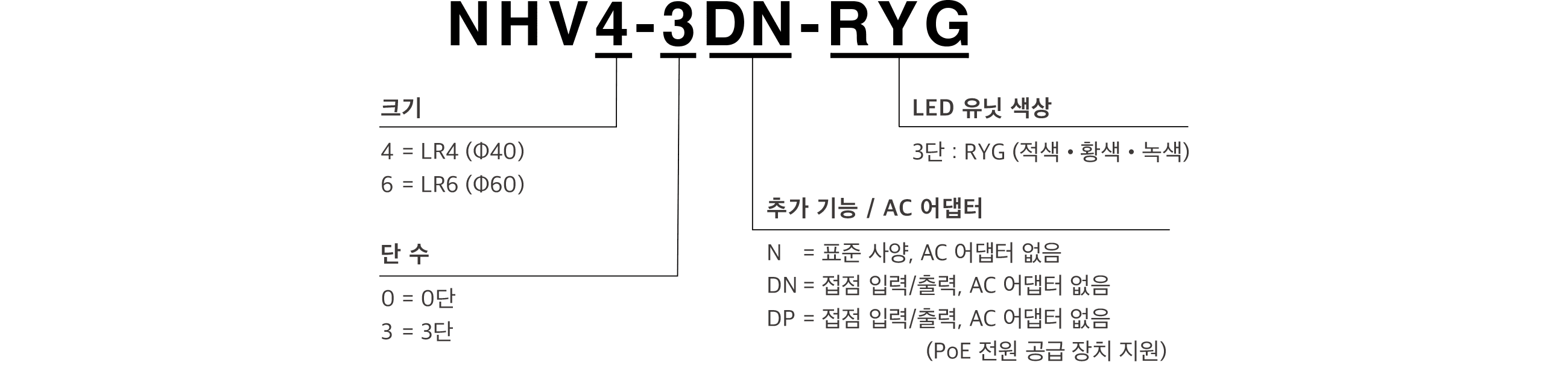

모델 번호 구성
취급 설명서/사양/외관 치수
(*)이 사이트의 데이터 다운로드 서비스는 다음 ""에 동의 한 것으로 간주됩니다.
파일 다운로드
(*)이 사이트의 데이터 다운로드 서비스는 다음 ""에 동의 한 것으로 간주됩니다.
2D CAD / 3D CAD
-
2D_CAD[dxf]_NHV4
-
2D_CAD[dxf]_NHV6
-
3D_CAD[IGS]_NHV4(0~5-tier_Contact input/output)
-
3D_CAD[IGS]_NHV4(0~5-tier_No contact input/output)
-
3D_CAD[IGS]_NHV6(0~5-tier_Contact input/output)
-
3D_CAD[IGS]_NHV6(0~5-tier_No contact input/output)
-
3D_CAD[STEP]_NHV4(0~5-tier_Contact input/output)
-
3D_CAD[STEP]_NHV4(0~5-tier_No contact input/output)
-
3D_CAD[STEP]_NHV6(0~5-tier_Contact input/output)
-
3D_CAD[STEP]_NHV6(0~5-tier_No contact input/output)
-
3D_CAD[x_t]]_NHV4(0~5-tier_Contact input/output)
-
3D_CAD[x_t]]_NHV6(0~5-tier_Contact input/output)
-
3D_CAD[x_t]_NHV4(0~5-tier_No contact input/output)
-
3D_CAD[x_t]_NHV6(0~5-tier_No contact input/output)
제품 사양
