Φ60mm 프로그래머블 멀티컬러 시그널 타워
LA6

기존의 적층식 조명을 대체하도록 설계된 최초의 프로그래밍이 가능한 시그널 타워입니다. 60mm LA6의 기능인 21가지 색상, 11가지 알람 및 필드 프로그래밍 인터페이스 모두 하나의 제품 안에 구성되어 있습니다.

  • 접점제어
  • 시그널 타워
  • Φ60
  • 점등
  • 플래시
  • 펄스
  • 알람
  • 85dB
  • 실내
  • IP65(DC24V,알람없음)
  • IP54
  • 멀티컬러

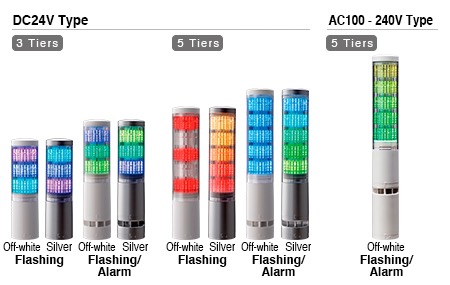

  • Φ60mm  프로그래머블 멀티컬러 시그널 타워 LA6
  • 빠르고 쉬운 구성을 위한 WEB 인터페이스를 보유하고 있습니다.
  • 점등, 플래시, 펄스로 조명 패턴을 다양하게 설정할 수 있습니다.
  • DC 24V 및 AC 100-240V (M2타입) 로 제공합니다.
  • 무료 프로그래밍 소프트웨어를 다운로드하려면 여기를 클릭하십시오.



사양

치수 Φ60mm
정격 전압 24V DC
100-240V AC (WJ 타입 전용)
기능 세 가지 다른 디스플레이 모드로 작동:
단일 디스플레이
시간 트리거 디스플레이
펄스 트리거 디스플레이
장착 직접 장착 (TN, WJ 타입)
강철 폴 장착 (LJ 타입)
바디 색상 오프 화이트
실버
바디 스타일 TN : 나사없는 단자
LJ : 케이블 연결 폴
WJ : 케이블 연결 직접 장착
스택 가능한 단 3 단
5 단
모듈 색상 21 멀티컬러
알람 스타일 11가지 알람 사운드
준수 표준 EMC 지침
RoHS 지침
UL 508
FCC
KC
보호 등급 IP65
IP54 (알람 포함)
비고 무료 다운로드 가능한 응용 소프트웨어
UL 인정 부품 (24V 타입 전용)



영화

독점적인 LA6 웹페이지에서 무료 소프트웨어를 다운로드하려면 여기를 클릭하세요!

(*)이 사이트의 데이터 다운로드 서비스는 다음 ""에 동의 한 것으로 간주됩니다.

(*)이 사이트의 데이터 다운로드 서비스는 다음 ""에 동의 한 것으로 간주됩니다.

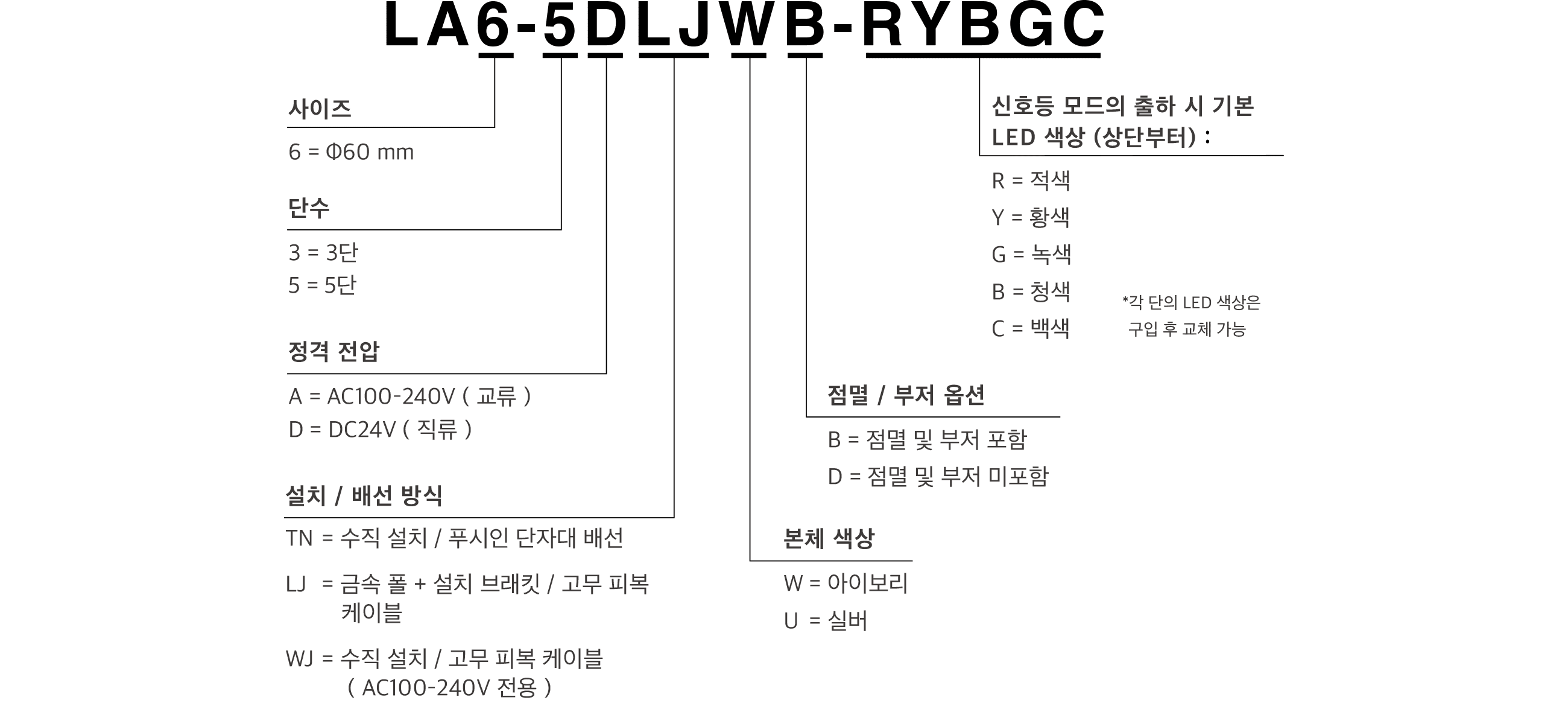

LA6-□DLJW□(스틸 폴 & L브래킷 / 케이블 포함)    

LA6-□DLJW□(스틸 폴 & L브래킷 / 케이블 포함)    

보수 부품

구분 No. 품명 품번 수량 사양 교체 시기의 기준

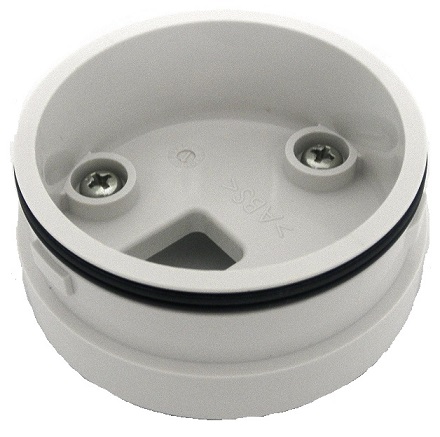

																직접 장착 브래킷 오프 화이트 색상
B22202027-7F1 1

																헤드 커버: 오프 화이트 색상
B31310001-7F1 1

																USB 커버: 오프 화이트 색상
B22100071-7F1 1

																방수 패킹 (2 개입)
B25110042-F1 1

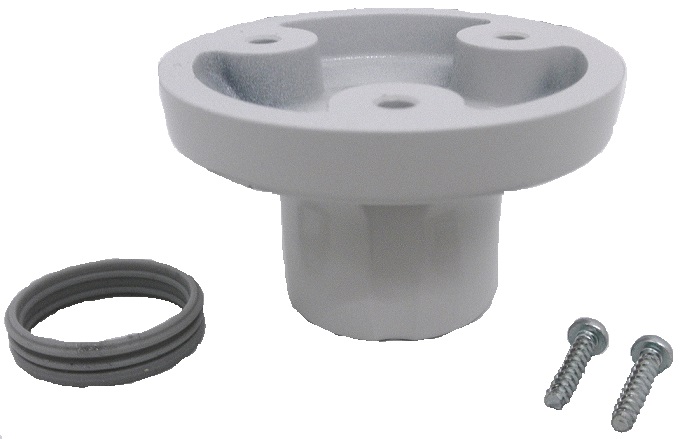

																Pole용 브래킷 O-링 포함 오프 화이트 색상
B22210134-7F1 1

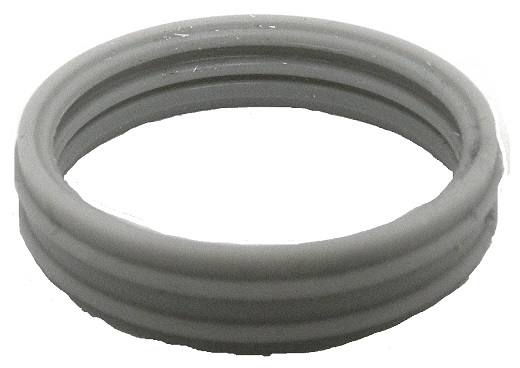

																명 Pole 방수 링
B25110047-F1 1

																육각 너트 : M22
S33533110-222F1 2

																평 와셔 : M22
S33642010-222F1 2
LA6-□□WJW□(Direct mount with cable connection직접 취부, 케이블)  

LA6-□□WJW□(Direct mount with cable connection직접 취부, 케이블)  

보수 부품

구분 No. 품명 품번 수량 사양 교체 시기의 기준

																헤드 커버: 오프 화이트 색상
B31310001-7F1 1

																USB 커버: 오프 화이트 색상
B22100071-7F1 1

																방수 패킹 (2 개입)
B25110042-F1 1

																직접 장착 브래킷 오프 화이트 색상
B22202027-7F1 1
LA6-□DTNW□(직접 취부, 단자대)  

LA6-□DTNW□(직접 취부, 단자대)  

보수 부품

구분 No. 품명 품번 수량 사양 교체 시기의 기준

																헤드 커버: 오프 화이트 색상
B31310001-7F1 1

																USB 커버: 오프 화이트 색상
B22100071-7F1 1

																방수 패킹 (2 개입)
B25110042-F1 1

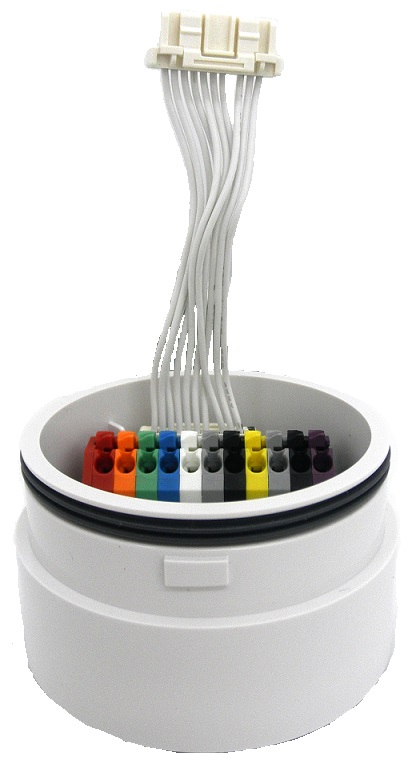

																단자대 브래킷: 오프 화이트 색상
B22202028-7F1 1
LA6-□DTNU□(직접 취부, 단자대)  

LA6-□DTNU□(직접 취부, 단자대)  

보수 부품

구분 No. 품명 품번 수량 사양 교체 시기의 기준

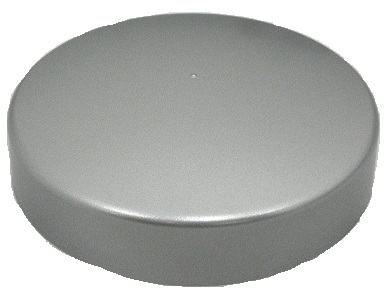

																헤드 커버: 은색
B31310001-9F1 1

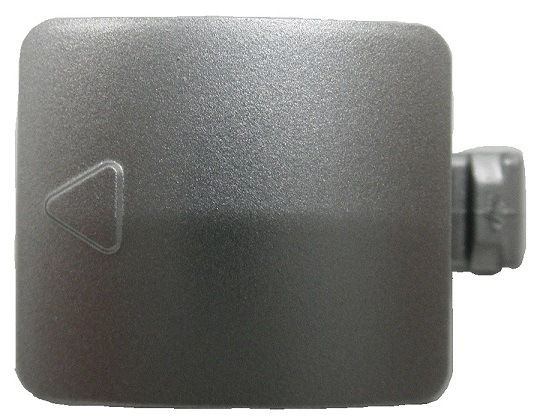

																USB 커버: 은색
B22100071-9F1 1

																방수 패킹 (2 개입)
B25110042-F1 1

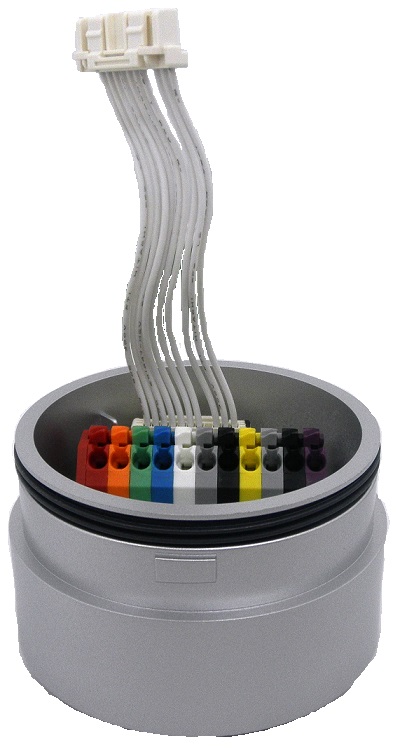

																단자대 브래킷: 은색
B22202028-9F1 1
