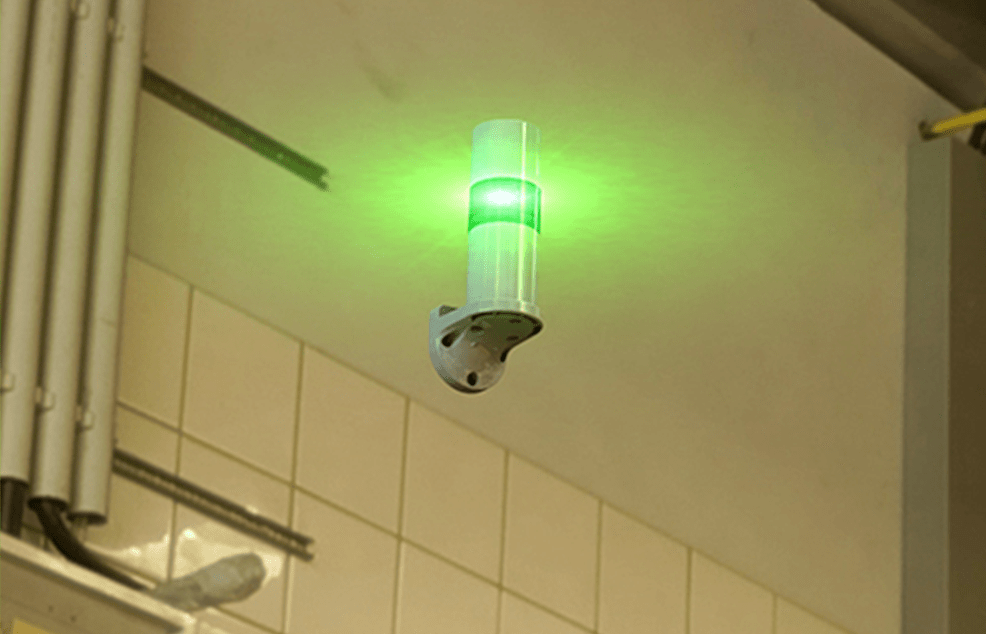

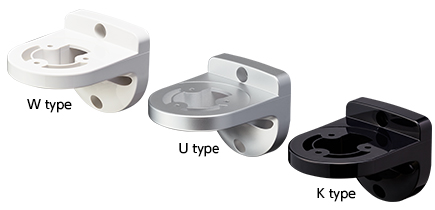

LR6, LR7 시리즈용 월 마운트 브래킷
직접 장착 시그널타워용 LR6 (60mm) 및 LR7 (70mm) 호환 월 마운트 브래킷.
- 실내, 똑바로
|장착 장소||실내 전용|
|보호 등급||IP65(제품이 부착된 상태)|
|비고||RoHS 지침의 기준을 초과하는 규제 물질이 함유되어 있지 않습니다.|
