LR5, LR7용으로 단자가 달린 직접 장착 베이스 유닛
LR5/LR7 Screwless Terminal

탈착식 나사 없는 단자가 장착된 LR5(50mm) 및 LR7(70mm) 호환 직접 장착 베이스 유닛.

  • 연락처제어
  • 시그널 타워
  • Φ50
  • Φ70
  • 점등
  • 점멸
  • 알람
  • 75dB
  • 80db
  • 85dB
  • 90dB
  • 실내 (똑바로 만)
  • IP65
  • 적색
  • 황색
  • 녹색
  • 청색
  • 백색
  • LR5, LR7용으로 단자가 달린 직접 장착 베이스 유닛 LR5/LR7 Screwless Terminal
  • 다양한 고객을 위해 신호 타워를 사용자 정의해야 하는 비즈니스에 이상적입니다.

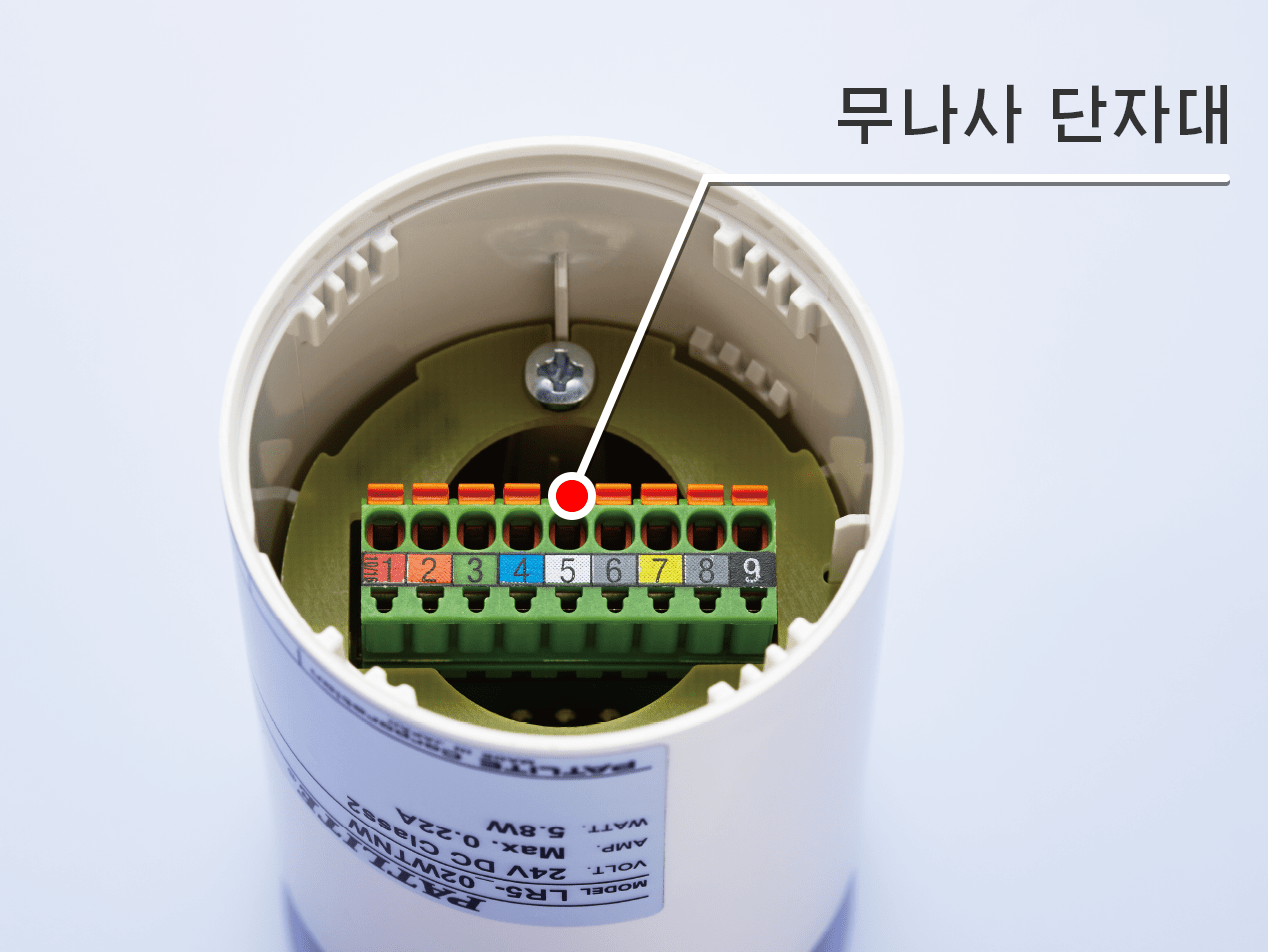

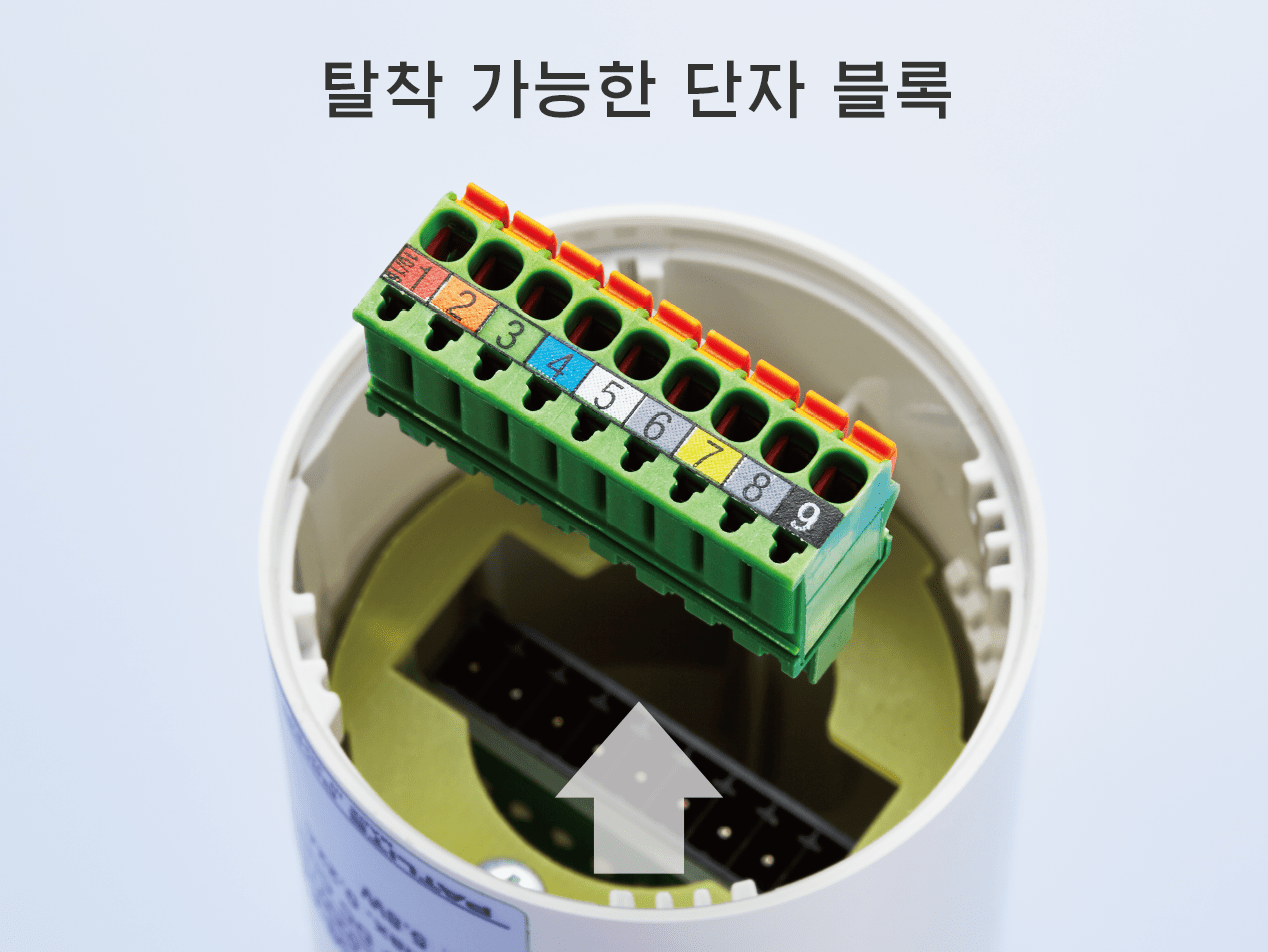

  • 나사가 필요 없는 탈착식 단자가 사용되어 배선이 간단합니다.

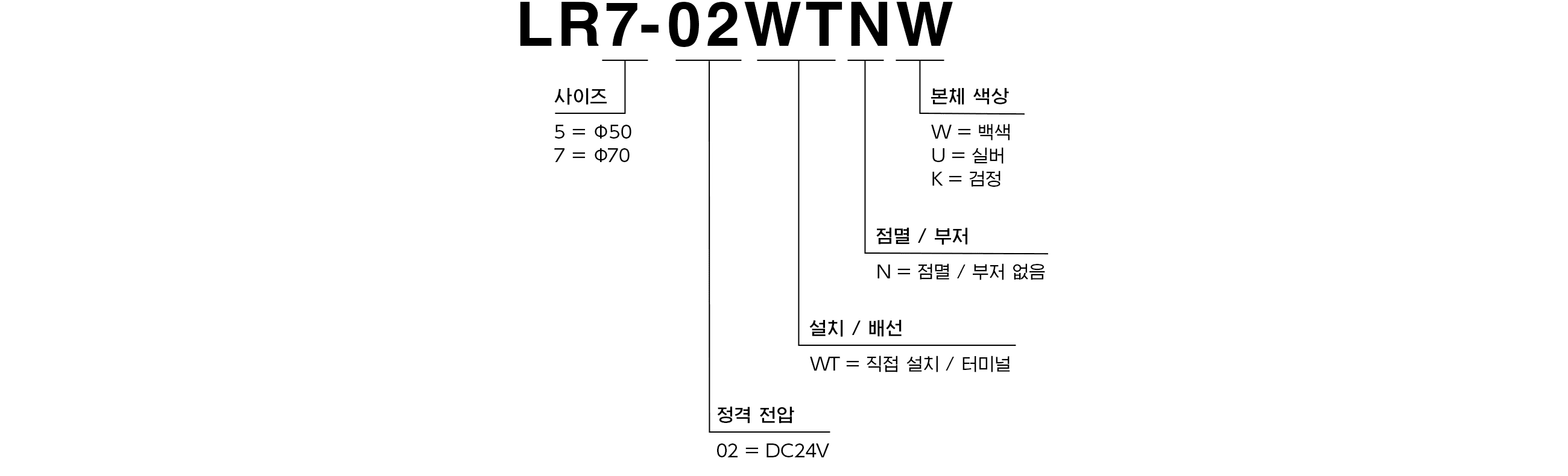

  • 정격 전압: DC24V
  • 오프화이트, 실버, 블랙 색상 본체 구입 가능.

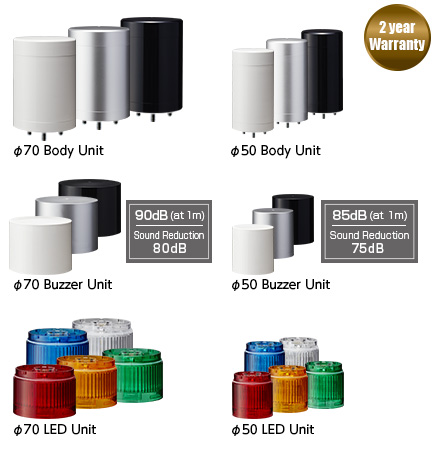

  • 베이스 유닛만 해당. LED 모듈과 사운드 모듈은 별도 판매됨.

배선이 쉬워진 신형 탈부착식 단자 LR_spec


작동 주변 온도 -20℃ - +50℃
작동 습도 범위 90% RH 이하, 비응결
보관 온도 범위 -30℃ - +60℃
보관 습도 범위 90% RH 이하, 비응결
장착 장소 실내용
장착 방향 수직 위치
보호 등급 IP65(IEC 60529) / NEMA 타입 4X, 13
환경 조건 수직 위치
절연 저항 전원 입력 리드와 섀시 간에 DC500V에서 1MΩ 이상
내전압 절연 파괴가 없는 상태에서 단자와 섀시 간에 1분에 AC 500V(M2 : 1분에 AC1500V)
플래시 속도 60 ±2 Flashes / min
소음 수준 LR5평균 85dB  LR7유형. 90dB
차음 성능*1 ab. -10dB 감소
환경 조건 1m 거리에서 모든 방향으로부터 버저음 No.4(스윕)
버저음 4가지 패턴 No.1빠른 간헐적인 사운드 No.2연속적인 사운드 No.3빠른 고-저 사운드 No.4스윕 사운드
트랜지스터 출력 NPN / PNP
적합성 기준 ●UL 508, CSA-C22.2 No.14
●FCC 파트 15 하위 파트 B 클래스 A
●RoHS 지침(EN IEC 63000)
●EMC 지침(EN 61000-6-4, EN 61000-6-2)
●KC(KN 61000-6-4, KN 61000-6-2)

*1: DIP 스위치 설정에 따라 다름


LED 장치 사양

색상 빨간색 주황색 녹색 파란색 흰색
전류 소비량/전력 소비량 유형 0.04A/1W
최대 0.045A/1.3W


버저 장치 사양

전류 소비량/전력 소비량 유형 0.04A/1W
최대 0.3A/1.3W
