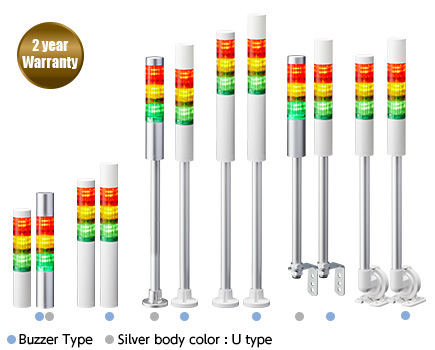

40mm LR4 LED 시그널타워
LR4

초고휘도 LED, 모듈식 디자인 및 가장 까다로운 응용 분야를 책임 지는 다양한 옵션을 갖춘 차세대 시그널타워 시리즈

  • 접점제어
  • 시그널 타워
  • Φ40
  • 점등
  • 점멸
  • 알람
  • 85dB
  • 실내 (똑바로)
  • IP65(똑바로)
  • IP54(똑바로)(L)(폴+L브라켓)타입)
  • 적색
  • 황색
  • 녹색
  • 청색
  • 백색
  • 40mm LR4 LED 시그널타워 LR4
  • 렌즈를 재설계하고 모듈 구조를 개선하여 먼 거리에서도 보일 수 있을 정도로 밝아졌습니다.
  • 재설계되고 완전히 밀폐된 사운드 모듈로 방대한 양의 물과 먼지로부터 제품을 보호하는 동시에 모든 방향으로 커다란 사운드를 생성합니다. (1m 거리에서 각각 LR5 DC12V: 80dB LR4 & LR5: 85dB, LR6: 88dB, LR7: 90dB)
  • LED 장치와 사운드 모듈을 쉽게 사용자 정의하거나 현장에서 구성할 수 있는 모듈식 "Twist and Lock(트위스트 락)" 디자인.
  • 열악한 환경에서도 최고의 성능을 발휘할 수 있는 세련되고 매끄러운 폼 팩터로서, IP65 보호 등급의 견고한 본체 구조를 지니고 있습니다.

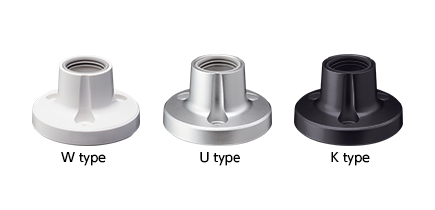

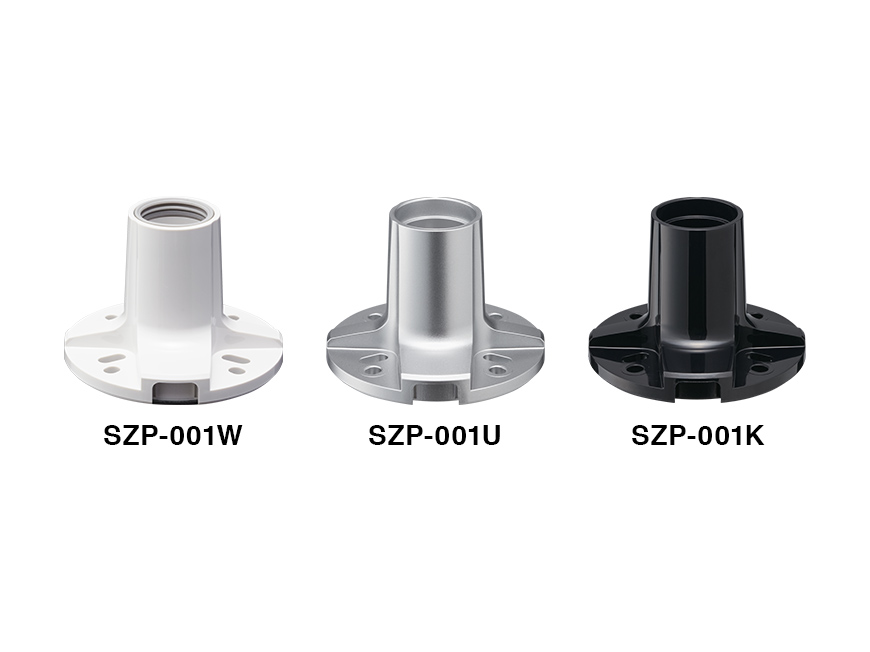

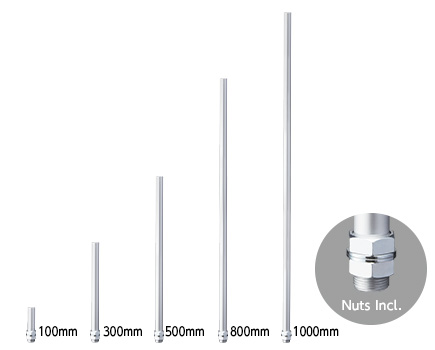

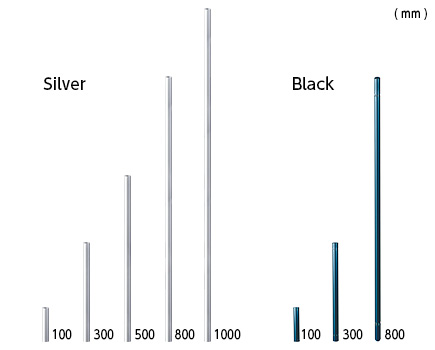

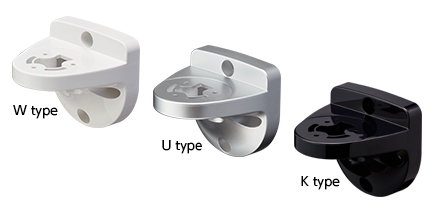

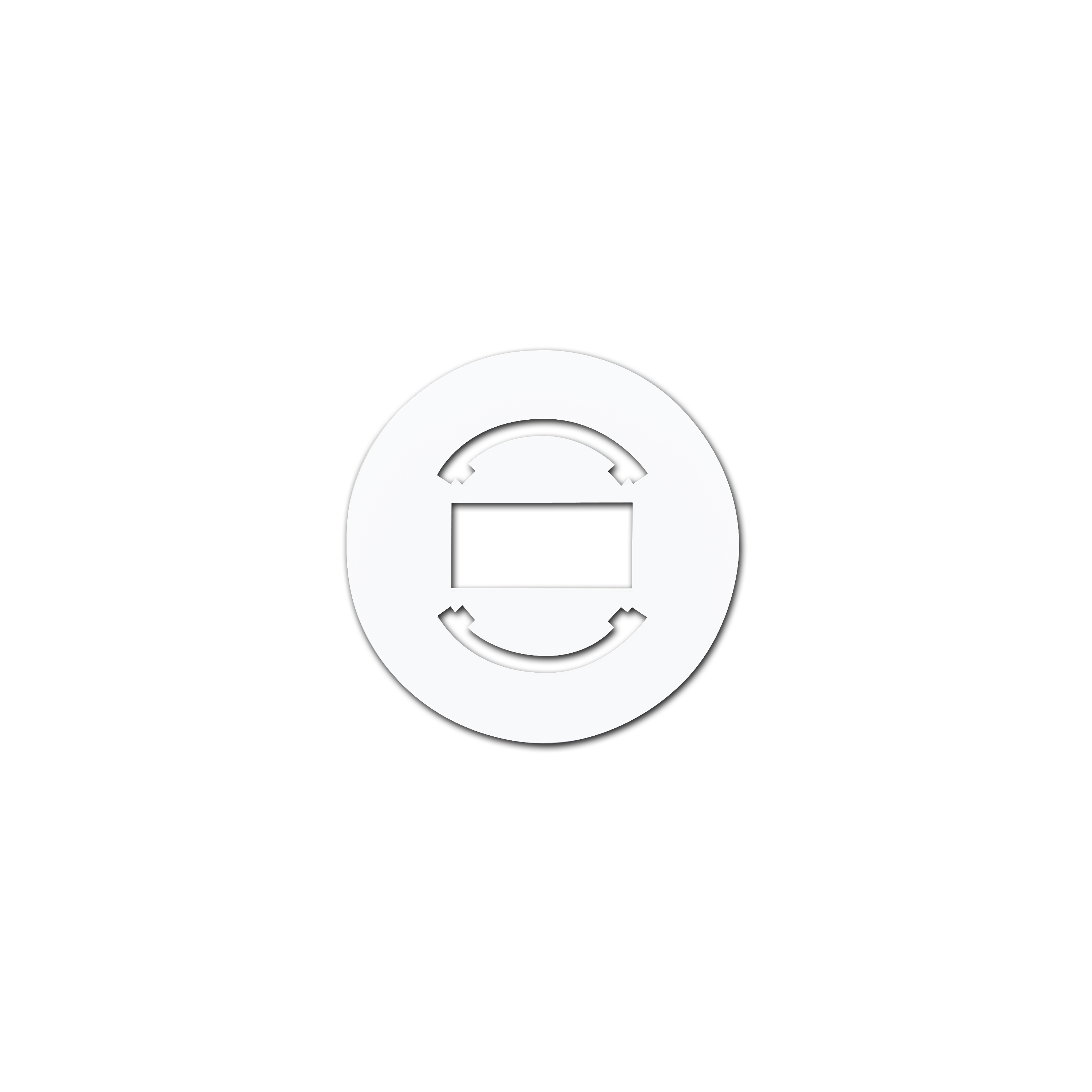

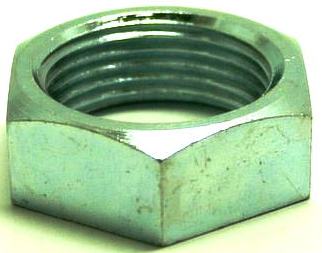

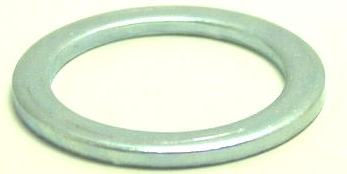

  • 4가지 장착 옵션: 직접 장착, L자형 브래킷이 있는 폴 사용, 원형 브래킷이 있는 폴 사용 및 접이식 브래킷이 있는 폴 사용(오프화이트 모델만 해당).
  • DC24V와 AC100-240V에서 사용할 수 있음(오프화이트 모델만 해당).
  • 오프화이트나 실버 색상 본체로 구입 가능.
  • 투명 렌즈 사용 가능(특별 주문).

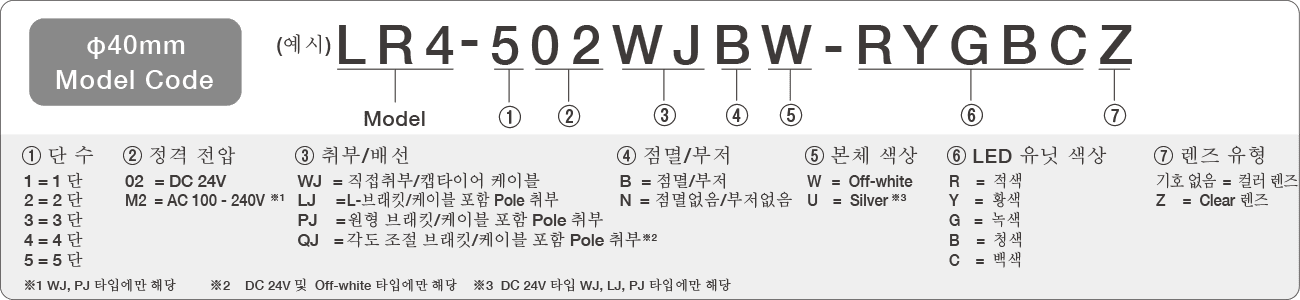

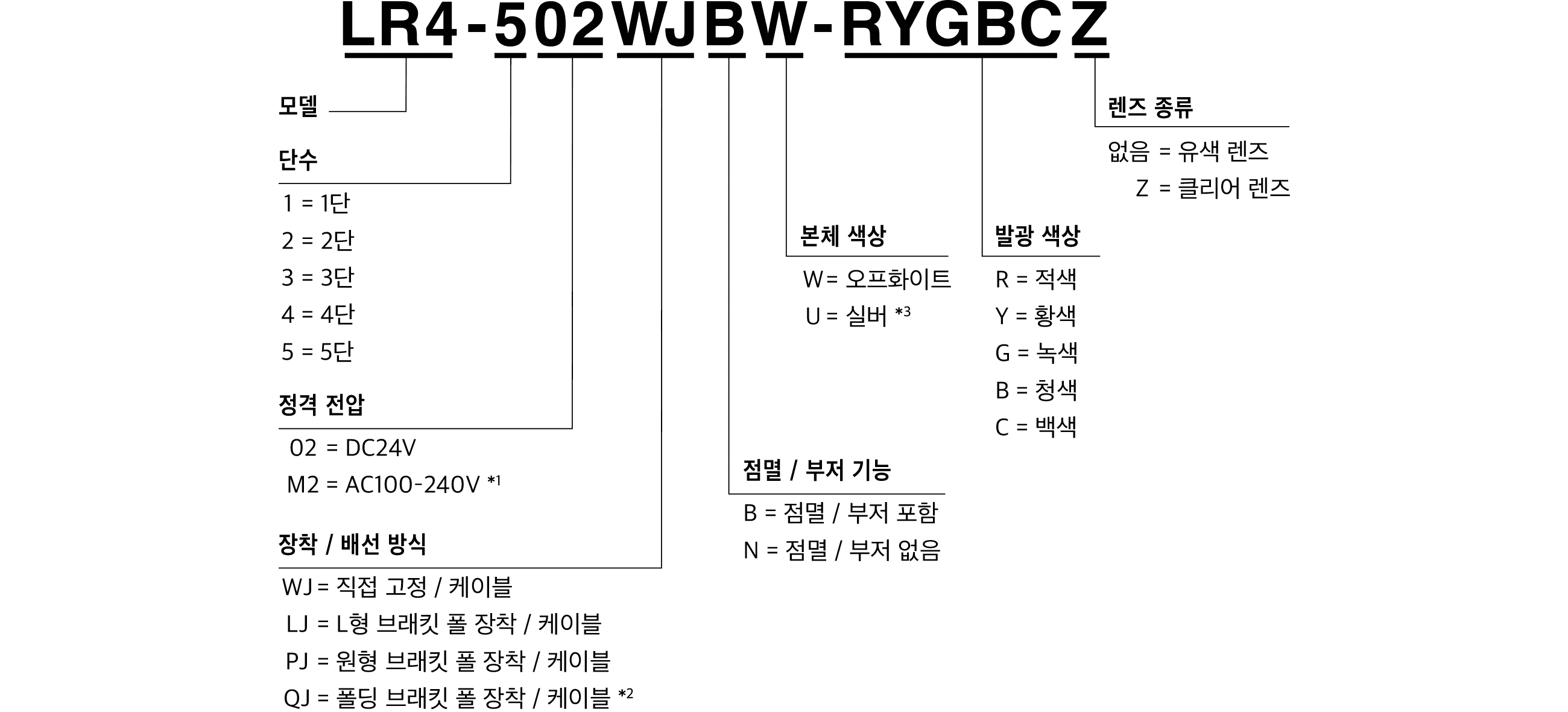

LR_spec

사양

작동 주변 온도 -20℃ - +50℃
작동 습도 범위 90% RH 이하, 비응결
보관 온도 범위 -30℃ - +60℃
보관 습도 범위 90% RH 이하, 비응결
장착 장소 실내용
장착 방향 수직 위치
보호 등급*1 IP65(IEC 60529) / NEMA 타입 4X, 13
환경 조건 수직 위치
절연 저항 전원 입력 리드와 섀시 간에 DC500V에서 1MΩ 이상
내전압 절연 파괴가 없는 상태에서 단자와 섀시 간에 1분에 AC 500V(M2 : 1분에 AC1500V)
플래시 속도 60 ±2 Flashes / min
소음 수준 LR4평균 85dB
차음 성능*2 ab. -10dB 감소
환경 조건 1m 거리에서 모든 방향으로부터 버저음 No.4(스윕)
버저음 4가지 패턴*21번빠른 간헐적인 사운드 2번연속적인 사운드 3번빠른 고-저 사운드 4번스윕 사운드
트랜지스터 출력 NPN / PNP(AC100 - 240V는 NPN만 해당)
적합성 기준 ●UL 508, CSA-C22.2 No.14
●FCC 파트 15 서브 파트 B 클래스 A
●RoHS 지침(EN IEC 63000)
●EMC 지침(EN 61000-6-4, EN 61000-6-2)
●KC(KN 61000-6-4, KN 61000-6-2)*3
●저전압 지침(IEC/EN 60947-5-1, EN62471)*4

*1: LJ 타입은 IP54임   *2: DIP 스위치 설정에 따라 다름   *3: KT 타입과 M2 LJ 타입 제외   *4: M2 타입만 해당(LJ 타입 제외)



LED 장치 사양

색상 빨간색 주황색 녹색 파란색 흰색
전류 소비량/전력 소비량 유형 0.04A/1W
최대 0.045A/1.3W



버저 장치 사양

전류 소비량/전력 소비량 유형 0.04A/1W
최대 0.3A/1.3W
