IO-Link 소형 표시등

터치 센서 및 디지털 / 아날로그 입력 기능으로 현장 정보를 시각화하는 IO-Link 표시등입니다.

  • 네트워크 제품
  • IO-Link
  • Φ56
  • 표시등
  • 점등
  • 점멸
  • 알람
  • 88dB
  • 실내
  • IP65
  • 멀티컬러 (7 colors)

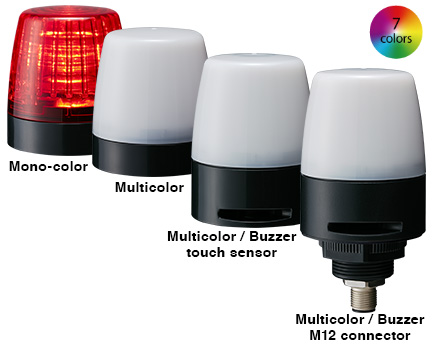

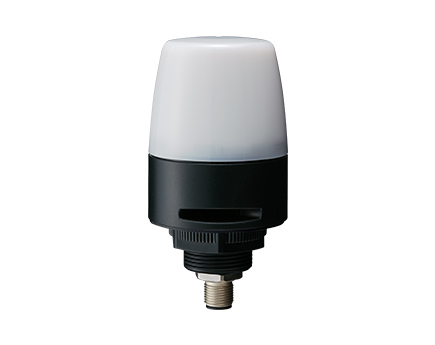

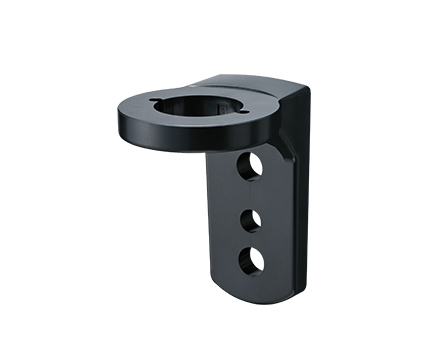

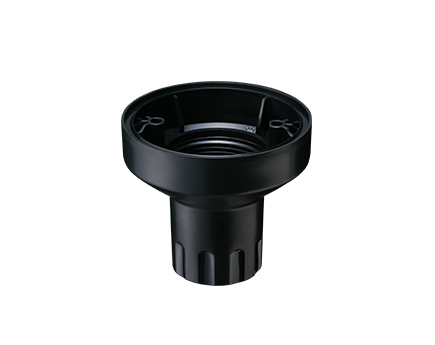

  • IO-Link 소형 표시등 NE-IL
  • 터치 센서 타입으로 선택이 가능합니다.
    • 표시등 상부에 커패시턴스(정전 용량식 터치센서)가 내장된 제품입니다.
    • 점등 상태인 표시등을 스위치 대신에 터치하여 상부에 신호를 보낼 수 있으며, 작업 완료 입력이나 관리자 호출 등에 활용할 수 있습니다.
  • IO-Link에 호환되지 않는 센서 등과 접속할 수 있도록 디지털/아날로그 입력을 탑재했습니다. 표시등이 I/O 허브로 기능하여 현장에서 활용되는 장비를 효과적으로 사용할 수 있게 합니다. 센서가 감지한 값에 따라 표시등의 색상을 변화시키면서 정보를 IO-Link 마스터에 전송할 수 있습니다.
  • 단일 M12 커넥터로 전원 공급과 제어 배선이 가능합니다. 복잡한 배선이나 전문지식이 불필요합니다.
  • IO-Link 마스터에 연결된 장비는 마스터로 일괄적으로 관리할 수 있습니다. 예비 부품의 리스트업과 유지 보수에 도움이 됩니다.
  • IO-Link 센서의 이상 등은 IO-Link 마스터를 통해 본 제품에 통보됩니다. 초기 단계에서 현장의 이상을 파악하고 복구할 수 있습니다. 정지로 인한 손실이 감소하고 가동률의 향상이 실현됩니다.
  • 용도에 따라 색상을 7색 중에서 선택할 수 있습니다. ‘이상 발생’이나 ‘작업 중’ 등 시각화하기 쉬운 색을 사용하여 보다 직관적으로 상황을 판단하고 대응할 수 있습니다.
  • 점등∙소등을 판별하기 쉬운 유백색 렌즈 글로브를 채택하였습니다. 균일하게 빛나는 부드러운 빛으로 알립니다.
  • OMRON Corporation "NX 시리즈 IO-Link 마스터 장치"와의 IO-Link 연결 매뉴얼을 보려면 여기를 클릭하십시오.
    (이 문서에 관한 문의 사항은 OMRON Corporation에 문의하십시오.)

모델 사양




터치 센서

부저 터치 센서

부저, 터치 센서 및
디지털 / 아날로그 입력
사이즈 φ56mm
정격 전압 DC 24V
취부 장소, 방향 실내, 정방향
보호 등급 IP65 / NEMA 타입 4X, 13
발광색 멀티 컬러 (적색, 황색, 녹색, 청색, 백색, 보라색, 하늘색)
동작 사양 점등 / 점멸
부저 음압 Typ. 88 dB
[8 사운드 타입 (선택 가능)]
Typ. 88 dB
[8 사운드 타입 (선택 가능)]
취득 인증 ●EMC 기준 (EN 61000-6-4, EN 61000-6-2) ●RoHS 기준 (EN 50581)
●UL 508, CSA-C22.2 No. 14 ● FCC Part 15 Subpart B Class A
● KC (KN 61000-6-4, KN 61000-6-2)
배선 M12 connector 5 pins A code M12 connector
8 pins A code

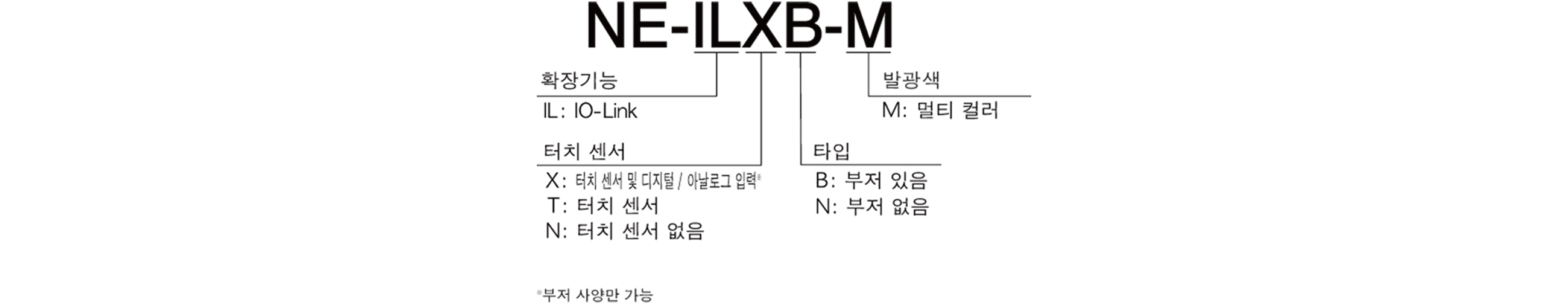

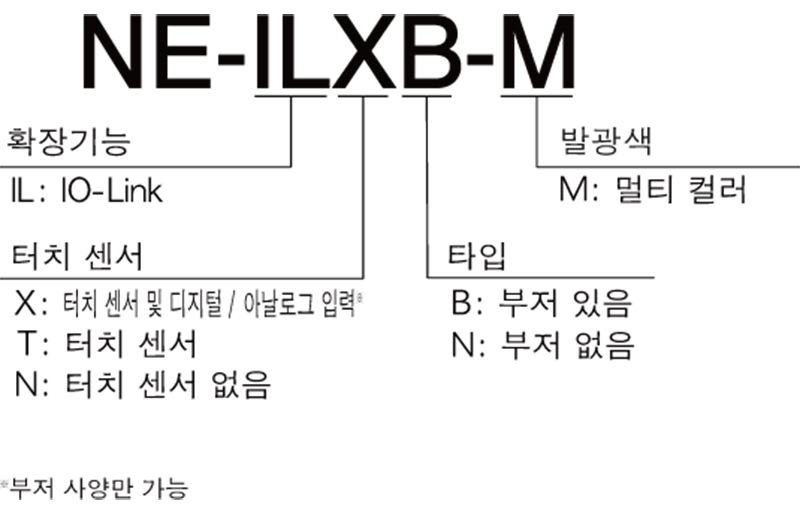

모델 번호 구성
