표시등
NE-A

터치 센서가 장착된 모델부터 기본형 모델까지, 풀라인업 56mm 직접취부타입 표시등

  • 전원제어(단색)
  • 접점제어(멀티컬러모델)
  • Φ56
  • 표시등
  • 점등
  • 알람 (다색 유형: NB/TB)
  • 88dB
  • 실내 (똑바로)
  • IP67
  • IP65
  • 적색
  • 황색
  • 녹색
  • 청색
  • 백색
  • 하늘색
  • 보라색
  • 멀티컬러
  • 표시등 NE-A
マルチカラーモデル



【멀티 컬러 모델】

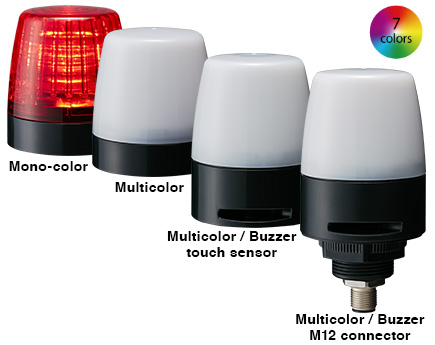

  • 터치 센서 유형을 선택할 수 있습니다. 커패시턴스형(정전용량식) 터치센서가 표시등 상단에 내장되어 있습니다. 스위치 대신 조명이 켜진 표시등을 터치하여 상부에 신호를 보냅니다. 작업 완료 및 관리자 호출과 같은 직관적인 작업에도 활용할 수 있습니다.
  • 용도에 맞게 7가지의 색상 중에서 표시색을 선택할 수 있습니다."이상발생"및 "작업중"등, 이미지화 하기 쉬운 색을 사용하는 것으로 보다 직관적으로 상황을 판단하고 대처하는 것이 가능합니다.
  • 점등 · 소등을 판별하기 쉬운 유백색 렌즈 글로브를 채택하였습니다. 균일하게 빛나는 부드러운 빛으로 알립니다.

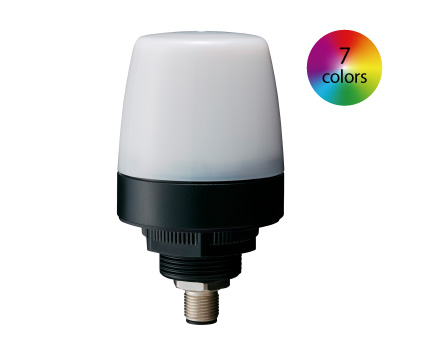

  • M12 커넥터 타입으로 배선이 용이합니다.



単色モデル



【단색 모델】
  • 독자적인 발광 방법을 실현한 신개발 리플렉터를 채용하였습니다. 더 밝고 명확한 빛으로 알립니다.
  • 나사 조임없이 확실하고 간단하게 배선을 할 수 있도록, 나사가 없는 단자대를 채택하였습니다. 배선 작업 시간 및 오류를 줄입니다.



사양

모델 NE-24A-□

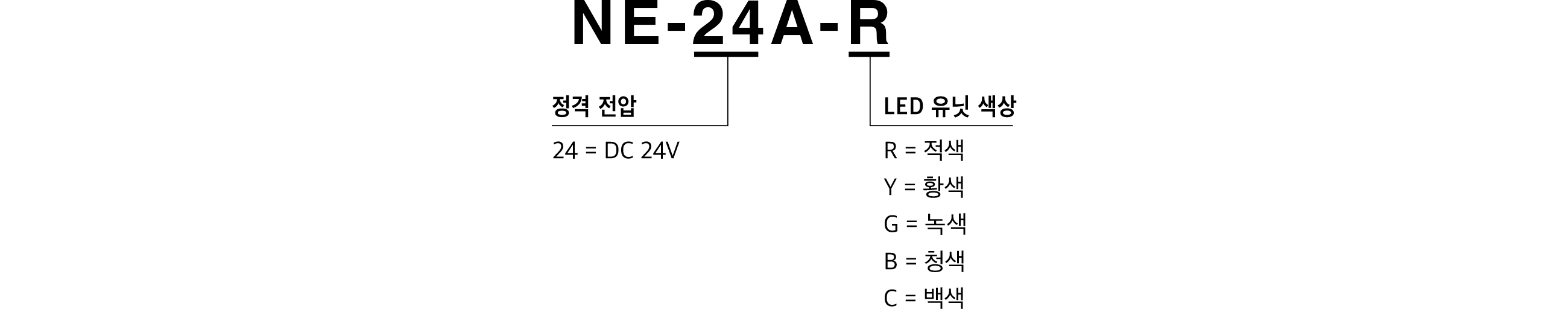

□:R/Y/G/B/C

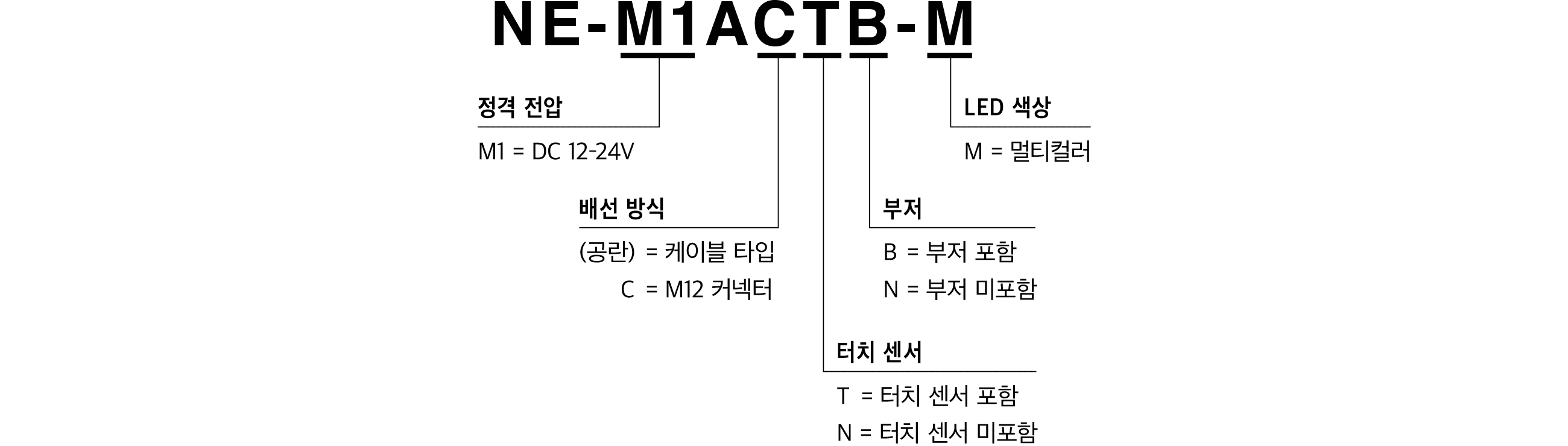

NE-M1ANN-M NE-M1ANB-M NE-M1ATB-M NE-M1ACNB-M
크기 Φ56mm
정격 전압 DC 24V DC 12-24V
취부 장소 실내
취부 방향 전방향
보호 등급 IP65
NEMA TYPE 4X, 13
IP67
NEMA TYPE 4X, 13
IP65
NEMA TYPE 4X, 13
LED 유닛 색상 적색 / 황색 / 녹색 /
청색 / 백색
Multi-color ( 적색 / 황색 / 황색 / 청색 / 백색 / 하늘색 / 보라색 )
부저 음압 - 88dB
간헐적 또는 연속적
표시등 패턴/기능 점등 점등 / 점멸 점등 / 터치 센서 점등
배선 나사 없는 단자대 케이블 (2m) M12 커넥터
