- IP67/IP69K 등급. 고온 고압 세척에도 안전

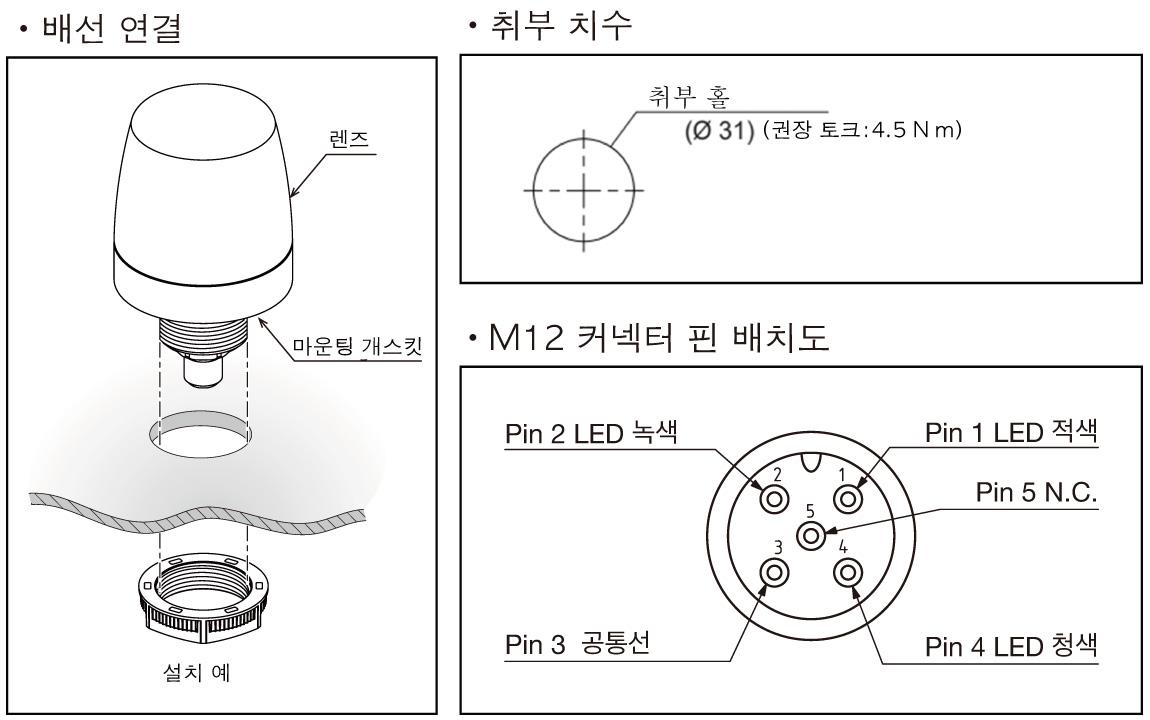

- 손쉬운 설치를 위한 5핀 M12 커넥터 - 작업 시간 절약

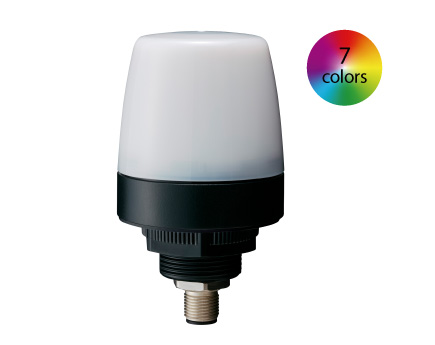

- 멀티 컬러 디스플레이: 다양한 알림이 가능한 7가지 LED 색상
|정격 전압||DC 12-24V|
|보호 등급||IP67(IEC 60529)/ IP69K(DIN 40050 PART9)|
|색상||멀티컬러 (적색, 황색, 녹색, 청색, 백색, 보라색, 하늘색)|
・UL Component recognized (미국)
・cUL Component recognized (캐나다)

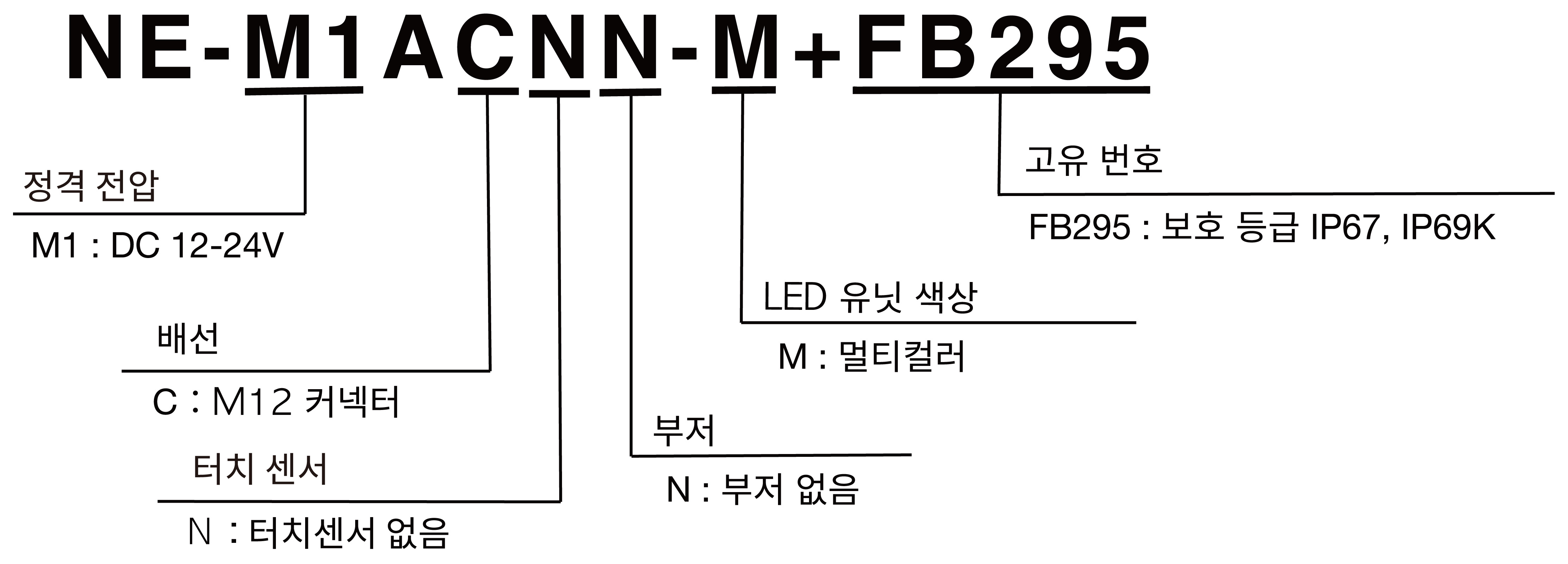

모델 번호 구성
테스트 장소: 일본 품질 보증 기구
(JQA 북부 간사이 시험 센터)
취급 설명서/사양/외관 치수
