USB 제어 멀티 컬러 표시등

USB 버스 파워 및 제어하기 쉬운 멀티 컬러 타입으로, 상황에 따라 7가지 색상으로 표시할 수 있습니다.

  • 네트워크 제품
  • USB(Bus power)
  • 터치 센서
  • Φ56
  • 표시등
  • 점등
  • 경보
  • S□:65dB
  • W□:88dB
  • 실내
  • S□:IP20
  • W□:IP65

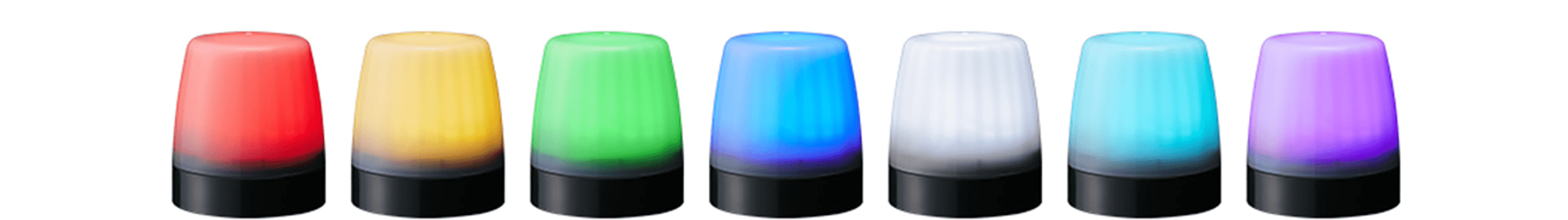

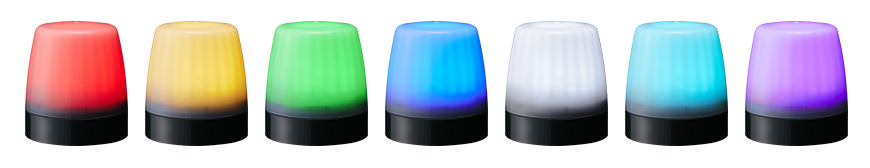

  • 멀티컬러 (7 colors)

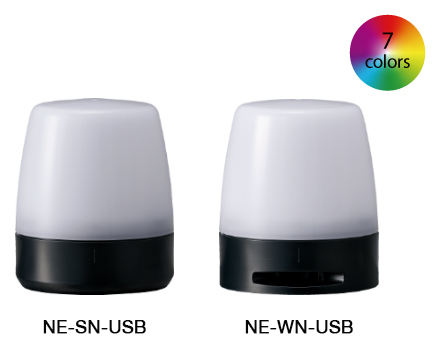

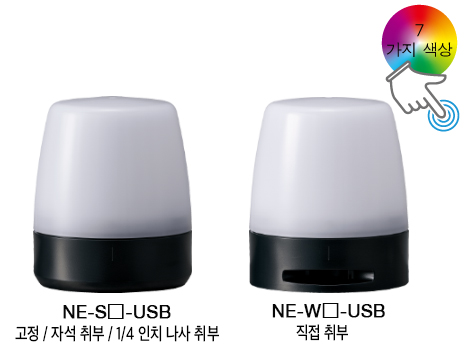

  • USB 제어 멀티 컬러 표시등 NE-USB


  • PC와 연결 시 하나의 케이블로 버스 파워와 제어를 통해 전원을 공급합니다.
  • 터치 센서 타입은 표시등 상부를 터치하는 것만으로도 상위 계층 장치에 신호를 보낼 수 있어 물리적 스위치가 필요하지 않습니다.
  • DLL 소프트웨어 라이브러리를 사용한 손쉬운 프로그래밍이 가능합니다.
    또한 다양한 프로토콜로 제어할 수 있으므로 Windows 이외의 운영 체제에서도 사용할 수 있습니다.
  • HID급 장치이기 때문에 전용 드라이버를 설치하지 않고도 제어가 가능합니다.
  • 사무실 및 소매점과 같은 곳에 알맞습니다. 반투명 렌즈의 부드러운 빛과 귀에 잘 들리는 알람으로 부드러우면서도 알기 쉬운 알림을 받을 수 있습니다.
  • 네오디뮴 자석 타입으로 책상과 벽에 쉽게 부착할 수 있습니다. 또한, 1/4인치 나사 소켓은 삼각대와 같은 광범위한 취부 방식을 지원합니다. ※NE-S□-USB
  • Pole 취부와 벽면 취부 옵션이 가능합니다. (Pole 취부용 NE-001D와 벽면 취부용 NE-002D)
※USB 케이블(A 타입 수 ~ C 타입 수)은 제공되지 않습니다. 고객이 별도로 구비해야 합니다.
※USB 포트를 통해 PC에서 장치를 제어하는데 프로그래밍 지식이 필요합니다.

정격 전압 DC 5V (USB 버스 파워)
크기 Φ56
보호 등급 IP 20 IP 65(정방향)
설치 예 snマグネット取付イメージ sn三脚取付イメージ wnNE-002Dイメージ wnポール取付イメージ

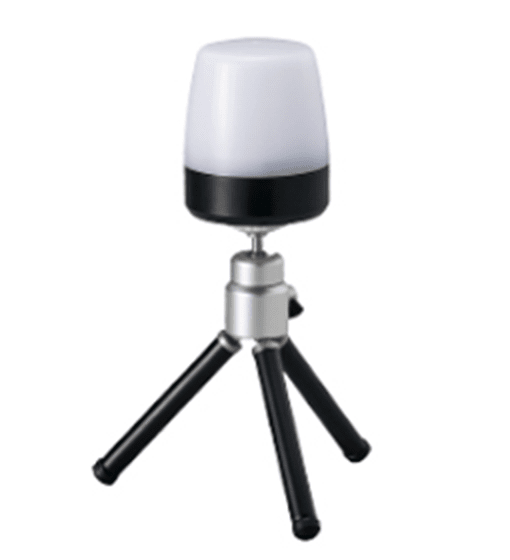

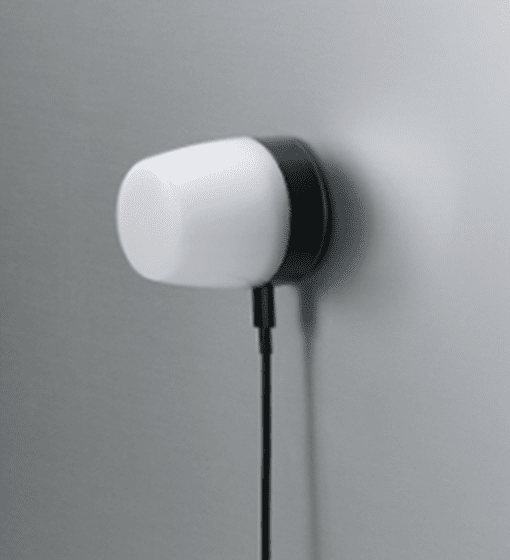

자석 취부 1/4 인치 나사 취부
※삼각대는 별도로

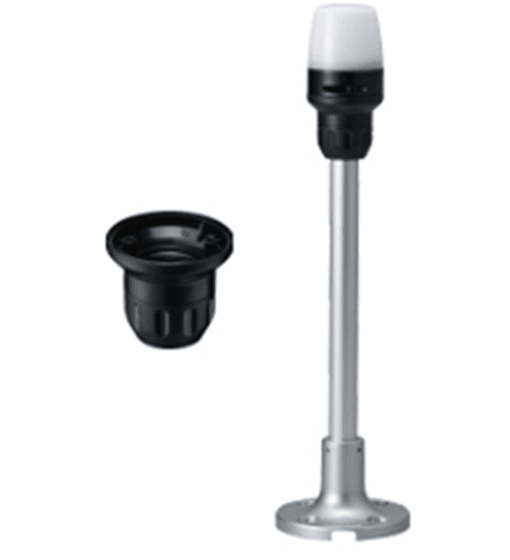

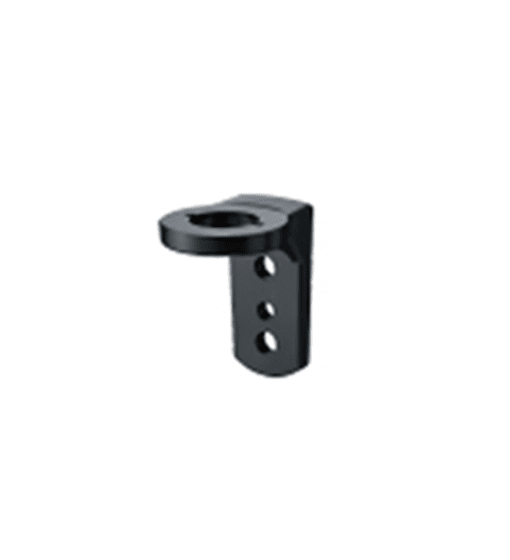

벽면 취부 브래킷 Pole 취부
(Pole 브래킷)
