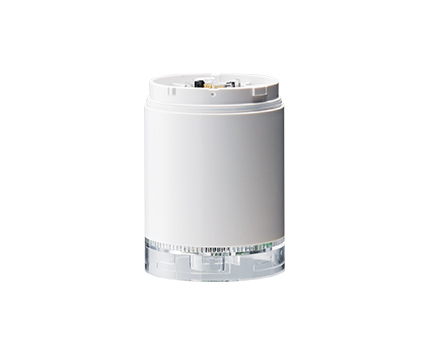

무선 데이터 수집 시스템 WD PRO 송신기
WDT-6LR-Z2-PRO는 WDB-D80S-PRO 제품과만 호환 가능합니다.
- 무선 제품
- 실내 (똑바로)

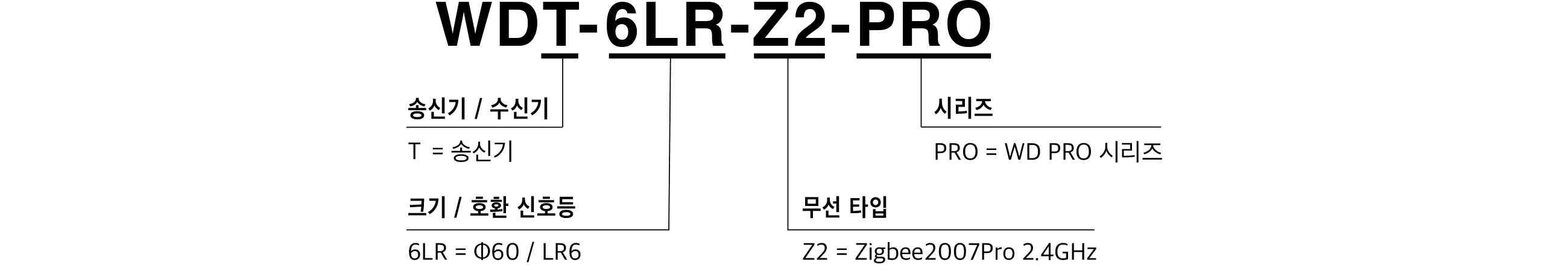

WD PRO 용 송신기 WDT-6LR-Z2-PRO에 취부 가능합니다.
WD Pro 무선 데이터 습득 시스템은 페트라이트 시그널 타워를 선택하여 IIoT 기능을 추가할 수 있어 경제적입니다. 이 시스템은 시그널 타워로 얻을 수 있는 기계 상태 변화 정보를 무선으로 송신하여 호스트 PC에서 실시간 모니터링과 데이터 분석을 가능하게 합니다. WD 시스템의 모든 기능 물론, WD PRO 시스템은 추가적인 데이터 수집 기능을 제공합니다. 또한 양방향 무선 통신 시스템을 지원하여 호스트 PC에서 시그널 타워를 원격 제어할 수 있습니다. 이 네트워크 솔루션을 통해 생산 병목 현상을 파악 및 감독 제어 강화, 생산성 최적화 및 OEE(Overal Equipment Effectivity)를 개선할 수 있습니다.
- LR6 시그널 타워에 설치할 경우 WD PRO 수신기 (WDR-LE-Z2)와 무선 데이터 송신이 가능해집니다.
- 이 송신기 유닛을 통해 다수의 장비를 묶어 원거리 모니터링과 데이터 아카이빙이 가능해집니다.
- 양방향 무선 통신 시스템을 지원하여 호스트 PC에서 시그널 타워를 원격 제어 가능하며,
- PLC와 스위치같은 외부 점점으로부터 무선 정보 수신이 가능합니다.
- 바코드 리더기와 같은 시리얼 디바이스를 사용하여 최대 60 byte의 시리얼 데이터를 취득할 수 있어, 상세한 직원 정보나 제품 품질을 제어할 수 있습니다.
- WD Pro 시스템은 기존의 WD 시스템이 도입된 환경과 호환하여 사용 가능합니다.
|Rated Voltage||24V DC|
|Wireless specification||2.4GHz Zigbee|
(*)이 사이트의 데이터 다운로드 서비스는 다음 ""에 동의 한 것으로 간주됩니다.
(*)이 사이트의 데이터 다운로드 서비스는 다음 ""에 동의 한 것으로 간주됩니다.
2D CAD / 3D CAD
