- LED 조명
- 물, 기름 및 냉각수에 강함
- 특수 설계는 열 복사를 조명과 분산시켜 40W 전구보다 우수

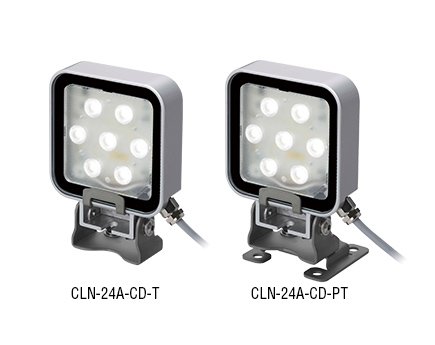

- 두 가지 브래킷 옵션 (Tilt, Pan-tilt)
- 다양한 상황에 맞게 적용할 수 있는 두가지 방향 장착 가능 (Up-down, Swivel)
- 두 가지 색상 (Daylight, Wark White)
- 사용 온도 범위는 -40 ~ +60°C로 냉동 창고와 같은 동결 온도가 낮은 환경에 설치 가능
- CE 요구 사항을 준수
- UL 등재 (File No. E306141)
|DIMENSIONS||・ Refer to Specification Sheet|
|RATED VOLTAGE||・ 24V DC ±10%|
|BODY STYLE||・ Aluminum Alloy|
|LENS MATERIAL||・ Tempered Glass|
|CONFORMITY STANDARDS||・ RoHS Conformityc
・ UL Listed
・ CE Conformity<
|PROTECTION RATING||・ IP66G
취급 설명서/사양/외관 치수
