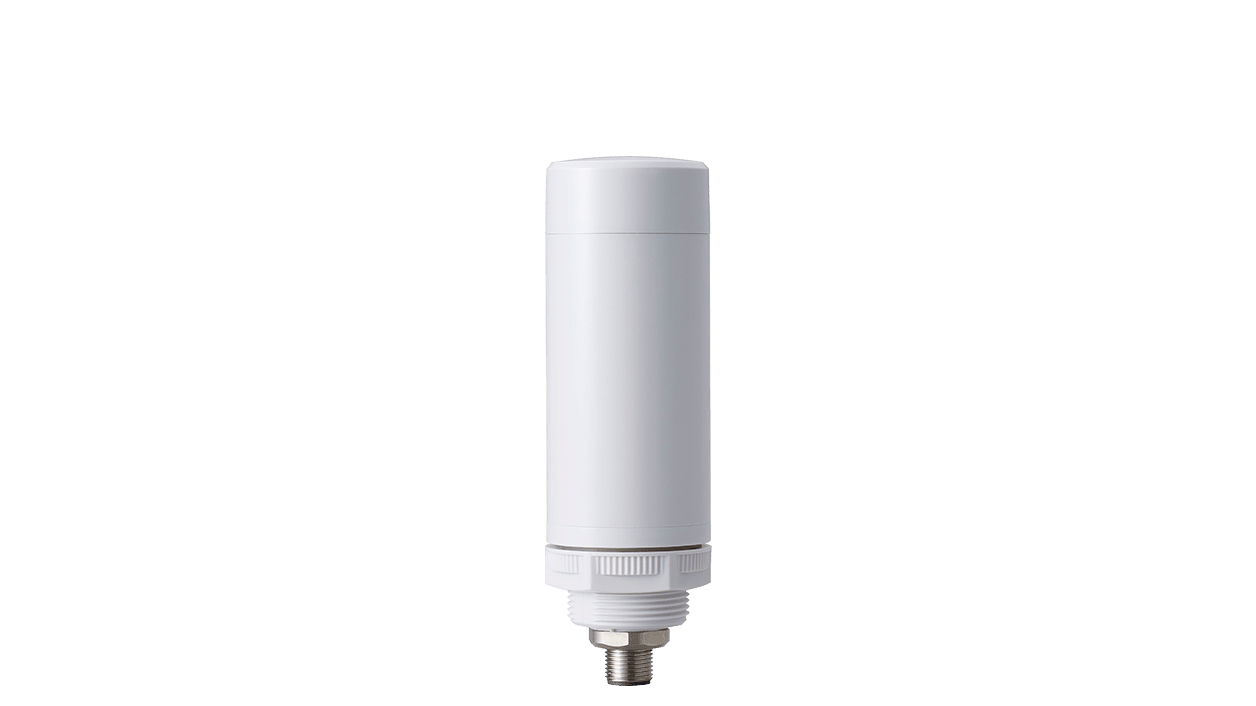

M12 커넥터가 있는 40mm LED 시그널 타워
간편한 설치 및 분리를 위한 내장 M12 커넥터 특징
- 신호 타워
- 실내 (직립)
- 8-핀 M12 커넥터

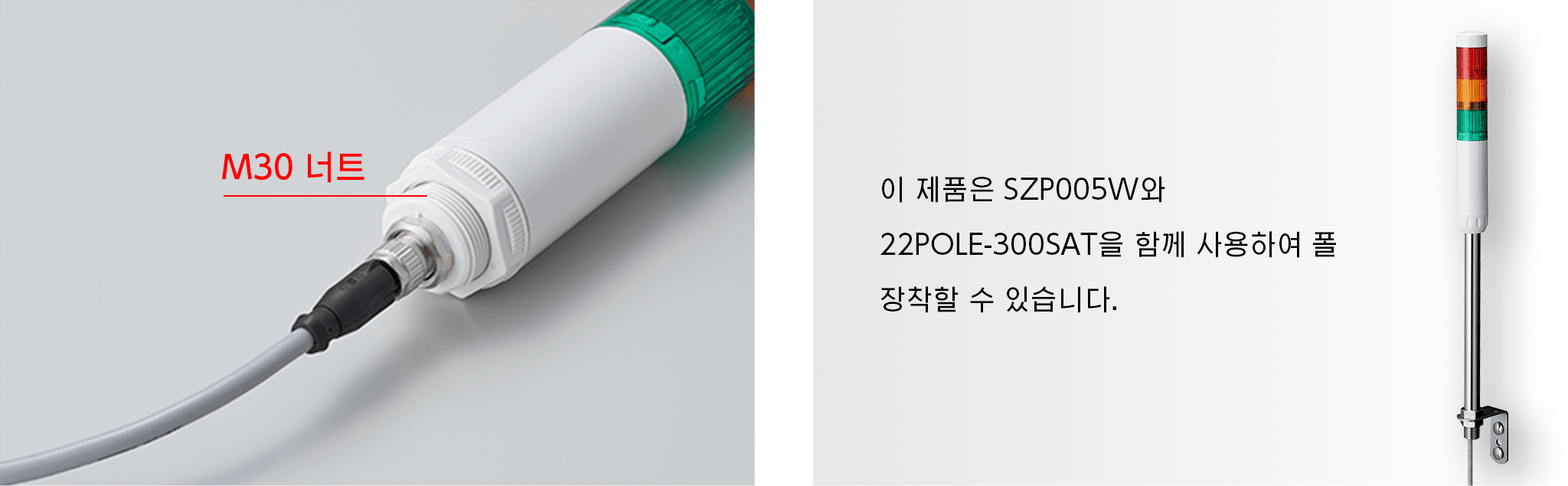

- 30mm 장착 구멍을 통해 직접 장착
- 정격전압：DC 24V
- 본체 색상: 오프화이트
|정격 전압||DC 24V|
|본체 색상||오프 화이트|
・UL 구성 요소 인식 (미국)
・c-UL 부품 인식 (캐나다)
|보호 등급||IP65(IEC 60529) / NEMA TYPE 4X,13|
