LR10 시리즈 부저 유닛
LR10-BW / LR10-BW-2

부저 유닛은 하드웨어를 다시 배선하거나 재구성하지 않고도 시그널 타워에 추가하거나 제거할 수 있습니다.

  • 옵션
  • Φ100
  • 알람
  • LR10 시리즈 부저 유닛 LR10-BW / LR10-BW-2

부저 유닛은 LR10 시리즈의 완제품 또는 본체 유닛과 조합하여 사용할 수 있습니다.

부저 유닛 없는 완제품 구매 후 알람 기능이 필요한 경우, 부저 유닛을 구매하여 추가할 수 있습니다.

두 가지 타입의 부저 유닛을 사용할 수 있습니다.
LR10-BW는 도구 없이 설치하고(Twist and Lock), LR10-BW-2는 나사로 고정합니다.
LR10-BW-2는 도난 방지나 부저 유닛의 낙하 방지가 필요한 환경에 적합합니다.

호환 제품: LR10
LR10-BW는 나사 없이 LED 유닛에 장착할 수 있습니다.
LR10-BW-2 추가 시, LED 유닛 고정 나사를 그대로 사용할 수 있어, 추가 나사를 구입할 필요가 없습니다.
(예: LR10-BW-2를 부저가 없는 적색, 황색, 녹색의 3단 완제품에 추가할 시, 고정 나사를 제거하고, 부저 유닛를 조립한 다음, 고정 나사로 전체 조립품을 고정하십시오.)

LR Unit

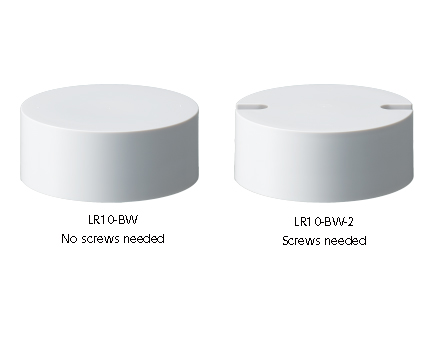

모델 번호 유닛 고정 방법
LR10-BW 나사 불필요(Twist and Lock)
LR10-BW-2 나사 필요
