LED 신호 타워 라이트 (Φ100mm)
LR10

다양한 조명 패턴과 실외 사용 가능한 시그널 타워

  • 접점제어
  • M12 커넥터
  • 시그널 타워
  • Φ100
  • 알람
  • 92dB
  • IP66
  • IP69K
  • 적색
  • 황색
  • 녹색
  • 청색
  • 백색

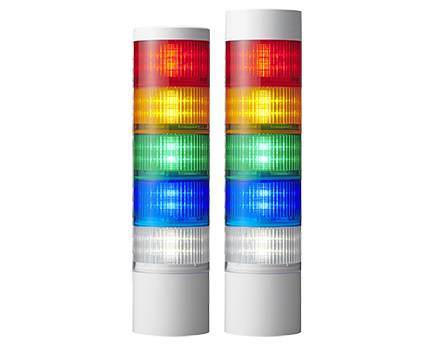

  • LED 신호 타워 라이트 (Φ100mm) LR10
  • 다양한 조명 패턴
    점등, 점멸, 플래시 및 모터리스 회전

    점등 및 점멸 외에도 플래시 및 모터리스 회전이 추가되었습니다.
    사용 환경에 적합한 조명 패턴을 선택할 수 있습니다.
    Click here←다양한 점등 패턴 영상은 여기를 클릭하세요.

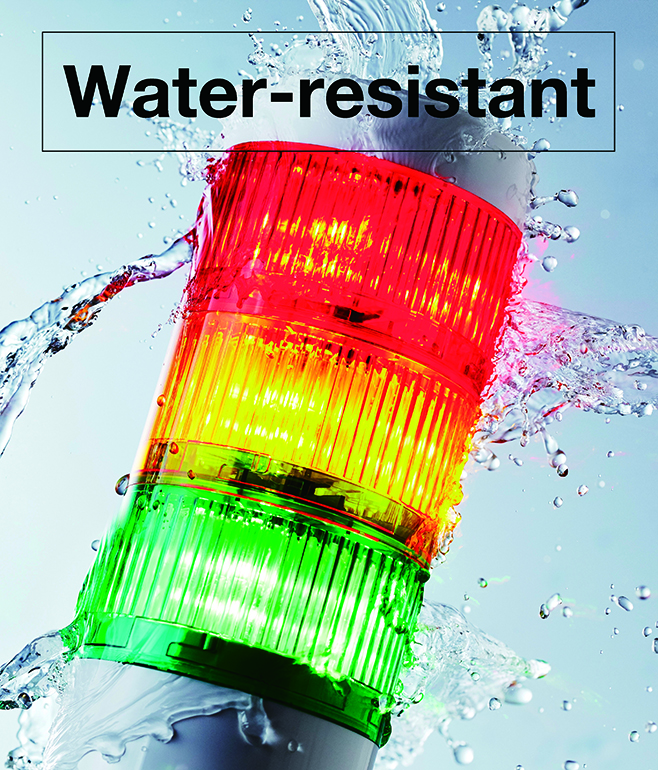

  • IP66/69K 등급
    열악한 환경에서도 안심하고 사용 가능

    시그널 타워로써 최고 등급의 방수, 방진 성능을 보유하고 있습니다.
    옥외에서 사용할 수 있을 뿐만 아니라 식품 공장 및 기타 시설에서도 안전하게 사용할 수 있습니다.


    《보호등급》

    IP6X: 방진형(먼지의 침입을 완전 차단)
    IPX6: 강력한 제트 분사로부터 보호
       (모든 방향에서 분사되는 노즐로 강력한 물 분사)
    IP69K: 80-100 BAR의 수압과 분당 14-16리터의 유속으로 지정된 모양의 노즐을 통해 배출되는 80℃의 뜨거운 물에 테스트 유닛이 노출될 때 물이 침투하지 않아야 함.또한 테스트 유닛과 노즐 사이의 거리는 10~15cm로 하고 테스트 유닛을 수평면에서 회전시키면서 0도, 30도, 60도, 90도 각 방향으로 30초간 물을 분사.

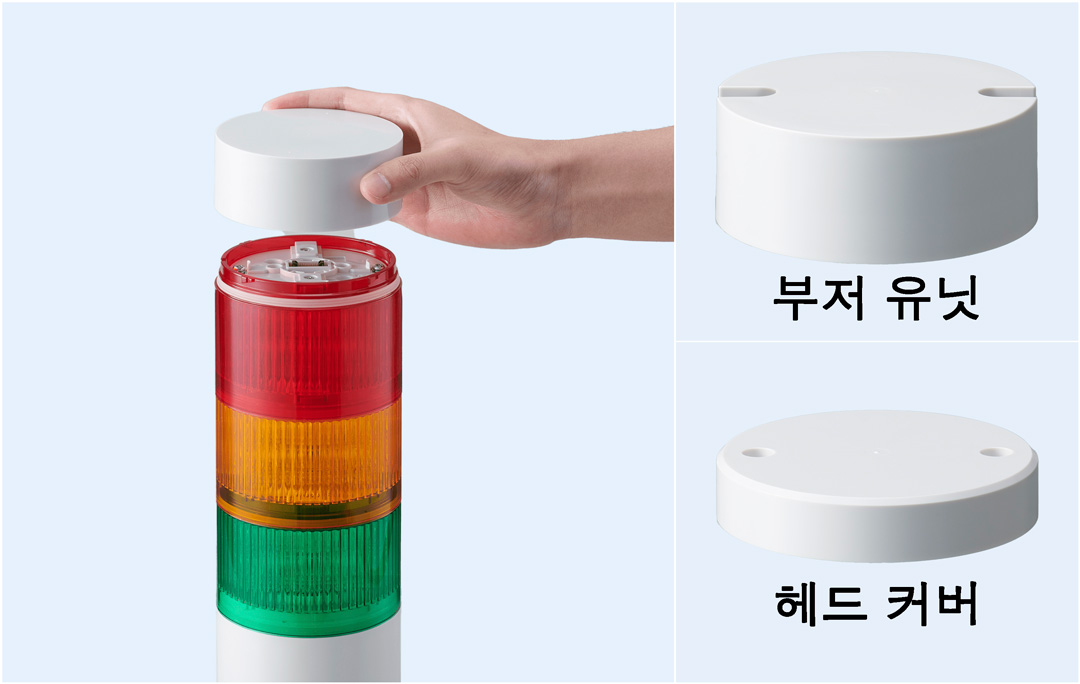

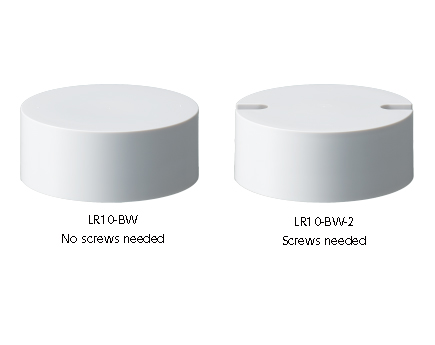

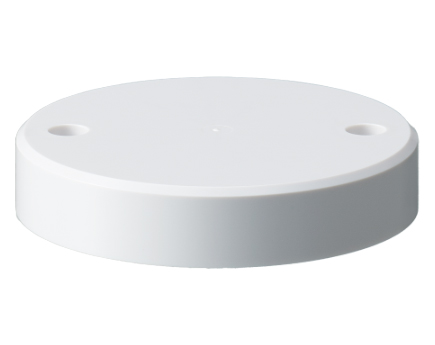

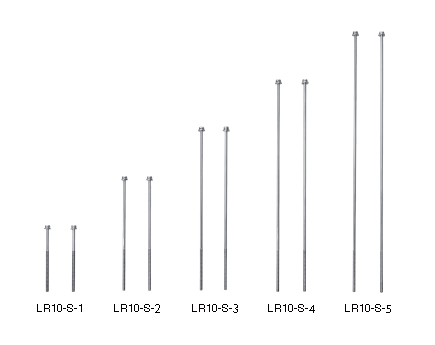

  • 나사 고정 헤드 커버와 부저 유닛은 옵션으로 구매

    헤드 커버와 부저 유닛을 나사로 고정하여 떨어지지 않도록 사용할 수 있습니다.
    유닛에 조립된 나사를 사용할 수 있어 교체 시 상단 유닛만 교체하면 됩니다.

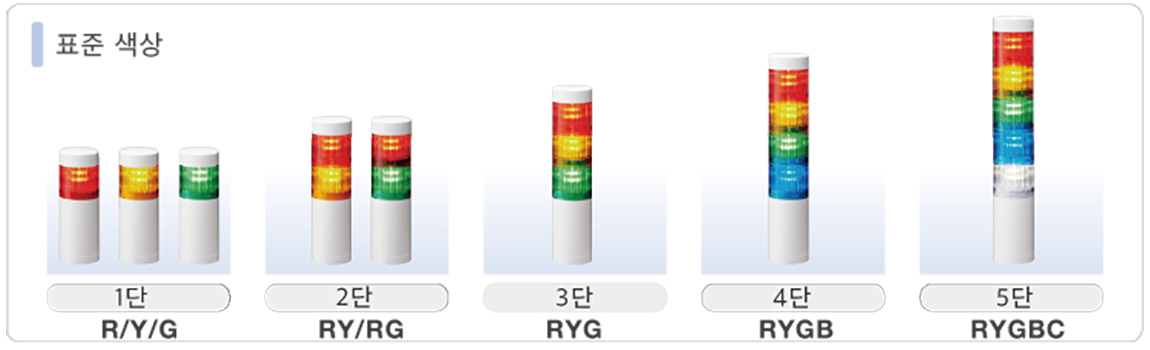

 표준 색상 이외의 제품을 희망하시는 경우에는 본사로 문의해 주세요.

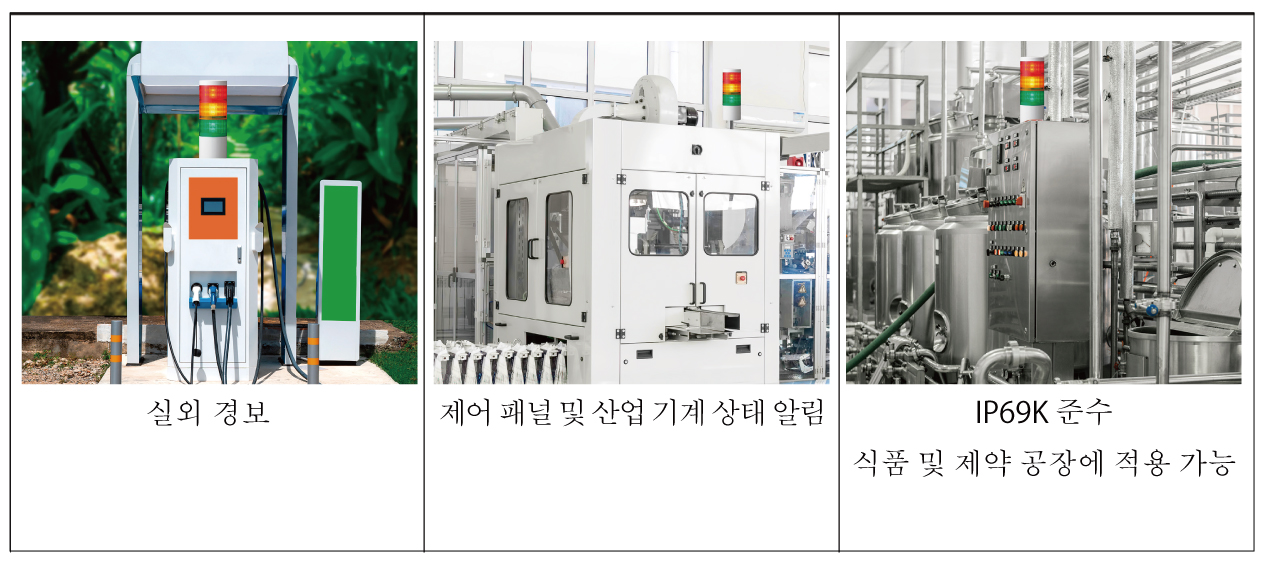

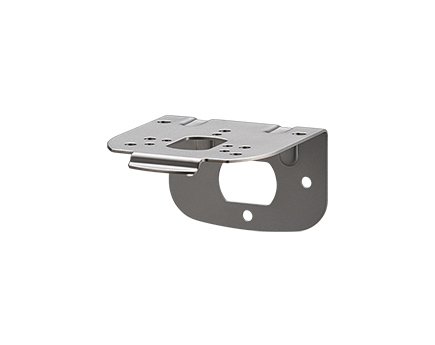

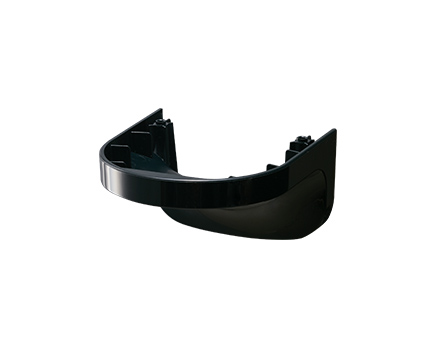

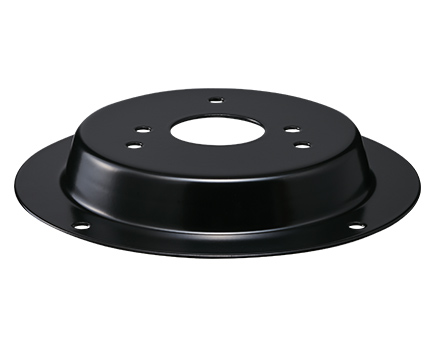

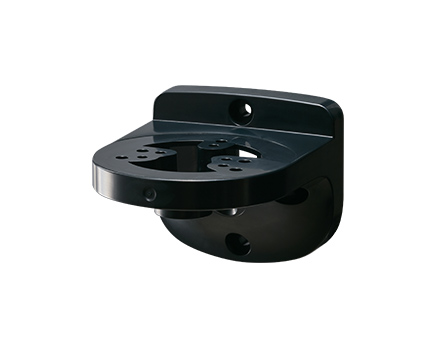

사용 예





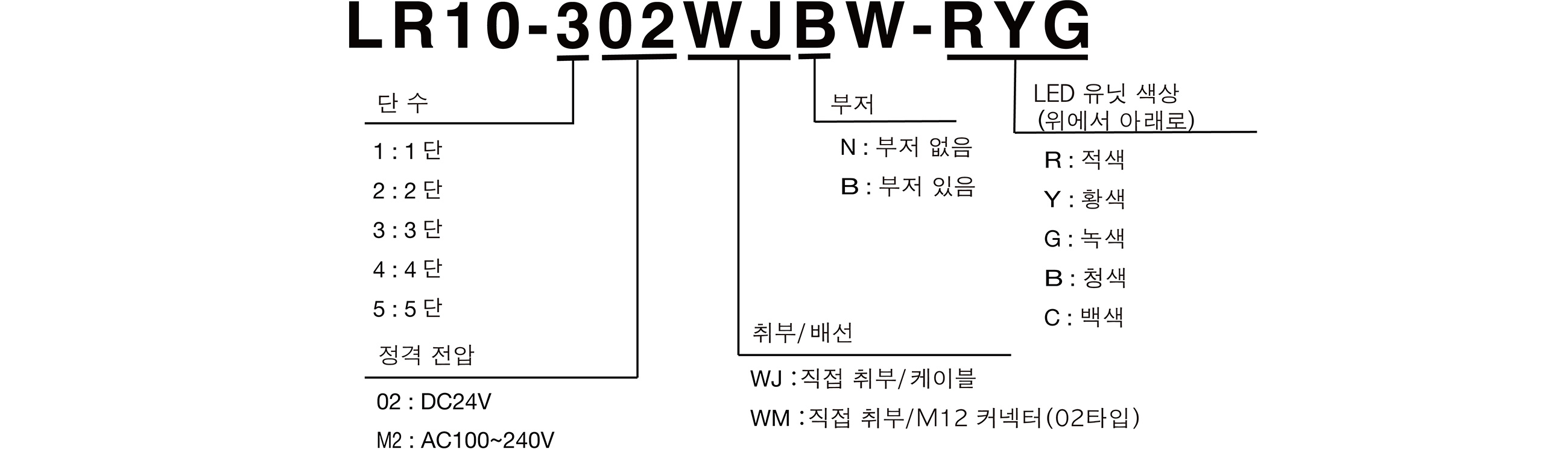

제품 목록

제품 목록

단 수

정격 전압

부저

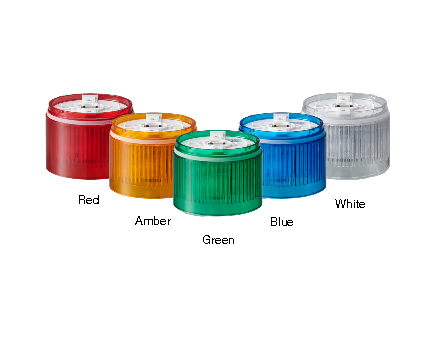

LED 유닛 색상

LR10-102WJNW-R/Y/G 1 DC24V

부저 없음

적색/황색/녹색

LR10-202WJNW-RY/RG 2

적색·황색/적색·녹색

LR10-302WJNW-RYG 3

적색·황색·녹색

LR10-402WJNW-RYGB 4

적색·황색·녹색·청색

LR10-502WJNW-RYGBC 5

적색·황색·녹색·청색·백색

LR10-1M2WJNW-R/Y/G 1 AC100-240V

적색/황색/녹색

LR10-2M2WJNW-RY/RG 2

적색·황색/적색·녹색

LR10-3M2WJNW-RYG 3

적색·황색·녹색

LR10-402WJBW-RYGB 4

적색·황색·녹색·청색

LR10-502WJBW-RYGBC 5

적색·황색·녹색·청색·백색

LR10-102WJBW-R/Y/G 1 DC24V

부저 있음

적색/황색/녹색

LR10-202WJBW-RY/RG 2

적색·황색/적색·녹색

LR10-302WJBW-RYG 3

적색·황색·녹색

LR10-402WJBW-RYGB 4

적색·황색·녹색·청색

LR10-502WJBW-RYGBC 5

적색·황색·녹색·청색·백색

LR10-1M2WJBW-R/Y/G 1 AC100-240V

적색/황색/녹색

LR10-2M2WJBW-RY/RG 2

적색·황색/적색·녹색

LR10-3M2WJBW-RYG 3 적색·황색·녹색
LR10-4M2WJBW-RYGB 4

적색·황색·녹색·청색

LR10-5M2WJBW-RYGBC 5

적색·황색·녹색·청색·백색

LR10-302WMNW-RYG 3 DC24V

(M12 커넥터)

부저 없음

적색·황색·녹색
LR10-02WJNW 0 DC24V

부저 없음

LED 유닛 없음

LR10-M2WJNW 0 AC100-240V

부저 없음

LED 유닛 없음
LR10-WMNW 0 DC24V

(M12 커넥터)

부저 없음

LED 유닛 없음

(*)이 사이트의 데이터 다운로드 서비스는 다음 ""에 동의 한 것으로 간주됩니다.

(*)이 사이트의 데이터 다운로드 서비스는 다음 ""에 동의 한 것으로 간주됩니다.

LR10  

LR10  

보수 부품

구분 No. 품명 품번 수량 사양 교체 시기의 기준

																헤드 커버
GA0001577-F1 1

																방수 개스킷
GA0001587-F1 1

																개스킷
GA0001588-F1 2~7  단수에 따라 변경됩니다
