- IP67/IP69K 등급.고온 고압 세척에도 안전

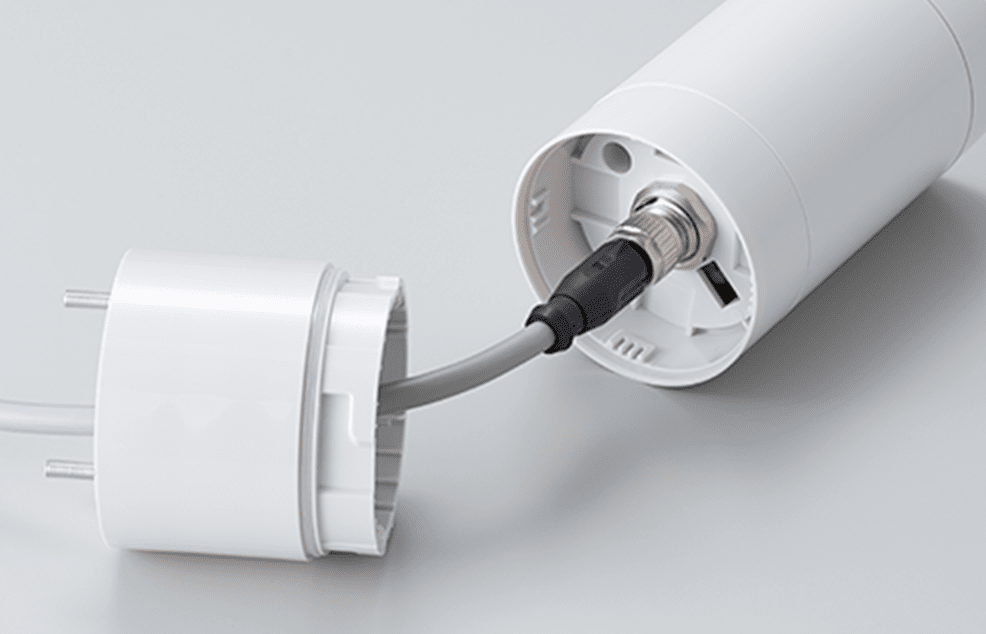

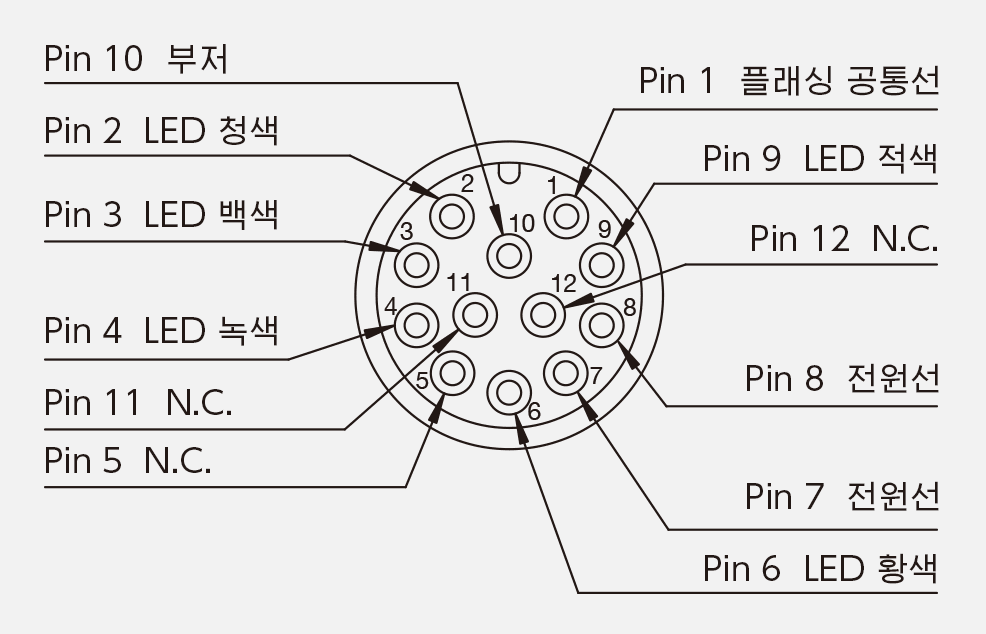

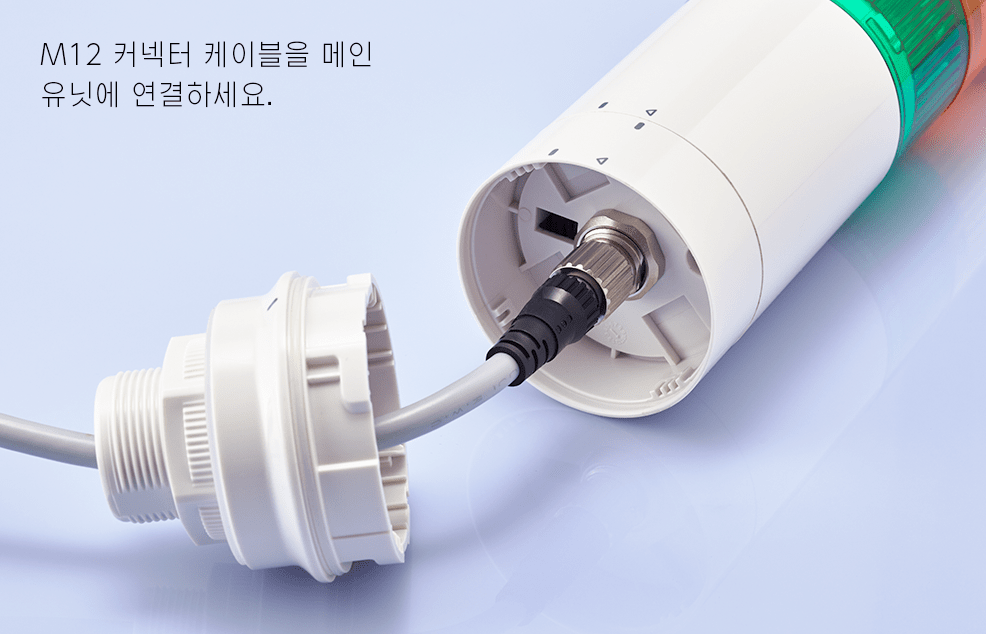

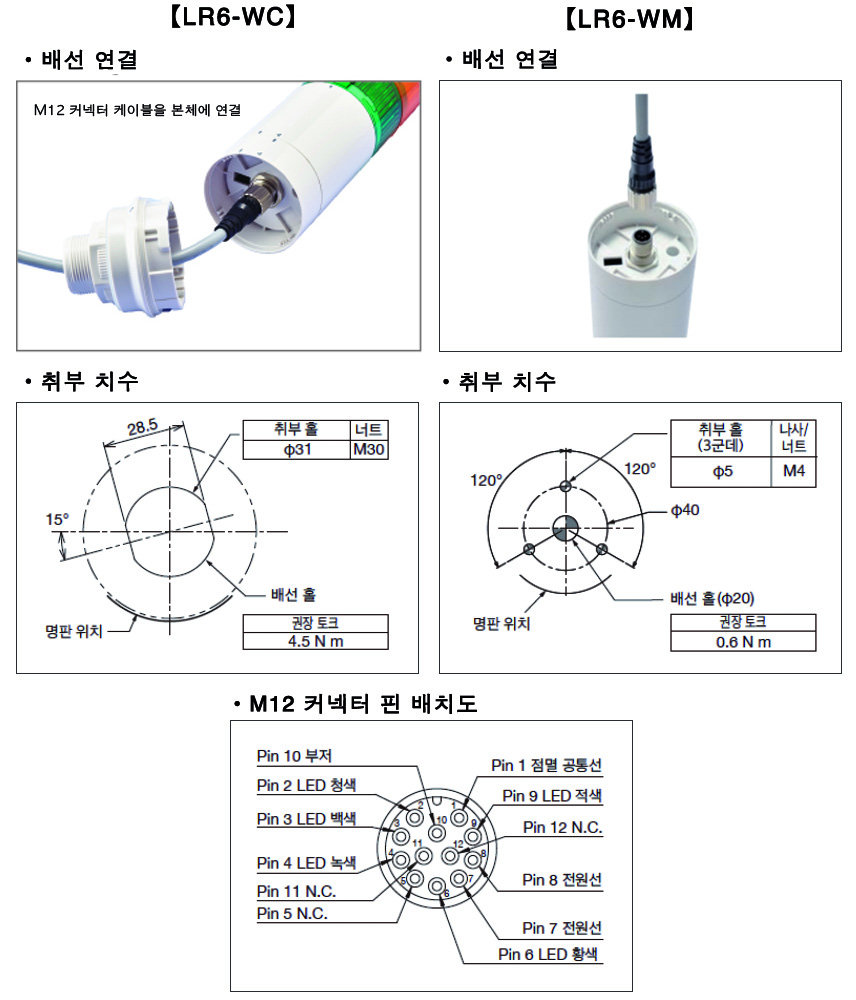

- 손쉬운 설치를 위한 M12 커넥터 - 작업 시간 절약

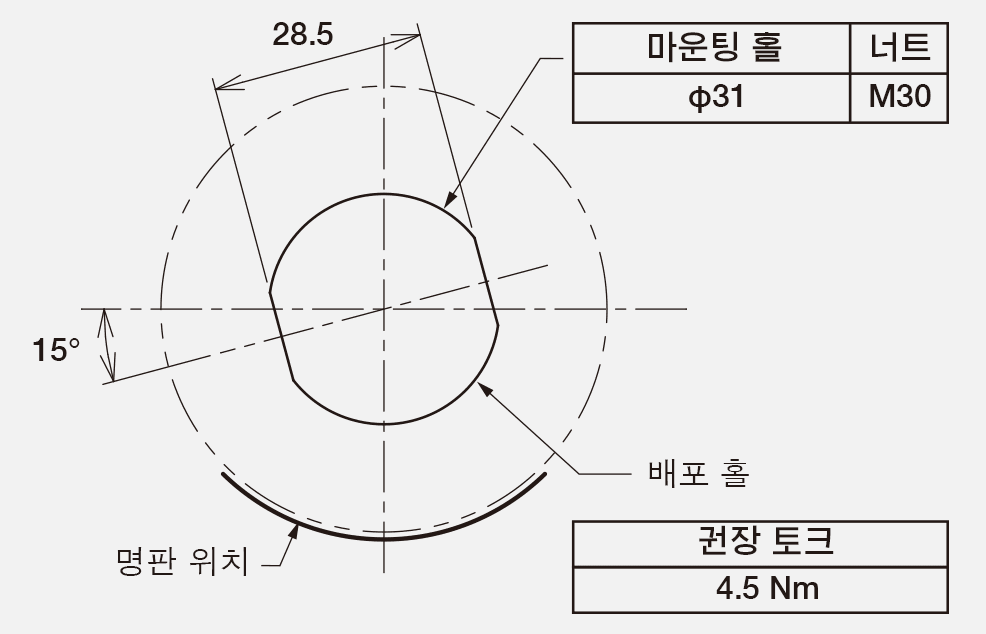

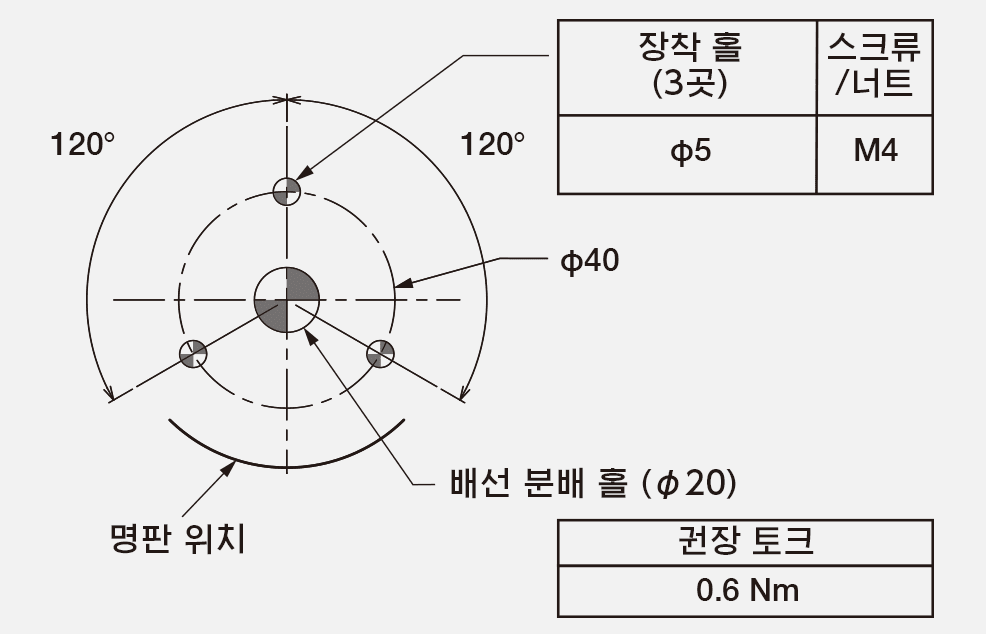

- 2가지 취부 방법: M30 너트 또는 3포인트 홀 취부
|정격 전압||24V DC|
|보호 등급||IP67(IEC 60529)/ IP69K(DIN 40050 PART9)|
・UL Component recognized (미국)
・cUL Component recognized (캐나다)

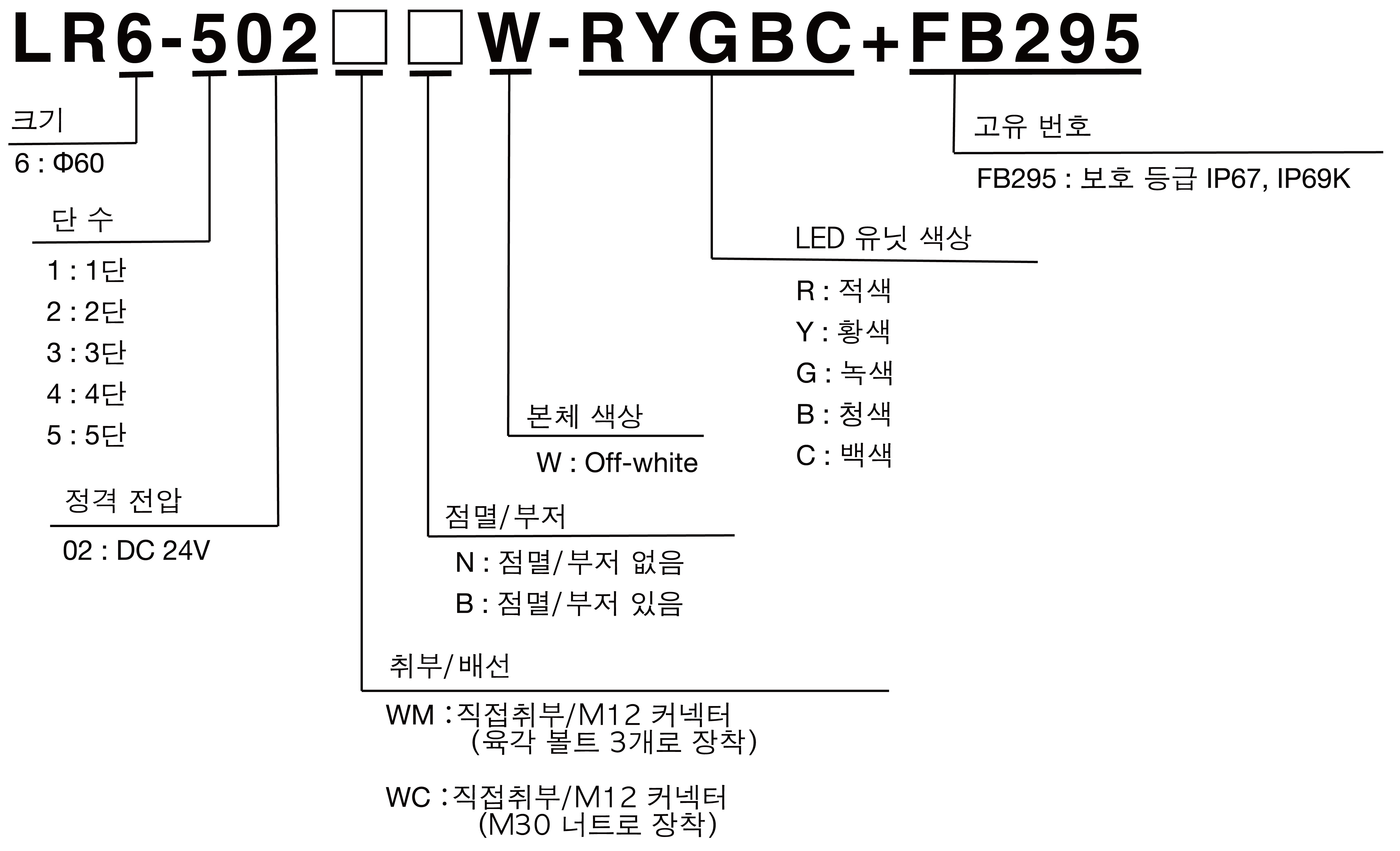

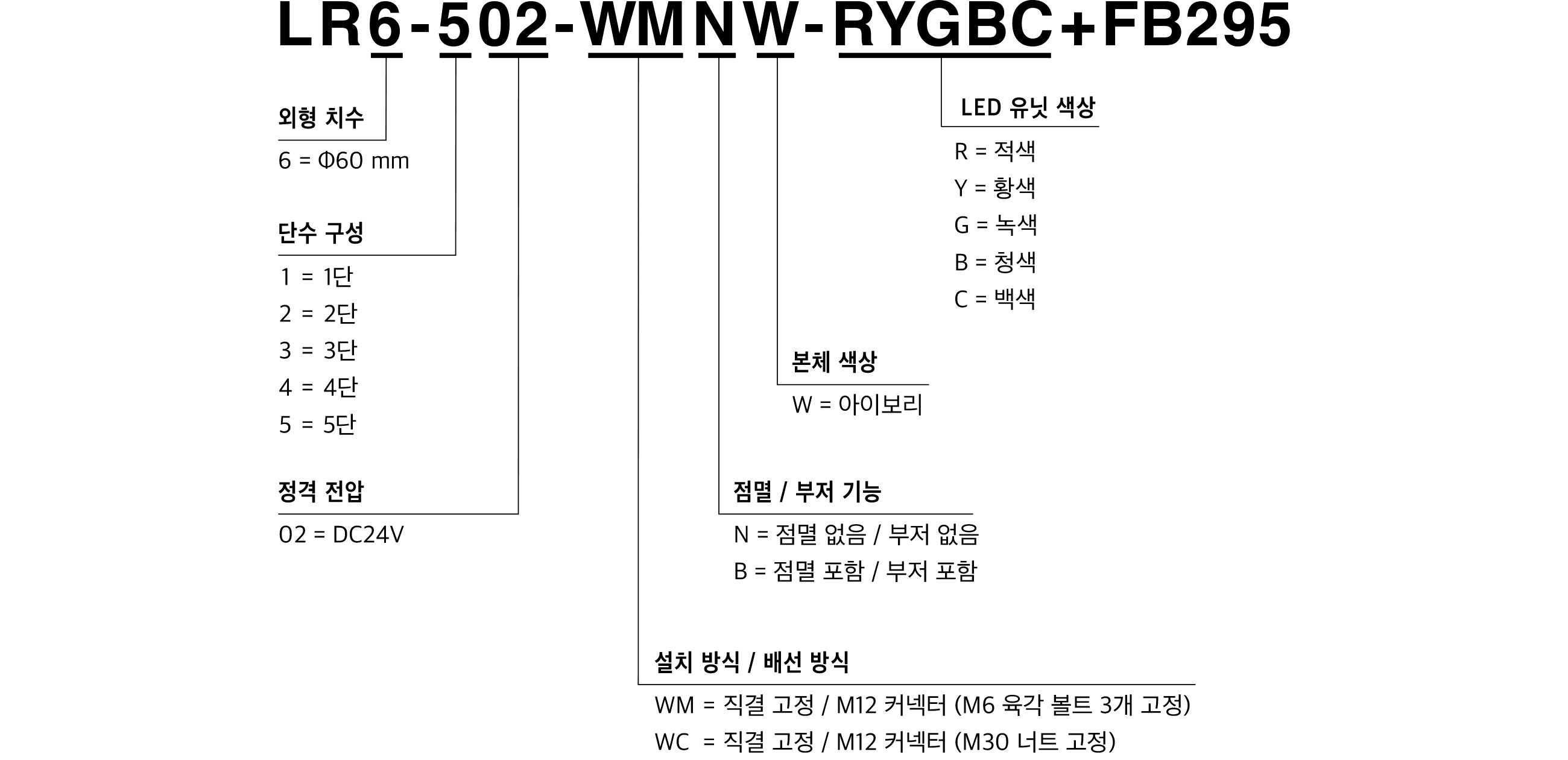

모델 번호 구성
테스트 장소: 일본 품질 보증 기구
(JQA 북부 간사이 시험 센터)
취급 설명서/사양/외관 치수
