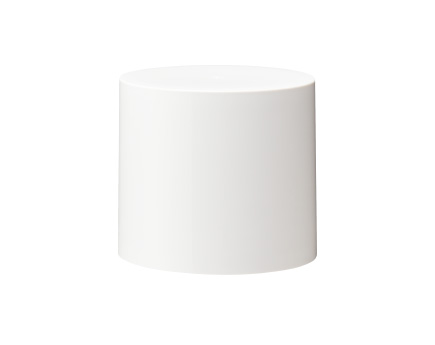

- 시그널 타워
- LR6+FB295 시리즈에 장착 시 IP67/IP69K 등급을 유지합니다.
- 부저 음압 88dB. 4가지 부저음에서 선택합니다.
|부저음 / 일반 주파수||No.1||빠른 간헐적 사운드 / 3378Hz|
|No.2||연속음 / 3378Hz|
|No.3||빠른 고음-저음 / 2016Hz&3012Hz|
|No.4||스윕음 / 1000Hz~4032Hz|
|설정||DIP 스위치로 설정 변경
사양서 부저 패턴 설정 참조
|부저 음압||Typ.88dB||감음 약 -10dB
DIP 스위치로 설정 변경
사양서 부저 패턴 설정 참조

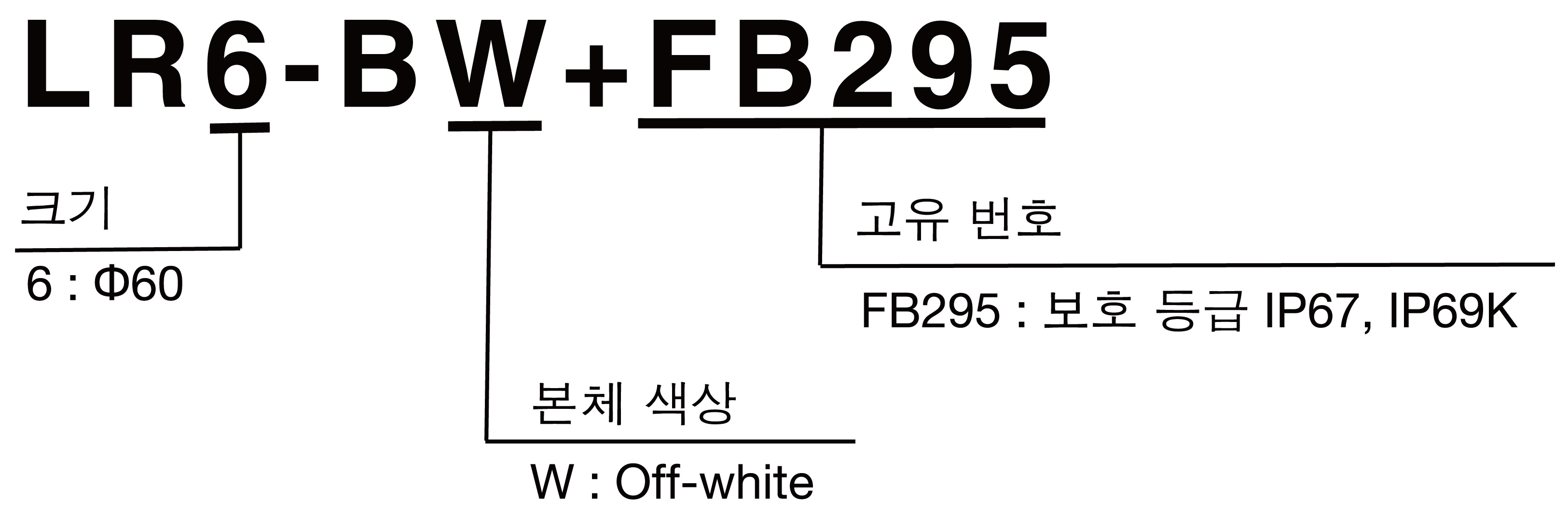

모델 번호 구성
취급 설명서/사양/외관 치수
