■3가지 운영 모드로 다양한 상황에 응용 가능
１. 심플 모드

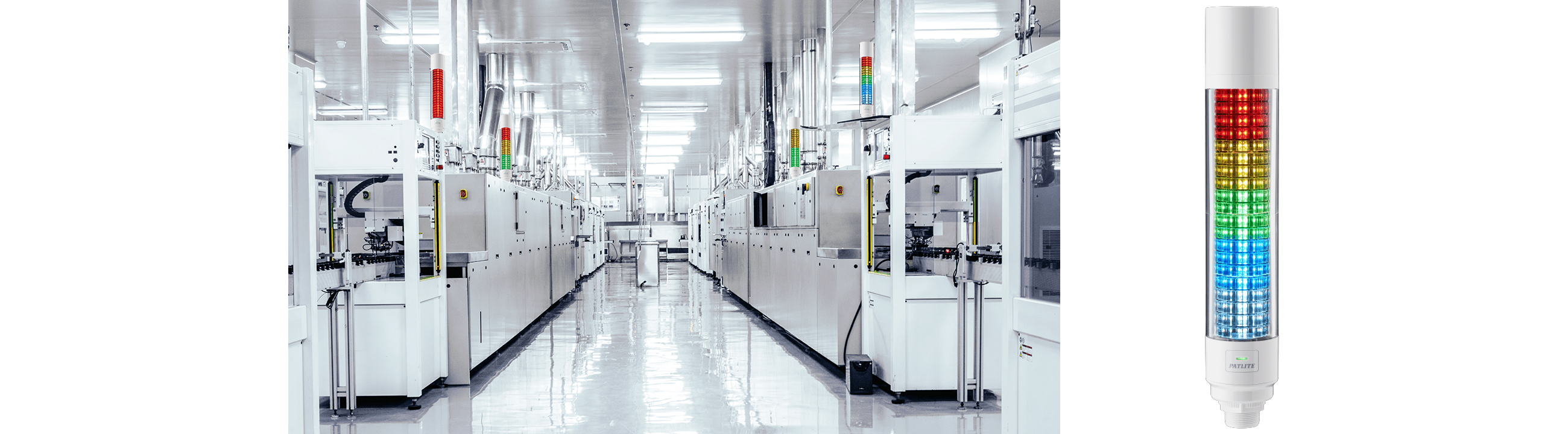

장비 상태의 시각화
점등 영역을 손쉽게 1~5단으로 나누고, 각 단의 색상과 점멸 패턴을 자유롭게 설정할 수 있습니다.

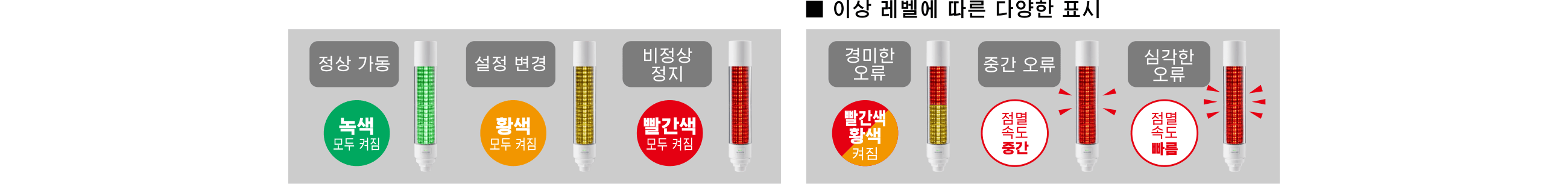

■이상 레벨에 따른 다양한 표시
２. 잔량 측정 모드

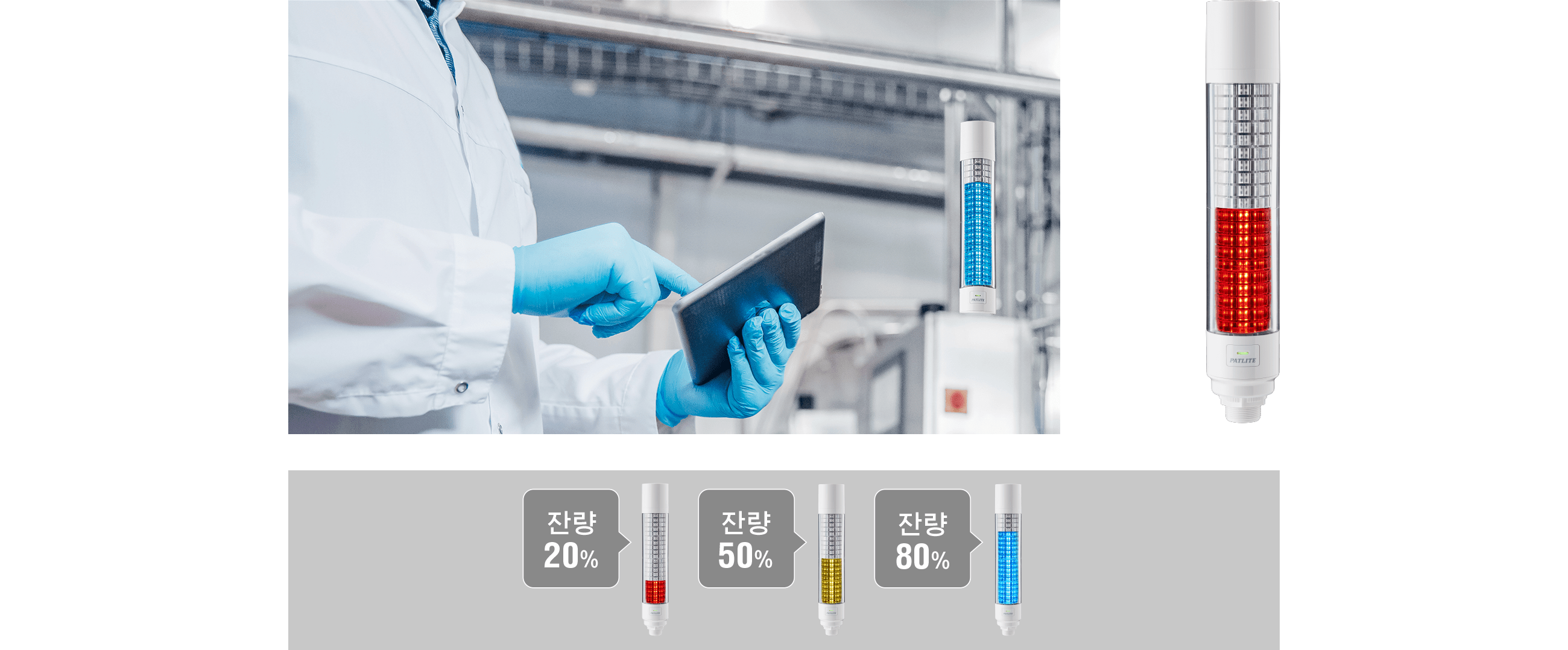

탱크 잔량 및 온도 정보 등의 시각화
탱크 수위에 따라 사전 설정된 조명 패턴이 활성화됩니다.
재료 보충 시기와 기계 상태 변화를 쉽게 표시할 수 있습니다.
３. 애니메이션 모드

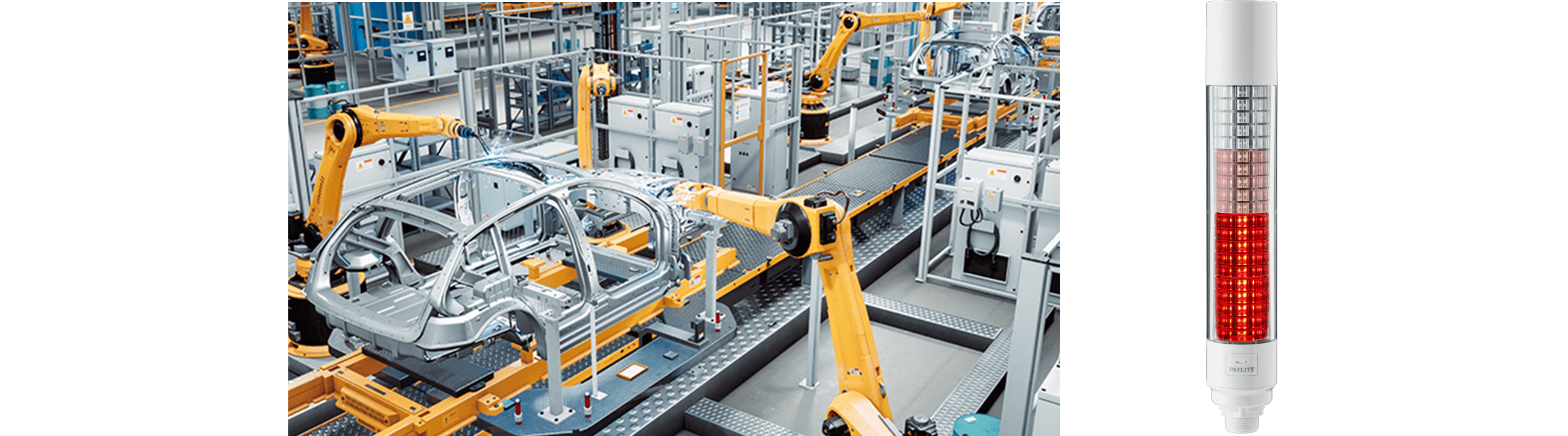

생산 라인의 택 타임 시각화
사전 설정된 색상이 아래에서 위로, 또는 위에서 아래로 변화하여 경과 시간을 시각화합니다.
■간편한 연결로 공수를 크게 절감

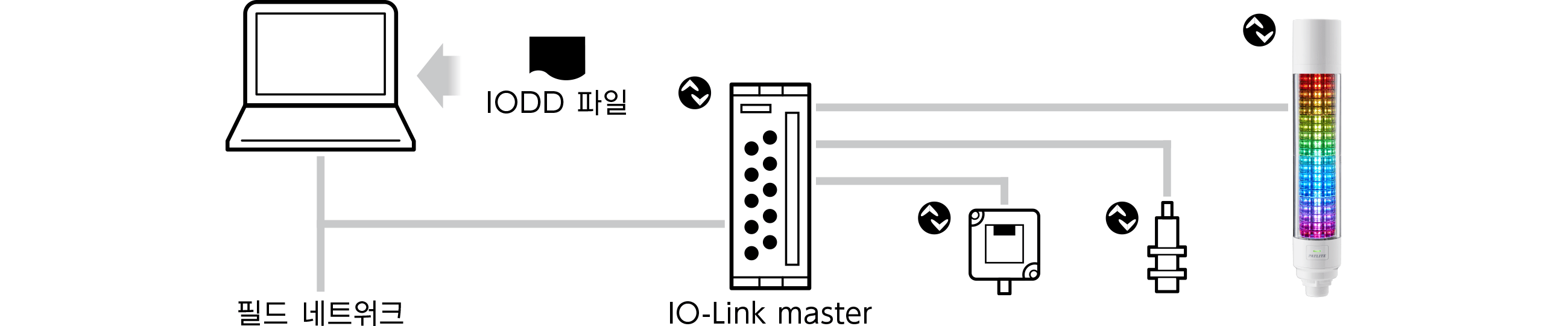

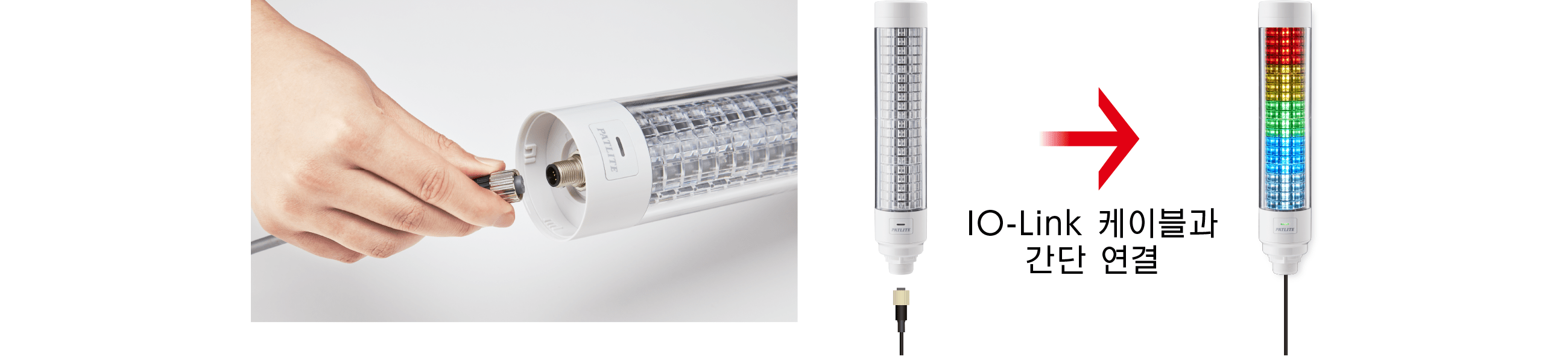

도구 없이 IO-Link 케이블 하나로 LB6을 손쉽게 연결할 수 있습니다.
교환 시에도 연결만으로도 초기 설정으로 자동 복구합니다.
당사의 독자적이고 쉬운 설정 도구로 다양한 표시가 가능합니다.

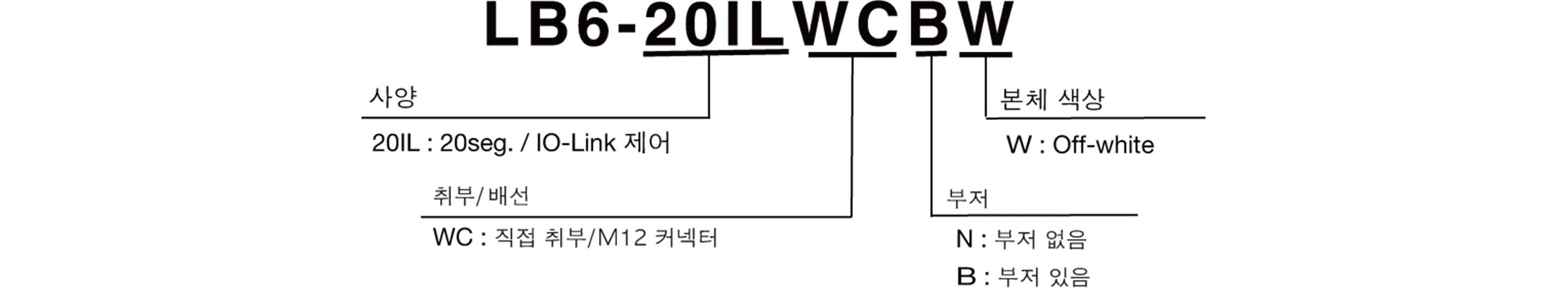

모델 번호 구성
심플 모드 잔량 측정 모드 애니메이션 모드
PDF 카탈로그 다운로드
취급 설명서/사양/외관 치수
