75mm 슬림 MP3 음성 합성 경보기
BSV

 BSV는 슬림한 디자인의 MP3 재생 경보기로, 사전에 녹음한 MP3 파일로 뛰어난 사운드를 출력합니다. 컴팩트한 사이즈로 패널에 알맞게 취부되며, PATLITE의 SD카드(별도 판매)와 PATLITE의 무료(다운로드) 프로그래밍 소프트웨어를 이용하여 프로그래밍 할 수 있습니다.

  • 접점제어
  • □75
  • MP3 음성 합성 경보기
  • 알람
  • 음성합성
  • 87dB
  • 실내
  • 실외
  • IP54
  • 75mm 슬림 MP3 음성 합성 경보기 BSV
  • 슬림한 디자인:
    소형화된 생산 라인 장비에 부합하는 당사에서 가장 슬림한 제품으로, 깊이가 19.9mm인 컴팩트한 디자인입니다.
    슬림한 모양임에도 최대 87dB(at 1m)의 사운드를 출력할 수 있습니다.
    전면 패널에서 볼륨을 쉽게 조절할 수 있고, 3.5W(max.)의 낮은 소비전력은 전원 공급의 과부하를 덜어줍니다.

  • 간단한 설치:
    전면에서 커버를 쉽게 분리하여 설치 및 볼륨 조절을 할 수 있으며, 유지 보수를 위한 작업 시간을 줄일 수 있습니다.

  • 메시지 덮어쓰기:
    SD 카드 슬롯이 있어 SD 카드를 사용하여 MP3 데이터를 사용할 수 있습니다.
    전용 애플리케이션 소프트웨어를 사용하여 메시지 덮어쓰기 외에도 MP3 데이터 파일명을 변경하거나 소프트웨어 없이 덮어쓰는 것이 가능합니다.

Movie

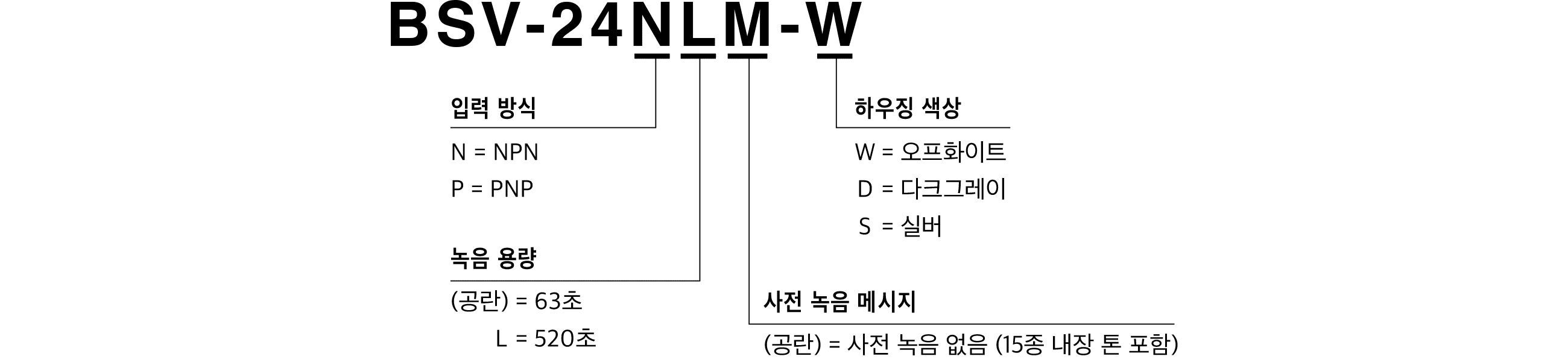

모델 사양

정격 전압 - 12/24V DC
취부 형식 - 수직 위치의 패널 취부
본체 색상 - 다크 그레이
- 오프 화이트
- 실버
음압 - 최대 87dB (패널 취부 시 1m 기준)
- 최대 85dB (벽면 취부 시 1m 기준)
음원 - L 모델: 예상 녹음 시간: 520초 (Bit rate=64k/s)
- 표준 모델: 예상 녹음 시간: 63초 (Bit rate=64k/s)
채널 선택 - 비트 입력: 4
- 바이너리 입력: 15
취득 인증 - CE
- UL
- RoHS
보호 등급 - 패널 취부: IP54 (수직 방향만)
- 벽면 취부: IP20
기능 - 일반 재생
- Hold 재생
- 우선순위 입력 재생
- 메모리 재생
비고 - PNP 트랜지스터
- NPN 트랜지스터
옵션 - 플레이리스트 에디터 2 (무료 소프트웨어 버전)

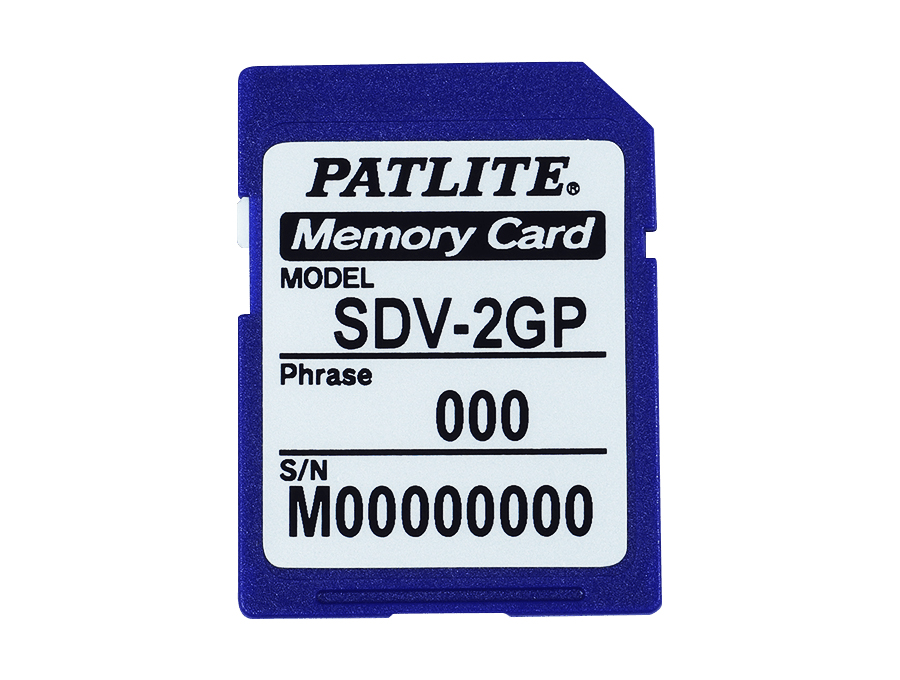

- SDV-2GP: SD 카드 (mp3 파일 전송 및 저장용)

(*)이 사이트의 데이터 다운로드 서비스는 다음 ""에 동의 한 것으로 간주됩니다.

(*)이 사이트의 데이터 다운로드 서비스는 다음 ""에 동의 한 것으로 간주됩니다.

BSV/BSV-L  

BSV/BSV-L  

보수 부품

구분 No. 품명 품번 수량 사양 교체 시기의 기준
전면 커버::오프 화이트 색상
V21110070-1F1 1

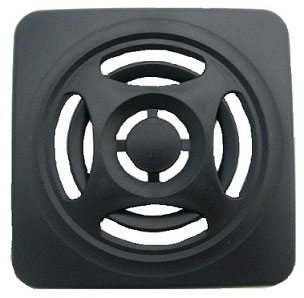

전면 커버:오프 다크 그레이
V21110070-2F1 1
장착 나사 및 O- 링 (2 개)
Z33552121-0308F1 1

-

-
