80mm MP3 음성 합성 경보기

BDV는 사전에 녹음한 MP3 파일로 뛰어난 사운드를 출력하는 MP3 음성 합성 경보기입니다. 패널 취부 방식으로 대부분의 용도에 적절히 어울리는 모습이며, PATLITE의 SD카드(별도 판매)와 PATLITE의 무료(다운로드) 프로그래밍 소프트웨어를 이용하여 프로그래밍 할 수 있습니다.

  • 접점제어
  • □80
  • MP3 음성 합성 경보기
  • 음성합성
  • 87dB
  • 실내
  • 실외
  • IP54
  • 80mm MP3 음성 합성 경보기 BDV
  • 패널 취부 형식으로만 사용할 수 있습니다.
  • 컴팩트한 사이즈임에도 1m에서 최고 87 dB의 큰 사운드를 출력할 수 있습니다.
  • 전면 패널의 볼륨 스위치로 음량을 쉽게 조절할 수 있습니다.
  • SD 카드를 사용하여 본체를 설비에서 분리하지 않고 메시지를 변경할 수 있습니다.
  • EU RoHS 규정을 준수하므로 환경 친화적입니다.
  • 다양한 용도에 맞게 여러 개의 재생 모드를 사용할 수 있습니다.
  • 바이너리 입력 시 최대 15개의 메시지를 선택할 수 있습니다.
  • NPN 오픈 콜렉터 트랜지스터를 사용한 입력을 지원합니다.
  • EU 규정을 준수하고 CE 마크를 포함하고 있습니다. (BDV-15JF만 해당)
  • 설비에 가장 어울리는 색을 선택할 수 있도록 두 가지 색 중에서 선택할 수 있습니다.
  • 보호 등급: IP54 (수평 장착 시 전면의 경우에만 해당)


크기 - 80mm x 80mm x 94.7mm

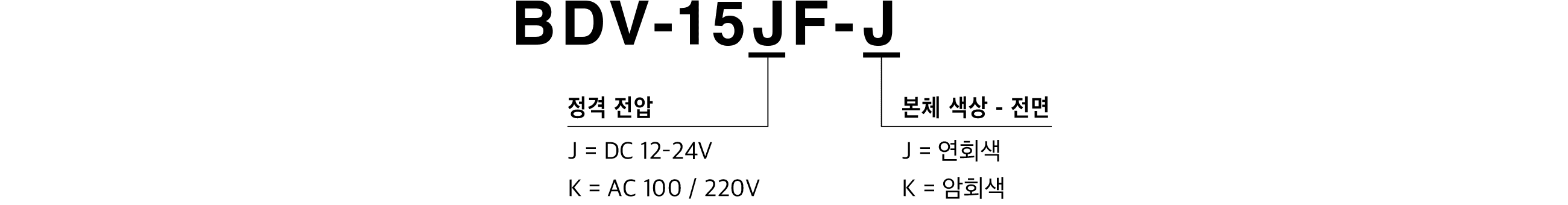

정격 전압 - AC100/220V
본체 색상 - 다크 그레이
- 라이트 그레이
음압 - 최대 87dB (1m 기준)
음원 - 예상 녹음 시간: 63초 (Bit rate=64k/s)
채널 선택 - 1개 또는 4개 단자 신호 입력을 통해 4개 채널 중 1개 선택 가능
- 바이너리 모드에서 4개 단자 중에서 신호 입력을 통해 15개 채널 중 1개 선택 가능
취득 인증 - CE
- RoHS
- Fraunhofer IIS와 Thompson Licensing으로부터 라이선스 받은 MPEG Layer-3 오디오 코딩 기술
보호 등급 - IP54
기능 - 감음 모드로 10dB 감음

(*)이 사이트의 데이터 다운로드 서비스는 다음 ""에 동의 한 것으로 간주됩니다.

(*)이 사이트의 데이터 다운로드 서비스는 다음 ""에 동의 한 것으로 간주됩니다.



보수 부품

구분 No. 품명 품번 수량 사양 교체 시기의 기준

																슬롯 방수 커버
C25110015-F1 1



																단자 커버
C15140003-F1 2



																장착 브래킷 (2 개)
V82100001-F1 2
