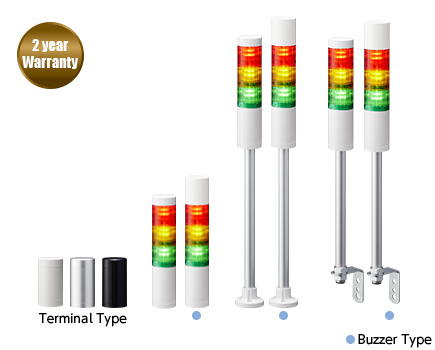

LED 시그널 타워 50mm
LR5

초고휘도 LED, 모듈식 디자인 및 여러가지 사용 환경에 대응 가능한 다양한 옵션을 갖춘 차세대 시그널 타워 시리즈

  • 접점제어
  • 시그널 타워
  • Φ50
  • 점등
  • 점멸
  • 알람
  • 85dB
  • 실내
  • IP65
  • IP54
  • 적색
  • 황색
  • 녹색
  • 청색
  • 백색
  • LED 시그널 타워 50mm LR5
  • 렌즈를 재설계하고 모듈 구조를 개선하여 먼 거리에서도 보일 수 있을 정도로 밝아졌습니다.
  • 재설계되고 완전히 밀폐된 사운드 모듈로 방대한 양의 물과 먼지로부터 제품을 보호하는 동시에 모든 방향으로 커다란 사운드를 생성합니다. (DC12V LR5: 80dB / DC24V LR4 & LR5: 85dB, LR6: 88dB, LR7: 90dB at 1m)
  • LED 유닛과 사운드 모듈을 쉽게 커스터마이징하고 현장에서 구성할 수 있는 "Twist and Lock(트위스트 락)" 디자인의 모듈식 제품입니다.
  • 열악한 환경에서도 최고의 성능을 발휘할 수 있는 세련되고 매끄러운 형태로, IP65 보호 등급의 견고한 본체 구조를 지니고 있습니다.
  • 기본 본체 색상: 오프화이트 / 실버나 블랙 색상 본체는 별도 구매 (DC 24V만 해당)
  • 단자대 타입의 본체는 오프화이트, 실버 또는 블랙 색상으로 구입 가능합니다. (LR5-WT & LR5-KT DC 24V만 해당)
  • 4가지 취부 옵션: 직접 취부, L-브래킷 포함 pole 취부, 원형 브래킷 포함 pole 취부, 각도 조절* 브래킷 취부 (*오프화이트 색상만 가능)
  • DC 12V와 DC 24V 전압으로 사용이 가능합니다.

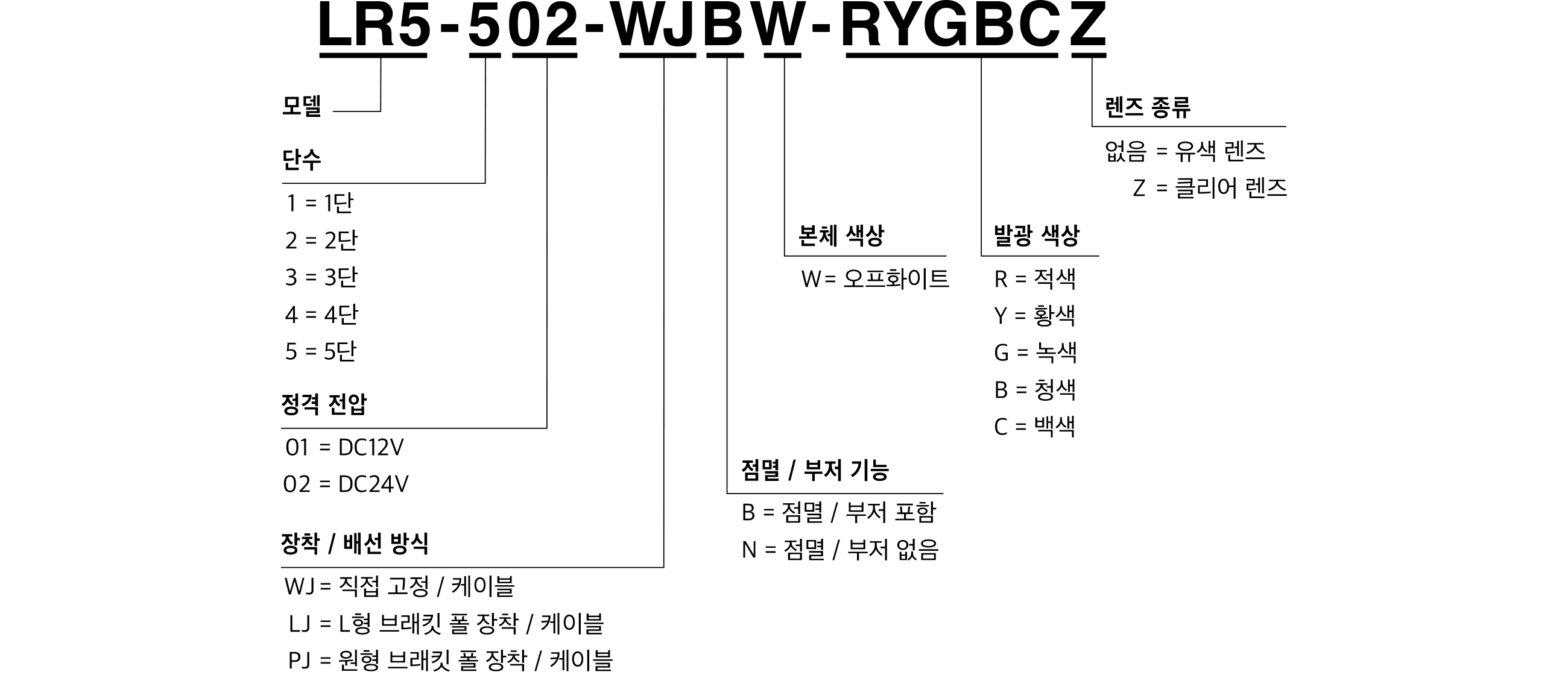

Model Code



사양

사용 주위 온도 -20℃ - +50℃
사용 습도 범위 90% RH 이하, 결로 현상이 없을 것
보관 온도 범위 -30℃ - +60℃
보관 습도 범위 90% RH 이하, 결로 현상이 없을 것
취부 위치 실내
취부 방향 수직
보호 등급*1 IP65(IEC 60529) / NEMA TYPE 4X, 13
보호 등급의 환경조건 수직
절연 저항 충전부와 비충전 금속부간 DC 500V 1MΩ 이상
내전압 충전부와 비충전 금속부간 절연이 파괴되지 않은 상태에서 1분에 AC 500V (M2: AC 1500V for 1 min.)
점멸 횟수 60 ±2 Flashes / min.
음압 LR5 DC24V Typ. 85dB / DC12V Typ. 80dB
감음*2 약 -10dB 감소
음압의 환경조건 1m 거리 모든 방향에서 부저음 No.4 (스윕음)
부저음 4가지 패턴*2 1번: 빠른 간헐적 사운드 2번: 연속음 3번: 빠른 고음-저음 4번: 스윕음
지원되는 트랜지스터 NPN / PNP
취득 인증 • UL 508, CSA-C22.2 No.14
• FCC Part 15 Subpart B Class A
• RoHS Directive (EN IEC 63000)
• EMC Directive (EN 61000-6-4, EN 61000-6-2)
• KC (KN 61000-6-4, KN 61000-6-2)*3
• Low-voltage Directive (IEC/EN 60947-5-1, EN62471)*4

*1: LJ 타입은 IP54   *2: DIP스위치 설정에 따라 다름   *3: KT 타입, WT 타입과 M2 LJ 타입 제외   *4: M2 타입만 해당 (LJ 타입 제외)



LED 유닛 사양

색상 적색 황색 녹색 청색 백색
신호선 소비 전류(각 유닛당) / 소비 전력 (각 유닛당) Typ. 40mA / 1W
Max. 45mA / 1.3W



부저 유닛 사양

신호선 소비 전류 (각 부저당) / 소비 전력 (각 부저당) Typ. 40mA / 1W
Max. 250mA / 1.3W
