IO-Link 시그널타워

IO-Link 마스터에 손쉽게 설치하는 IO-Link 시그널 타워 시리즈입니다.

  • 네트워크 제품
  • IO-Link
  • 시그널 타워
  • Φ60
  • 점등
  • 점멸
  • 플래시
  • 알람
  • 실내
  • IP65
  • 적색
  • 황색
  • 녹색
  • IO-Link 시그널타워 LR6-IL
  • IO 링크 마스터와 원활하게 통합됩니다.io-link.com에서 IO-Link에 대해 자세히 알 수 있습니다.
  • 빠르고 쉬운 설치를 위해 M12 커넥터(5핀)가 내장되어 있습니다.

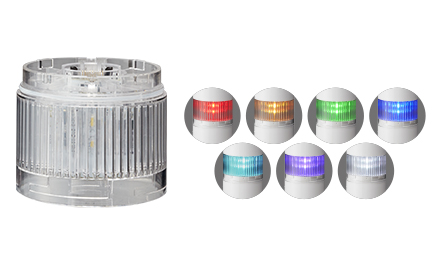

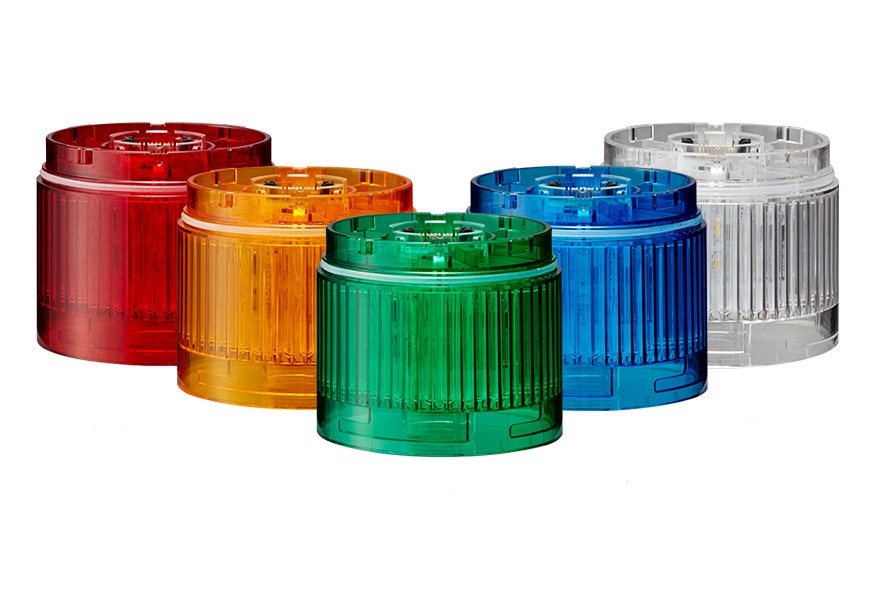

  • 단색, 멀티 컬러 및 Clear렌즈 LED 유닛의 조합을 선택할 수 있습니다.
  • 부저 및 무선 데이터 수집 시스템을 옵션으로 사용할 수 있습니다.

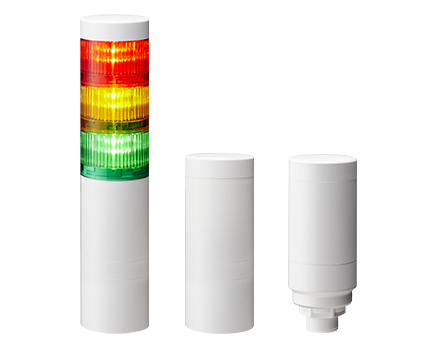

  • 모듈식 구조로, LED 유닛 및 옵션 부품을 쉽게 구성 할 수 있습니다.
  • OMRON Corporation "NX 시리즈 IO-Link 마스터 장치"와의 IO-Link 연결 안내서를 보려면 여기를 클릭하십시오.
    (이 문서에 관한 문의 사항은 OMRON Corporation에 문의하십시오.)

제품 사양

제품명 사전 조립 모델
(직접 취부)

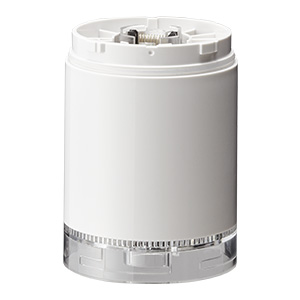

본체 유닛
(직접 취부)
본체 유닛

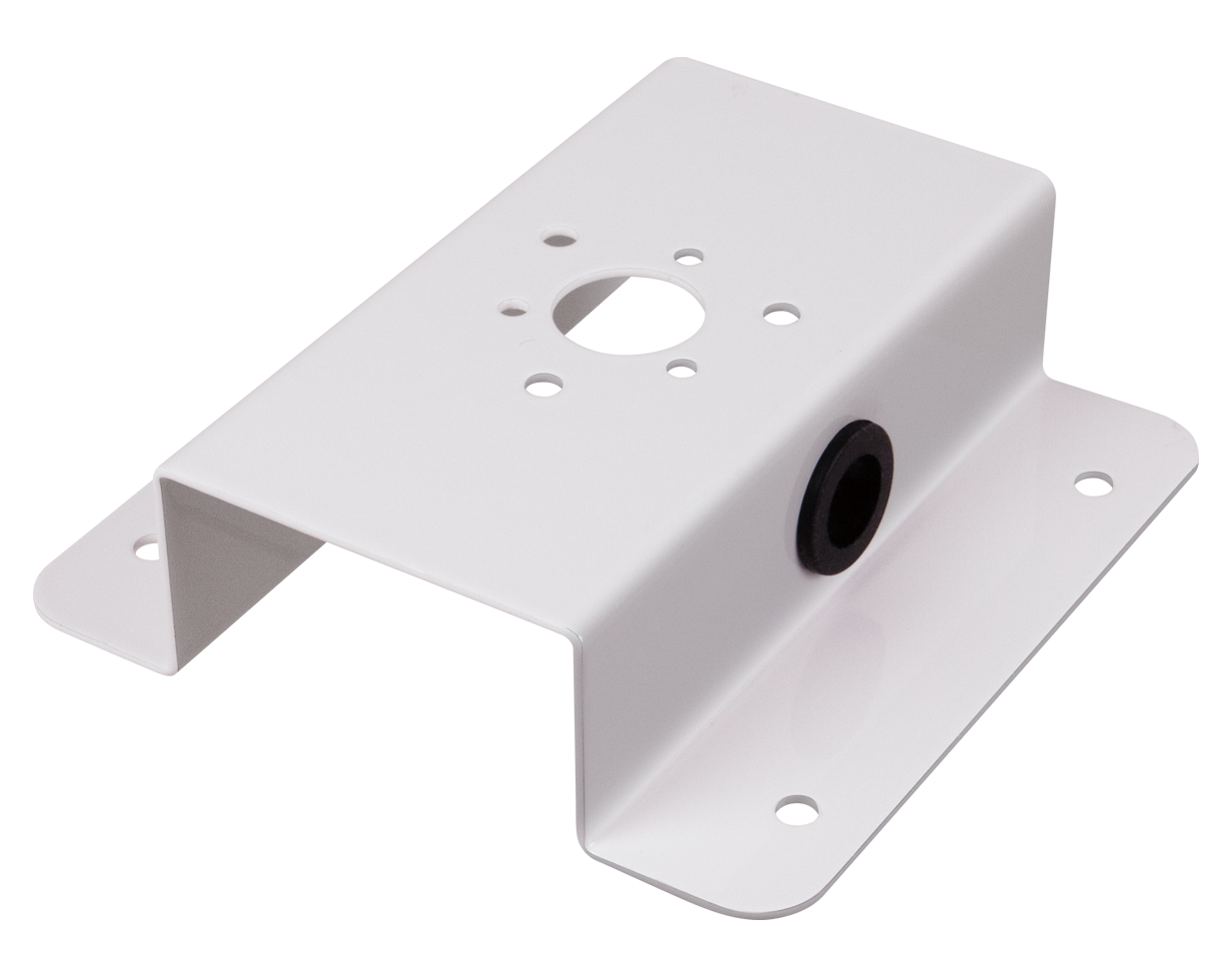

(1/2" NPT 브래킷 또는 직접 취부)
크기 60mm
단 수 LED 유닛 : 최대 5단, 1개의 부저
LED 유닛 적색 / 황색 / 녹색
(LED 유닛 추가 및 변경 가능)
별도 판매 별도 판매
LED 동작 사양 점등 / 점멸
부저 음압 Typ. 84dB (LR6-BW 사용 시)
사운드 유형 4가지 사운드 유형 중 선택 가능 (LR6-BW 사용 시)
보호 등급 IP65 (NEMA typ. 4X, 13)
배선 M12 Connector 5 pins
