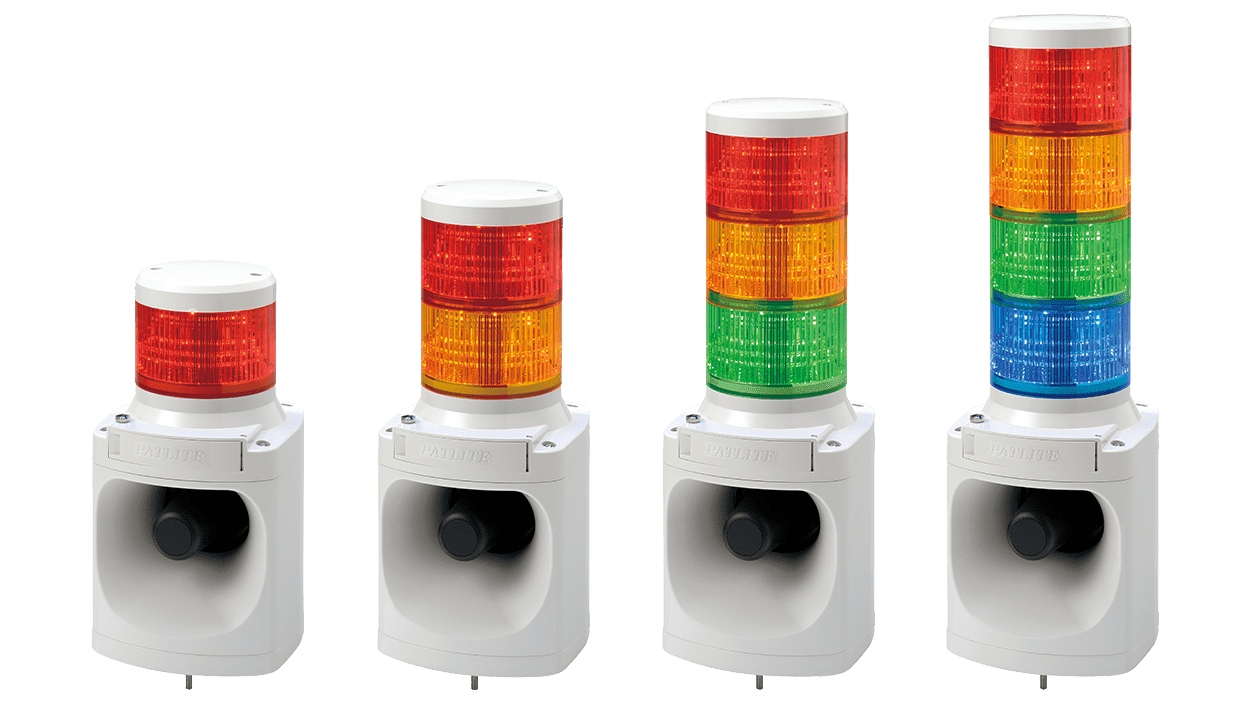

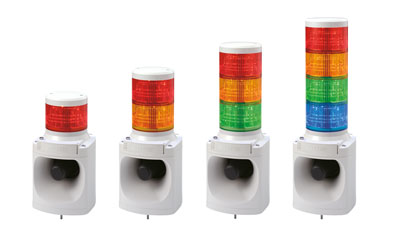

Φ100mm LED 점등형 시그널 타워 일체형 MP3 음성 합성 경보기
LKEH-FV

LKEH 시리즈는 혼 스피커과 시그널 타워가 결합한 제품으로, 더 우수한 사운드와 기능을 발휘합니다. LKEH-FV 사용 시, 플레이리스트에디터2 소프트웨어 사용을 권장합니다. 플레이리스트에디터2는 홈페이지에서 다운로드가 가능합니다.

  • 접점제어
  • 시그널 타워
  • Φ100
  • 점등
  • 점멸
  • 하이브리드 제품
  • 음성합성
  • 105dB
  • 실내
  • IP53
  • 적색
  • 황색
  • 녹색
  • 청색
  • 백색
  • Φ100mm LED 점등형 시그널 타워 일체형 MP3 음성 합성 경보기 LKEH-FV

LKEH-FV 사용하기 위해서는 플레이리스트에디터2 소프트웨어가 필요합니다.
플레이리스트에디터2 소프트웨어를 이용해서 음성 파일을 입력할 수 있습니다.
해당 소프트웨어는 홈페이지에서 다운로드 받으실 수 있습니다.

  • 고휘도 LED와 100mm 렌즈를 사용하므로 먼 거리에서도 볼 수 있습니다.
  • 견고한 2G 내진 설계로 진동이 많은 환경에서 사용해도 안전합니다.
  • LED 및 전자음 신호 모두 한 가지의 공통선을 사용하므로 제어하기 쉽습니다.
  • CE, RoHS, IP53, (UL, c-UL 해당 타입에 따름)
  • SD 카드로 현장에서 설정할 수 있습니다. (별도 판매)
    5채널 비트 입력, 31채널 바이너리 입력으로 63초 (64kbit/s) 재생이 가능합니다.
  • 볼륨은 다양한 환경에 맞게 0 ~ 105dB (at 1m)까지 조절할 수 있습니다.
  • LED 렌즈 표면은 매끄럽습니다.

※ PATLITE Corporation은 일본 외에서 LKEH-FA, FC 및 FD 유형으로 녹음된 일부 저작권이 있는 음악 또는 노래를 사용하도록 허가를 신청하지 않았습니다. 이 문제에 관한 상세 정보는 한국페트라이트에 문의하시기 바랍니다.

사양

크기 Φ100mm
정격 전압 DC 24V
AC 100V
AC 220V
사운드 특징 LKEH-FV : 5채널 비트 입력, 31채널 바이너리 입력으로 63초 (64kbit/s) 재생 가능
* Fraunhofer IIS 및 Thompson Licensing에서 라이선스를 받은 MPEG Layer-3 오디오 코딩 기술
음량 최대 105dB (at 1m) 음량 조절 가능
본체 색상 사전 조립, 사전 배선, 구매 후 교체 및 적층 가능한 모듈식 타입
본체 특징 라이트 그레이
LED 유닛 색상 적색
황색
녹색
청색
백색
LED 유닛 재질 폴리카보네이트 수지
보호 등급 IP53
옵션품 SDV-2GP

(*)이 사이트의 데이터 다운로드 서비스는 다음 ""에 동의 한 것으로 간주됩니다.

(*)이 사이트의 데이터 다운로드 서비스는 다음 ""에 동의 한 것으로 간주됩니다.

LKEH-FV  

LKEH-FV  

보수 부품

구분 No. 제품 설명 모델 번호 필요 수량 사양 교체 시기 기준

																헤드 커버
B32310054-F1 1

																LED 유닛 : 적색
B72100151-1F1 1~4: 단 수에 따라 달라집니다

																LED 유닛 : 황색
B72100151-2F1 1~4: 단 수에 따라 달라집니다.

																LED 유닛 : 녹색
B72100151-3F1 1~4: 단 수에 따라 달라집니다.

																LED 유닛 : 청색
B72100151-4F1 1~4: 단 수에 따라 달라집니다.

																LED 유닛 : 백색
B72100151-7F1 1~4: 단 수에 따라 달라집니다

																LKEH용 샤프트 : 1 단용 (2 개입)
B62910033-1F2 2

센터 샤프트 : 1 단용 O-링 와 평 와셔 세트〔각 2개들이〕M4×87mm


																LKEH용 샤프트 : 2 단용 (2 개입)
B62910033-2F2 2

센터 샤프트 : 2 단용 O-링 와 평 와셔 세트〔각 2개들이〕M4×147mm


																LKEH용 샤프트 : 3 단용 (2 개입)
B62910033-3F2 2

센터 샤프트 : 3 단용 O-링 와 평 와셔 세트〔각 2개들이〕M4×207mm


																LKEH용 샤프트 : 4 단용 (2 개입)
B62910033-4F2 2

센터 샤프트 : 4 단용 O-링 와 평 와셔 세트〔각 2개들이〕M4×267mm


																전면 커버
C21100087-F1 1
