높은 내구성 및 신뢰성

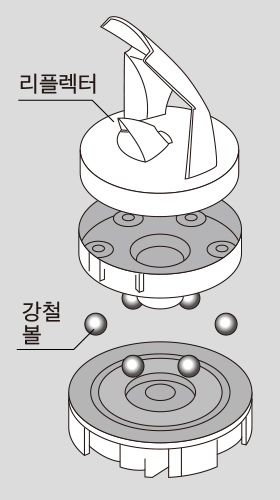

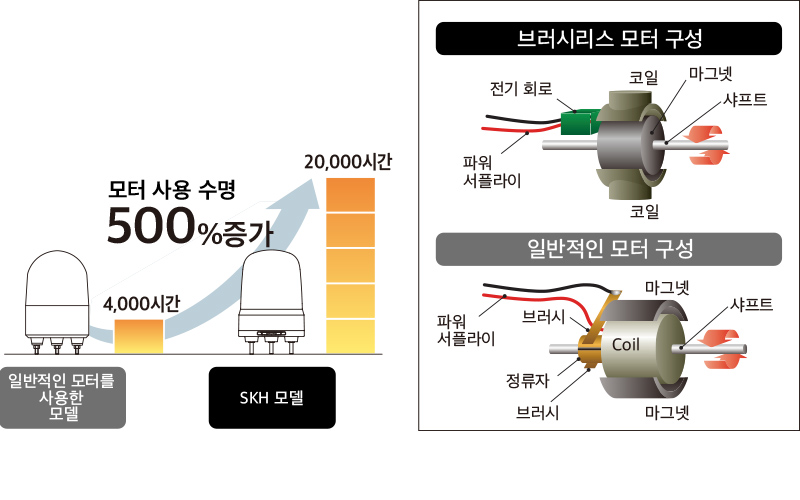

SK 제품에는 일반적인 모터 대비 발열이 적으며 사용 수명이 더욱 긴 브러시리스 모터가 장착됩니다. 리플렉터의 베이스에 위치한 강철 볼 베어링은 장기적인 마모를 크게 낮추고 리플렉터가 조용하게 회전하도록 설계됩니다.

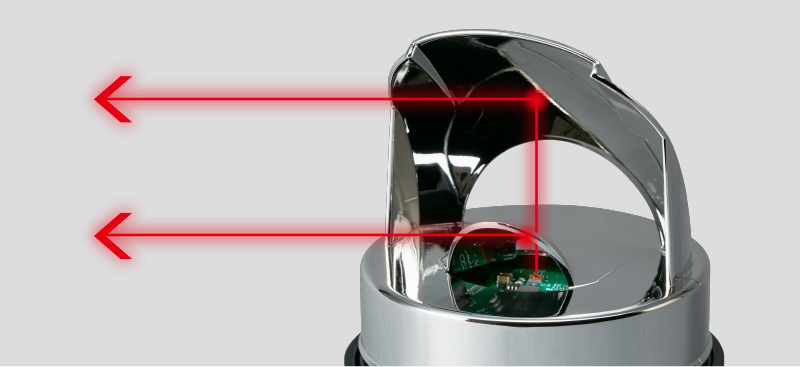

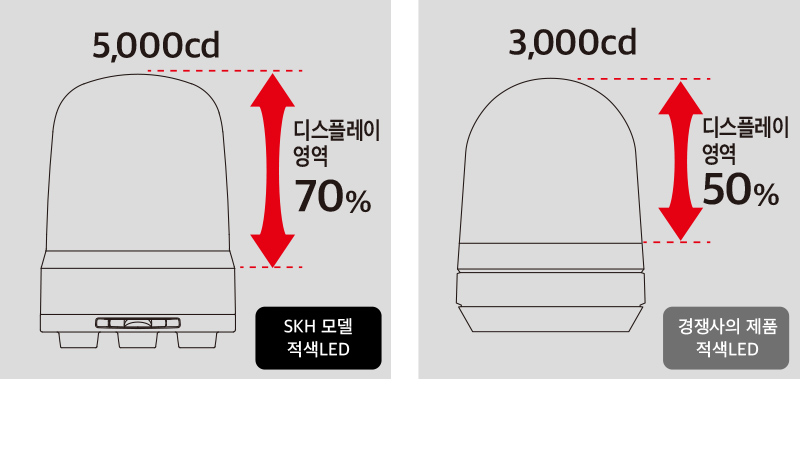

새로 개발한 듀얼-리플렉터는 LED 조명을 효율적으로 분산하여 균일한 조명 출력을 제공합니다. 조명 방출 표면은 최대의 가시도와 효율적인 비주얼 신호를 제공하도록 설계되었습니다.
제품 적용 사례

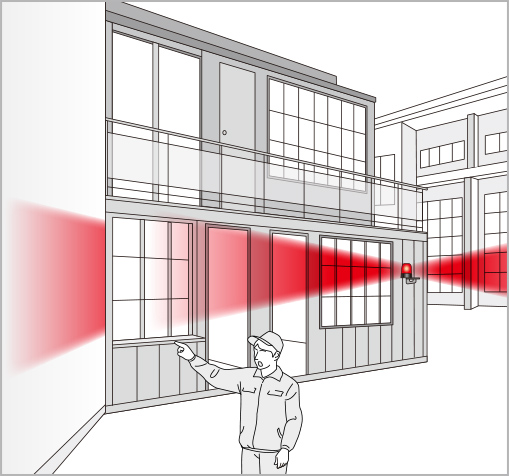

SK 제품의 독특한 조명 회전 기능은 비상 상황에서 효율적인 비주얼 신호 제공에 적합합니다.

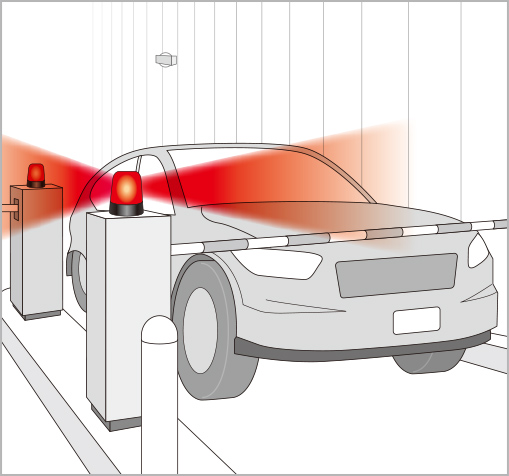

SK 제품의 LED는 사용 수명이 길기 때문에 주차장 관리인이 부재한 24시간 주차장 업종에서 "항상 작동"하는 경고등 목적으로 사용합니다.

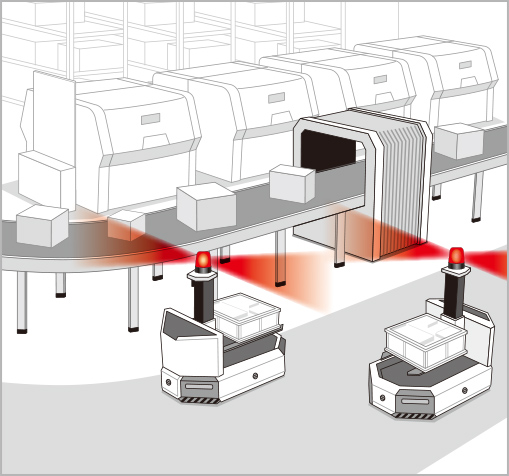

이 AGV에 설치된 SK 제품은 이동 중 밝게 회전하는 표시를 주변에 제공하므로 운반체의 경로에 사람이 들어오는 경우에 사고를 방지할 수 있습니다.
취급 설명서/사양/외관 치수
