표시등
SL08/SL10/SL15

  • 접점제어
  • Φ80/Φ100/Φ150
  • 표시등
  • 점등
  • 점멸
  • 플래시
  • 알람 (알람 사양이 있는 SL08/SL10만 해당)
  • 86dB(SL08)
  • 88dB(SL10)
  • 실내
  • 실외
  • IP23
  • IP65
  • IP66

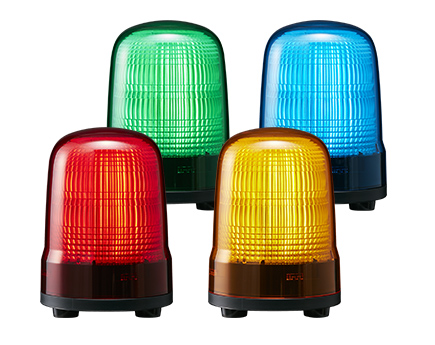

  • 적색
  • 황색
  • 녹색
  • 청색
  • 표시등 SL08/SL10/SL15
  • 완벽한 가시성

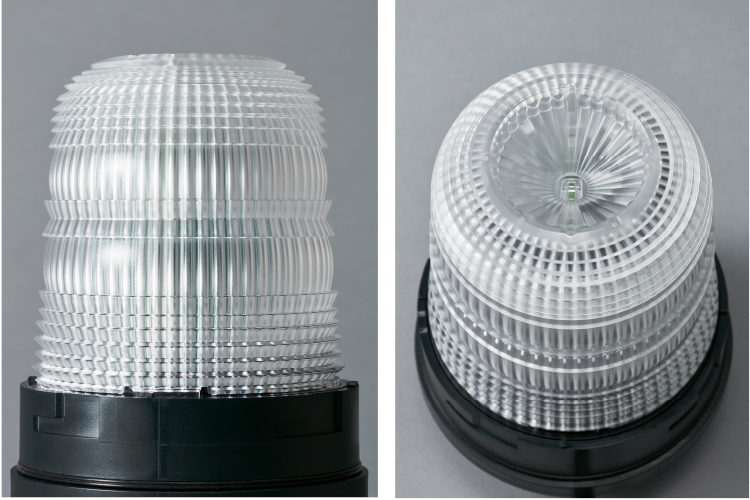

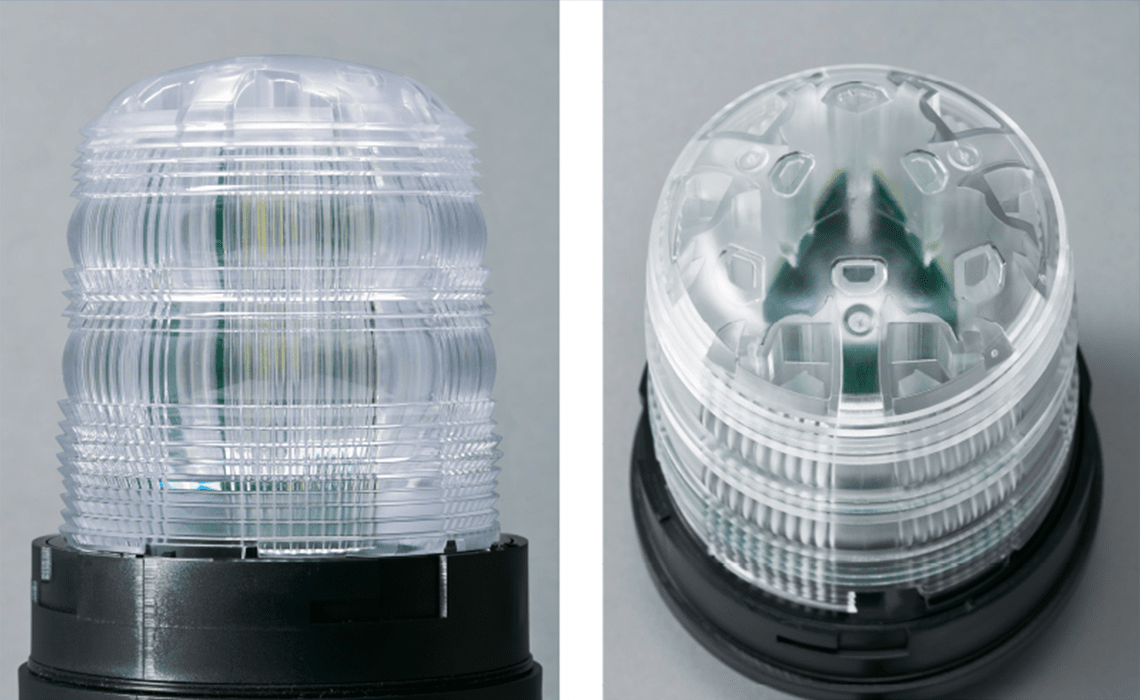

    새로 개발된 프레넬 렌즈는 조명이 상단을 포함한 전구의 모든 표면으로부터주변으로 균일하게 확산되는 특성을 갖습니다.

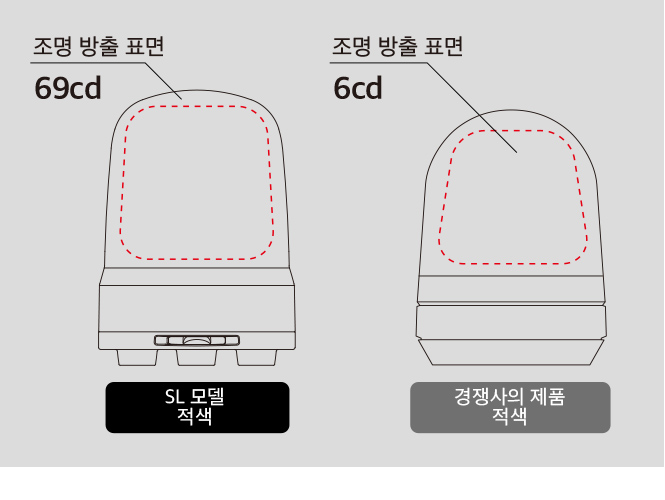

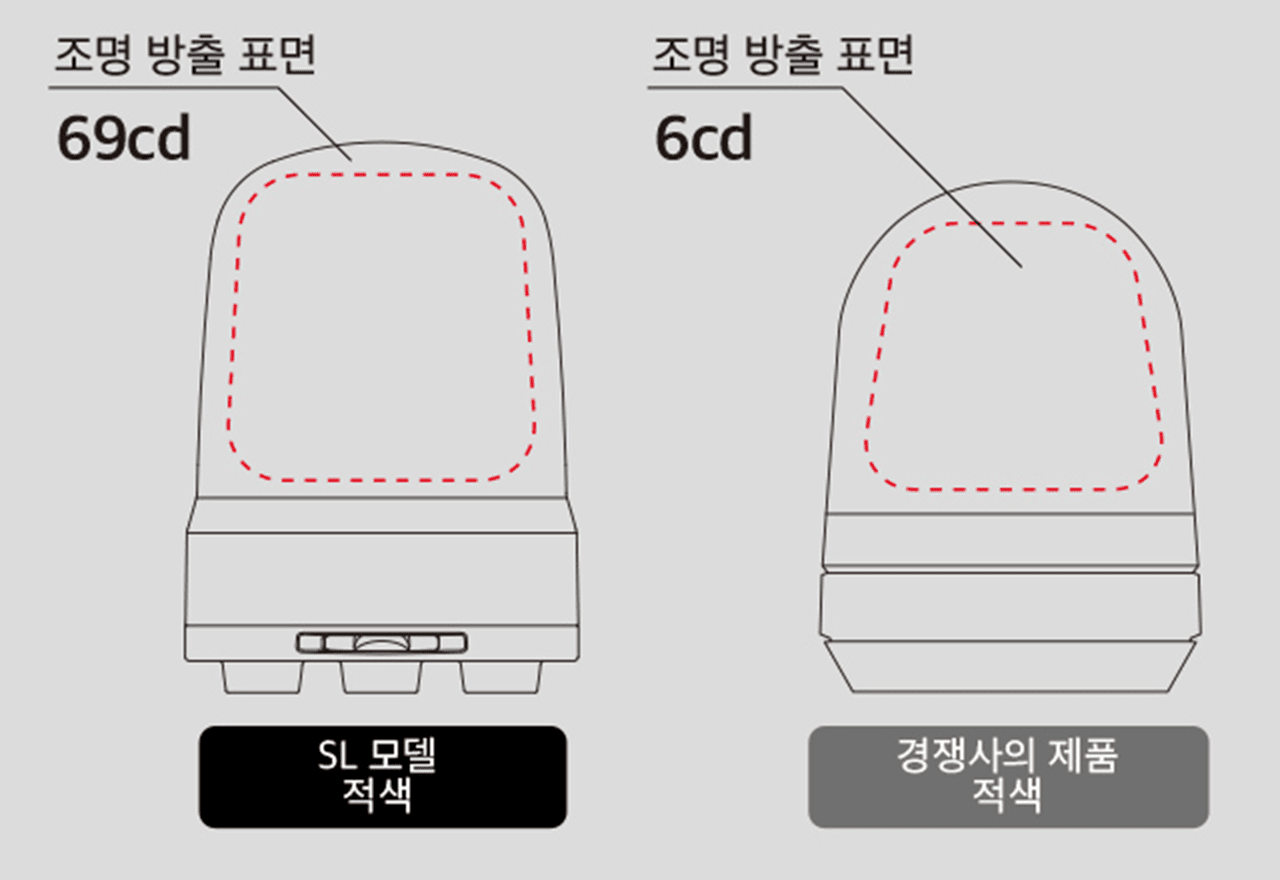

    동경쟁사와 비교할 때, SL 제품은 5배의 광도를 제공하여 조명 방출 표면이 매우 넓습니다.
  • 간편한 마운팅

    IP66 등급 (KT 타입)

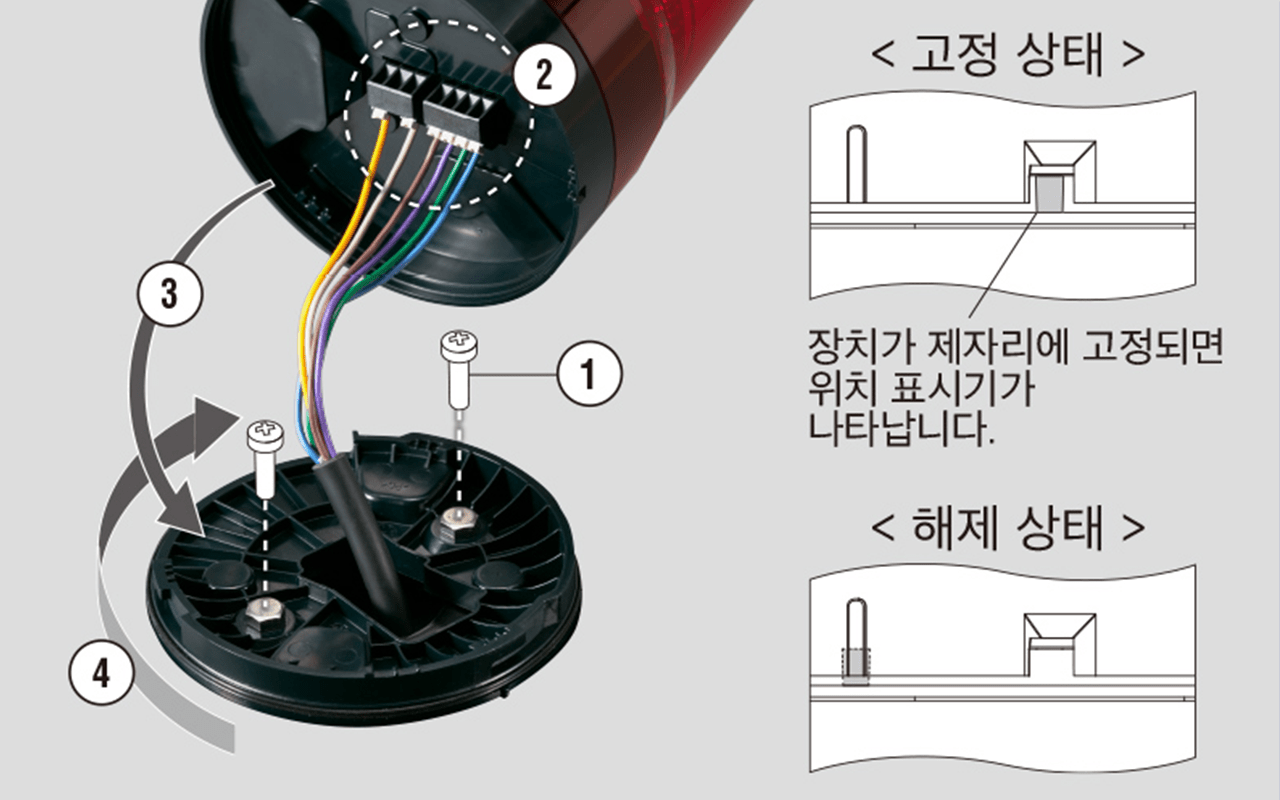

    (1) 마운팅 브래킷에 돌려서 고정합니다.
    (2) 푸시-인 터미널 블록에 와이어를 연결합니다.
    (3) 마운팅 브래킷 위에 바디를 장착합니다.
    (4) 제자리에 고정합니다.

빛의 패턴

»[비디오] SL 시리즈 3 패턴 라이트를 보려면 여기를 클릭하십시오.

제품 적용 사례

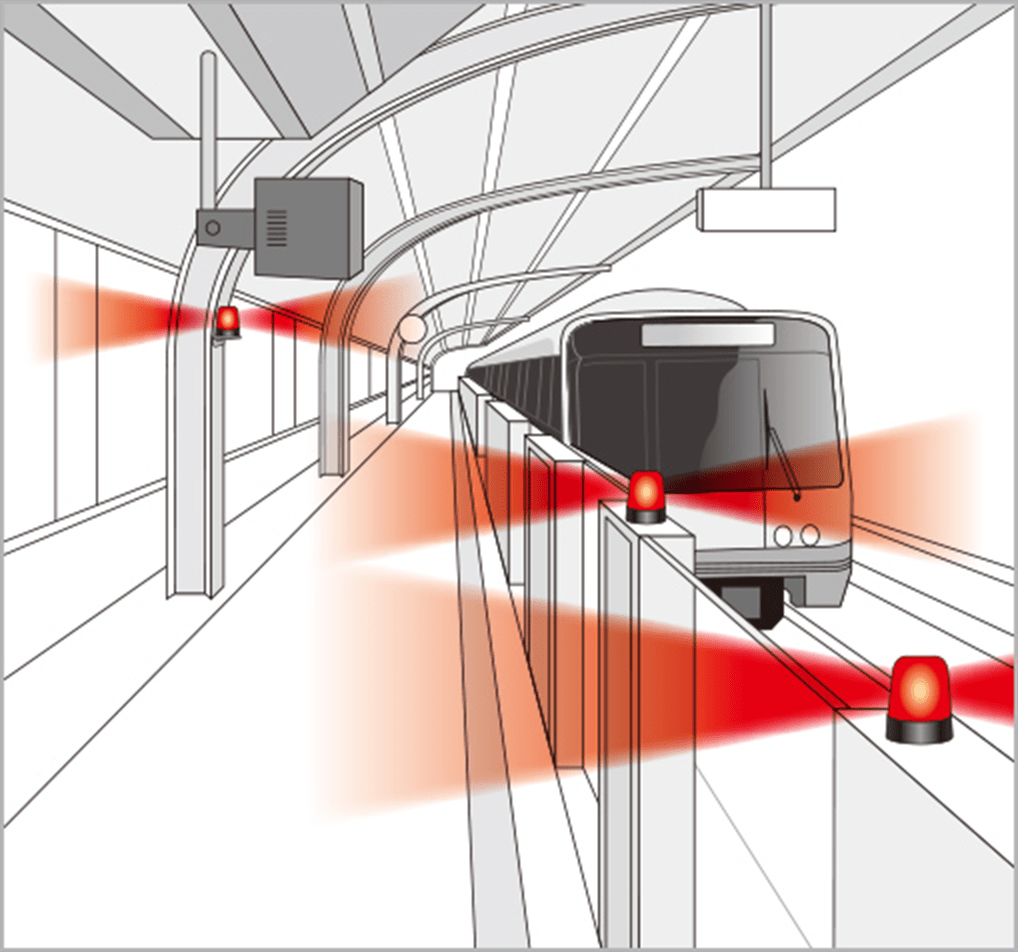

기차역에서 SL 제품의 플래시 라이트와 음향 조합을 사용하여 플랫폼에 있는 사람들에게 기차가 진입한다는 경고를 제공합니다.

제어판의 SL 제품은 연속, 점멸, 트리플 플래싱 조명이 교대로 작동하여 각각 정상, 경고, 위험 조건을 표시합니다.

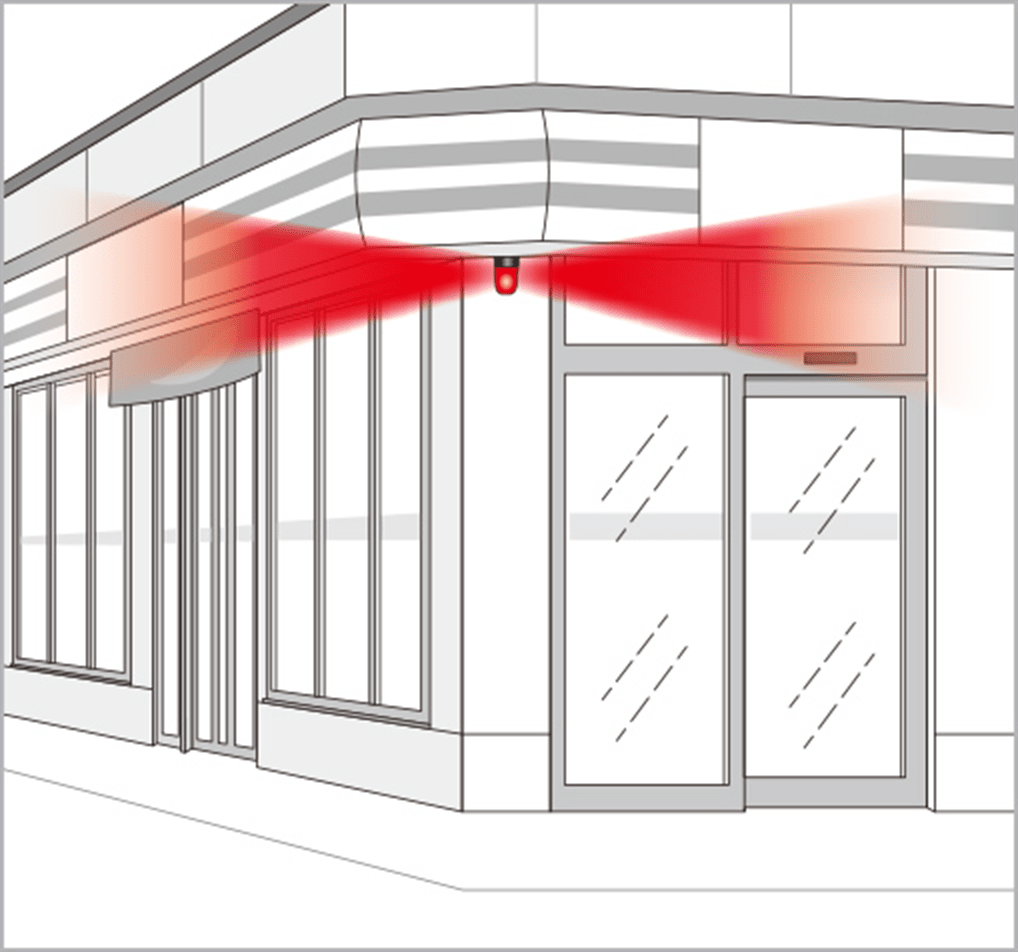

매점의 천장 부위에 SL 제품을 장착하여 멀리 떨어진 곳에서도 볼 수 있는 플래시 라이트를 사용하여 비상 상황을 표시합니다.

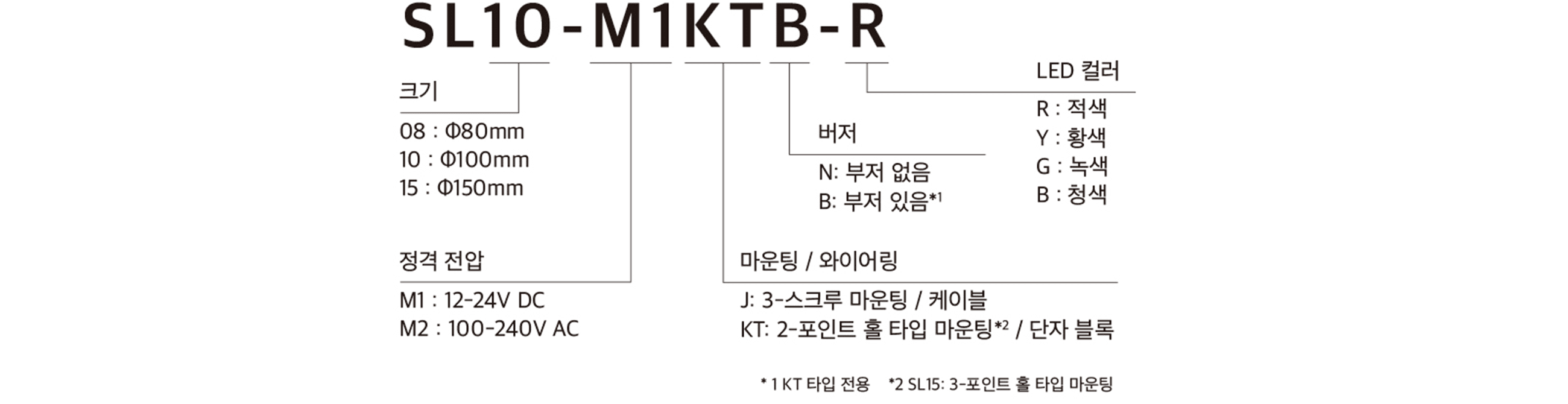

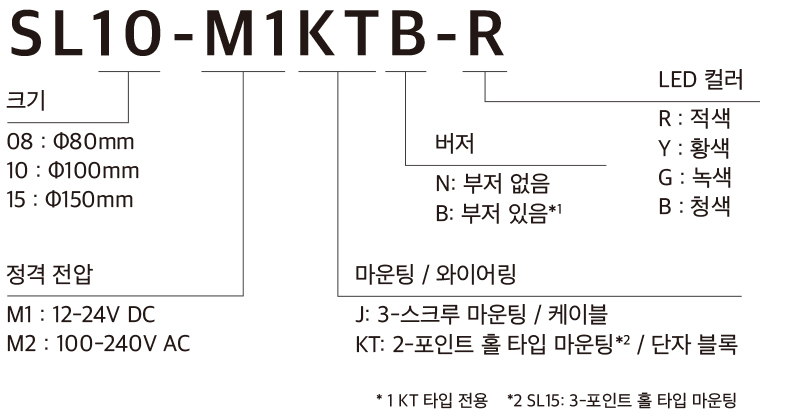

모델 코드
