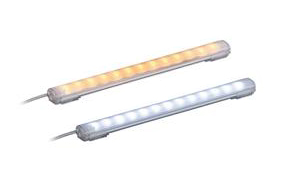

산업용 LED 작업등
5700K의 색온도, ON-OFF 스위치를 갖춘 24V DC 범위 내에서 작동합니다. 워크스테이션, 기계, 제어 캐비닛에 이상적입니다.
- LED 조명
- DC Type 사용 가능
- 내장 ON - OFF 스위치

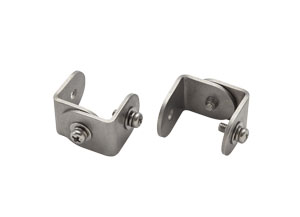

- 표준 장착 브래킷 포함
- EN, UL, KC(한국 적합성) 표준을 준수

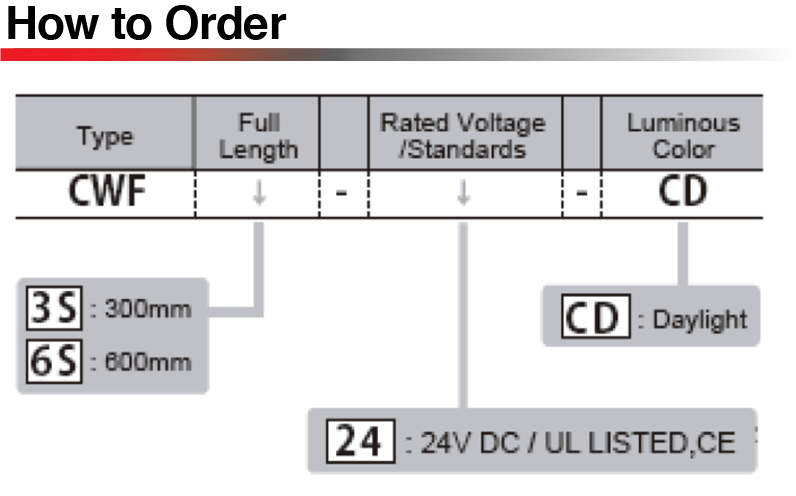

- 300mm, 600mm의 두 가지 길이로 사용 가능
취급 설명서/사양/외관 치수
(*)이 사이트의 데이터 다운로드 서비스는 다음 ""에 동의 한 것으로 간주됩니다.
(*)이 사이트의 데이터 다운로드 서비스는 다음 ""에 동의 한 것으로 간주됩니다.
2D CAD / 3D CAD
